Aston Martin DB9 (2004-2012) - Harness, Boot

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
8G4314A227AB HARNESS ASSY BOOT LID COUPE $151.85 To Order
7G4314A227CB BOOT LID ASSY COUPE AM/FM & TMC $518.34 To Order
91987 HARNESS ASSY BOOT LID COUPE Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G4318C951HB Media Oriented System transport (MOST), Service Loop $21.57 To Order
Photo Part No Description Price (each) Stock
4G4314A227GA HARNESS ASSEMBLY FEDERAL NUMBER PLATE LAMP STUB $55.66 To Order
Photo Part No Description Price (each) Stock
4G4314405AE BOOT HARNESS COUPE $3,152.66 To Order
Photo Part No Description Price (each) Stock
4G4314A280FC Earth Braid, Antenna Module $44.57 To Order
Photo Part No Description Price (each) Stock
4G4314A227FA Harness Assembly Federal Number plate Lamp Link $8.97 To Order
Photo Part No Description Price (each) Stock
8G4314A227BB HARNESS ASSY BOOT LID CONVERTIBLE $476.60 To Order
6G4314A227DB BOOT LID ASSY CONVERTIBLE AM/FM & TMC $1,316.50 To Order
6G4314A227BB HARNESS ASSY BOOT LID CONVERTIBLE $1,764.59 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
4G4314405CC CONVERTIBLE ROOF HARNESS $461.64 To Order
Photo Part No Description Price (each) Stock
4G4314A227GA HARNESS ASSEMBLY FEDERAL NUMBER PLATE LAMP STUB $55.66 To Order
Photo Part No Description Price (each) Stock
4G4314A227FA Harness Assembly Federal Number plate Lamp Link $8.97 To Order
Photo Part No Description Price (each) Stock
6G4314405BA BOOT HARNESS CONVERTIBLE $1,194.50 To Order
4G4314405BF BOOT HARNESS CONVERTIBLE $4,405.83 To Order
7G4314405BC BOOT HARNESS- CONVERTIBLE $3,574.14 To Order
Photo Part No Description Price (each) Stock
4G4314A280FC Earth Braid, Antenna Module $44.57 To Order
Photo Part No Description Price (each) Stock
6G339137LA TMC LINK HARNESS $95.97 To Order
4G433710659 TONNEAU LID LOCK RELAY 20A MICRO $4.62 To Order
View All

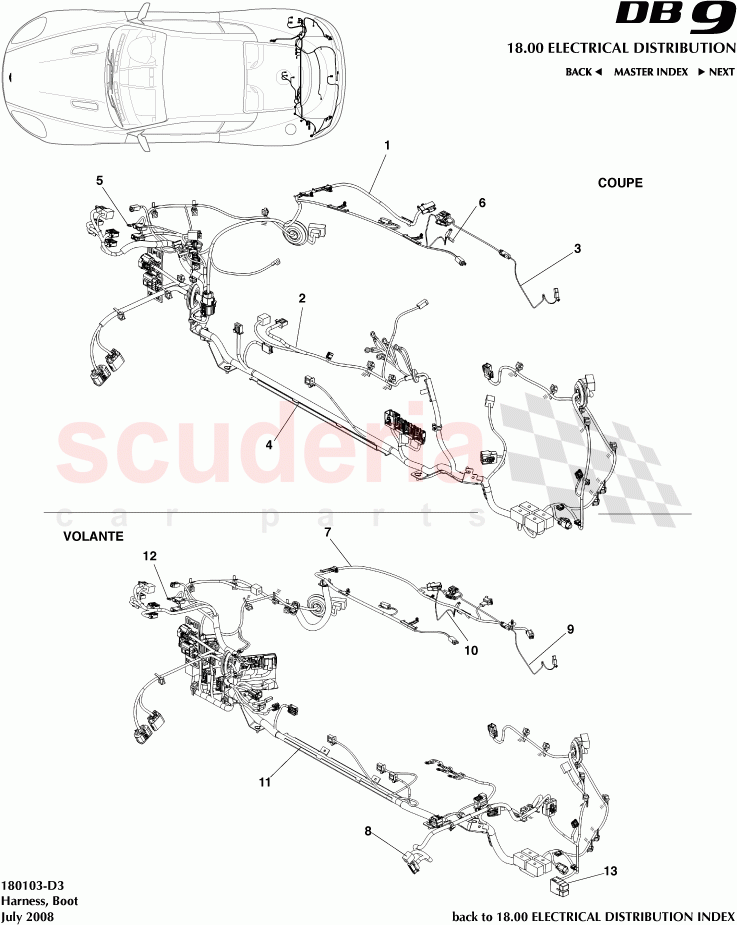

Harness, Boot of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 8G4314A227AB
HARNESS ASSY BOOT LID COUPE
08MY From (V) A09110 		$151.85 1
1 7G4314A227CB
BOOT LID ASSY COUPE AM/FM & TMC
07MY 		$518.34 1
1 91987
HARNESS ASSY BOOT LID COUPE
07MY 		- 1 Enquire
1 4G4314A227CC
BOOT LID ASSY COUPE AM/FM & TMC 		$172.39 1
1 4G4314A227AE
HARNESS ASSY BOOT LID COUPE 		$146.89 1
2 4G4318C951HB
Media Oriented System transport (MOST), Service Loop 		$21.57 1
3 4G4314A227GA
HARNESS ASSEMBLY FEDERAL NUMBER PLATE LAMP STUB 		$55.66 1
4 4G4314405AE
BOOT HARNESS COUPE 		$3,152.66 1
5 4G4314A280FC
Earth Braid, Antenna Module 		$44.57 1
6 4G4314A227FA
Harness Assembly Federal Number plate Lamp Link 		$8.97 1
7 8G4314A227BB
HARNESS ASSY BOOT LID CONVERTIBLE
08MY From (V) A09110 		$476.60 1
7 6G4314A227DB
BOOT LID ASSY CONVERTIBLE AM/FM & TMC
07MY 		$1,316.50 1
7 6G4314A227BB
HARNESS ASSY BOOT LID CONVERTIBLE
07MY 		$1,764.59 1
7 4G4314A227DC
BOOT LID ASSY CONVERTIBLE AM/FM & TMC 		$1,370.74 1
8 4G4314405CC
CONVERTIBLE ROOF HARNESS
07MY 		$461.64 1
9 4G4314A227GA
HARNESS ASSEMBLY FEDERAL NUMBER PLATE LAMP STUB 		$55.66 1
10 4G4314A227FA
Harness Assembly Federal Number plate Lamp Link 		$8.97 1
11 6G4314405BA
BOOT HARNESS CONVERTIBLE
From (V)(6.5MY) 		$1,194.50 1
11 4G4314405BF
BOOT HARNESS CONVERTIBLE
Up to (V) 		$4,405.83 1
11 7G4314405BC
BOOT HARNESS- CONVERTIBLE
07MY 		$3,574.14 1
12 4G4314A280FC
Earth Braid, Antenna Module 		$44.57 1
13 6G339137LA
TMC LINK HARNESS
08MY From (V) A09110 		$95.97 1
13 4G433710659
TONNEAU LID LOCK RELAY 20A MICRO 		$4.62 2
