Find Your Part

View All

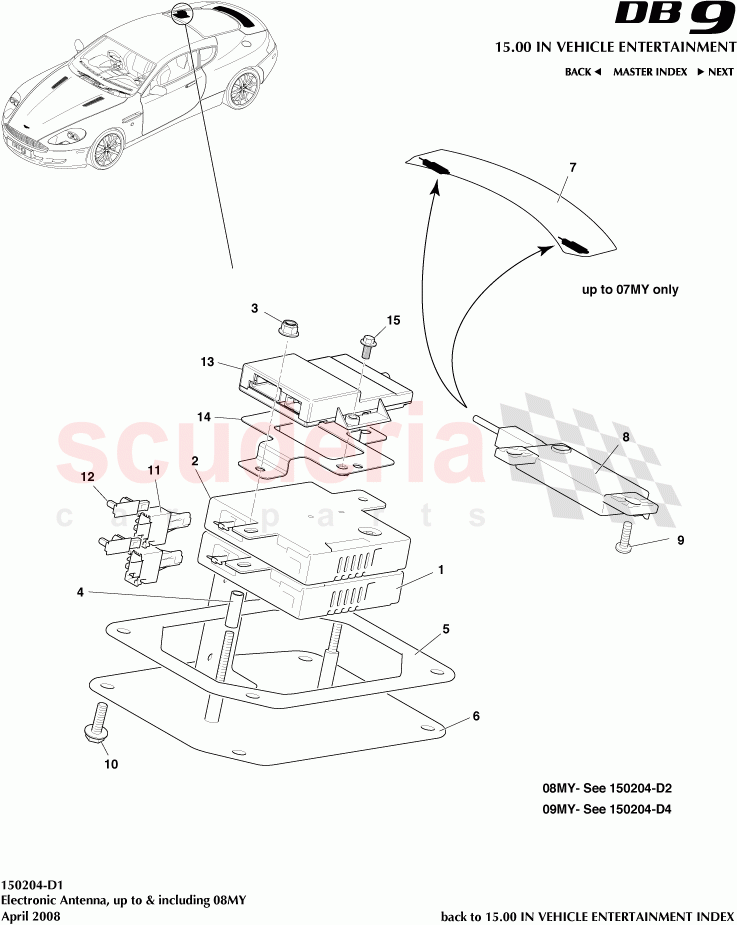

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	6G3314D417AA	AM/FM TUNER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4318K833AA	SPACER ALUMINIUM 9.5 X 7 X 25 GRD 6082	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319A070CA	Gasket, Blanking Plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4318K876DF	TUNER BASE PLATE COUPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4318C897AC	ANTENNA FILM AM/FM1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4318C847AA	Antenna Amplifier (Am/Fm) (FM2 TMC)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707613	SCREW M4.2 X 13 FLANGE BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700607	Screw Hex Flange Head M6 x 16mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4318C951HB	Media Oriented System transport (MOST), Service Loop	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G430110042	Retainer, Connector	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433710688	GPS TUNER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4310E887BD	GPS TUNER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697320	SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G433710474	TMC TUNER	4G433710474 TMC TUNER	-	1	Enquire
1	9G433711005	SATELLITE RADIOTUNER	9G433711005 SATELLITE RADIOTUNER	-	1	Enquire
2	6G3314D417AA	AM/FM TUNER	6G3314D417AA AM/FM TUNER From May 07	-	1	Enquire
3	703164	M6 LOCKNUT FLANGE NY LON CHROM FREE	703164 M6 LOCKNUT FLANGE NY LON CHROM FREE	-	2	Enquire
4	4G4318K833AA	SPACER ALUMINIUM 9.5 X 7 X 25 GRD 6082	4G4318K833AA SPACER ALUMINIUM 9.5 X 7 X 25 GRD 6082	-	2	Enquire
5	4G4319A070CA	Gasket, Blanking Plate	4G4319A070CA Gasket, Blanking Plate	-	1	Enquire
6	4G4318K876DF	TUNER BASE PLATE COUPE	4G4318K876DF TUNER BASE PLATE COUPE	-	1	Enquire
7	4G4318C897AC	ANTENNA FILM AM/FM1	4G4318C897AC ANTENNA FILM AM/FM1	-	1	Enquire
8	9G4318C847AA	Antenna Amplifier (Am/Fm) (FM2 TMC)	9G4318C847AA Antenna Amplifier (Am/Fm) (FM2 TMC)	-	2	Enquire
9	707613	SCREW M4.2 X 13 FLANGE BLACK	707613 SCREW M4.2 X 13 FLANGE BLACK	-	4	Enquire
10	700607	Screw Hex Flange Head M6 x 16mm	700607 Screw Hex Flange Head M6 x 16mm	-	4	Enquire
11	4G4318C951HB	Media Oriented System transport (MOST), Service Loop	4G4318C951HB Media Oriented System transport (MOST), Service Loop	-	2	Enquire
12	6G430110042	Retainer, Connector	6G430110042 Retainer, Connector	-	2	Enquire
13	4G433710688	GPS TUNER	4G433710688 GPS TUNER	-	1	Enquire
14	4G4310E887BD	GPS TUNER BRACKET	4G4310E887BD GPS TUNER BRACKET	-	1	Enquire
15	697320	SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8	697320 SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8	-	2	Enquire
