Harness, Body of Aston Martin Aston Martin DB9 (2004-2012)

View All

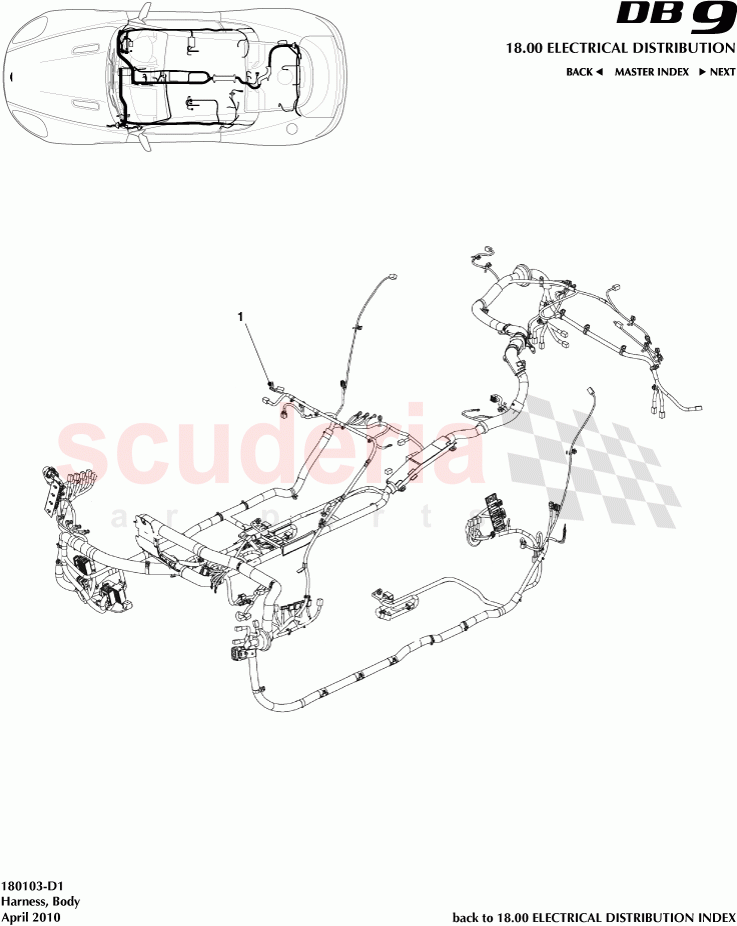

Aston Martin DB9 (2004-2012) - Harness, Body

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AG4314A005CB	RH CONVERTIBLE CABIN HARNESS ALPINE / NO ADS	Enquire	To Order
	AG4314A005DB	LH CONVERTIBLE CABIN HARNESS	Enquire	To Order
	AG4314A005AB	HARNESS ASSY CABIN RHD ALPINE / NO ADS	Enquire	To Order

...and 42 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AG4314A005CB	RH CONVERTIBLE CABIN HARNESS ALPINE / NO ADS	AG4314A005CB RH CONVERTIBLE CABIN HARNESS ALPINE / NO ADS RHD, Alpine, No ADS 10.7MY	-	1	Enquire
1	AG4314A005DB	LH CONVERTIBLE CABIN HARNESS	AG4314A005DB LH CONVERTIBLE CABIN HARNESS LHD, Alpine, No ADS 10.7MY	-	1	Enquire
1	AG4314A005AB	HARNESS ASSY CABIN RHD ALPINE / NO ADS	AG4314A005AB HARNESS ASSY CABIN RHD ALPINE / NO ADS RHD, Alpine, No ADS 10.7MY	-	1	Enquire
1	AG4314A005BB	HARNESS ASSY CABIN LHD ALPINE/ NO ADS	AG4314A005BB HARNESS ASSY CABIN LHD ALPINE/ NO ADS LHD, Alpine, No ADS 10.7MY	-	1	Enquire
1	8G4314A005CC	RH CONVERTIBLE CABIN HARNESS	8G4314A005CC RH CONVERTIBLE CABIN HARNESS RHD 08MY From (V) A09110	-	1	Enquire
1	8G4314A005DC	LHD CONV CABIN HARNESS ASSY	8G4314A005DC LHD CONV CABIN HARNESS ASSY LHD 08MY From (V) A09110	-	1	Enquire
1	8G4314A005AC	HARNESS ASSY CABIN RHD	8G4314A005AC HARNESS ASSY CABIN RHD RHD 08MY From (V) A09110	-	1	Enquire
1	8G4314A005BC	HARNESS ASSY CABIN LHD	8G4314A005BC HARNESS ASSY CABIN LHD LHD 08MY From (V) A09110	-	1	Enquire
1	AG4314A005GB	RH CONVERTIBLE CABIN HARNESS B&O/ NON ADS	AG4314A005GB RH CONVERTIBLE CABIN HARNESS B&O/ NON ADS RHD, B&O, No ADS 10.7MY	-	1	Enquire
1	AG4314A005LB	RH CONVERTIBLE CABIN HARNESS ALPINE + ADS	AG4314A005LB RH CONVERTIBLE CABIN HARNESS ALPINE + ADS RHD, Alpine, ADS 10.7MY	-	1	Enquire
1	AG4314A005HB	LH CONVERTIBLE CABIN HARNESS B+O / NO ADS	AG4314A005HB LH CONVERTIBLE CABIN HARNESS B+O / NO ADS LHD, B&O, No ADS 10.7MY	-	1	Enquire
1	AG4314A005MB	LH CONVERTIBLE CABIN HARNESS ALPINE + ADS	AG4314A005MB LH CONVERTIBLE CABIN HARNESS ALPINE + ADS LHD, Alpine, ADS 10.7MY	-	1	Enquire
1	AG4314A005EB	HARNESS ASSY CABIN RHD B&O NON ADS	AG4314A005EB HARNESS ASSY CABIN RHD B&O NON ADS RHD, B&O, No ADS 10.7MY	-	1	Enquire
1	AG4314A005JB	HARNESS ASSY CABIN RHD ALPINE & ADS	AG4314A005JB HARNESS ASSY CABIN RHD ALPINE & ADS RHD, Alpine, ADS 10.7MY	-	1	Enquire
1	AG4314A005FB	HARNESS ASSY CABIN LHD B&O / NON ADS	AG4314A005FB HARNESS ASSY CABIN LHD B&O / NON ADS LHD, B&O, No ADS 10.7MY	-	1	Enquire
1	AG4314A005KB	HARNESS ASSY CABIN LHD ALPINE &ADS	AG4314A005KB HARNESS ASSY CABIN LHD ALPINE &ADS LHD, Alpine, ADS 10.7MY	-	1	Enquire
1	BG4314A005DC	Harness assy, cabin, VOLANTE	BG4314A005DC Harness assy, cabin, VOLANTE RHD, Alpine, ADS 11MY	-	1	Enquire
1	BG4314A005CC	Harness assy, cabin, VOLANTE	BG4314A005CC Harness assy, cabin, VOLANTE LHD, Alpine, ADS 11MY	-	1	Enquire
1	BG4314A005BC	Harness assy, cabin, COUPE	BG4314A005BC Harness assy, cabin, COUPE RHD, Alpine, ADS 11MY	-	1	Enquire
1	BG4314A005AC	Harness assy, cabin, COUPE	BG4314A005AC Harness assy, cabin, COUPE LHD, Alpine, ADS 11MY	-	1	Enquire
1	AG4314A005QB	Harness assy, cabin, VOLANTE	AG4314A005QB Harness assy, cabin, VOLANTE RHD, B&O, ADS 10.7MY	-	1	Enquire
1	AG4314A005RB	Harness assy, cabin, VOLANTE	AG4314A005RB Harness assy, cabin, VOLANTE LHD, B&O, ADS 10.7MY	-	1	Enquire
1	AG4314A005NB	HARNESS ASSY CABIN RHD B&O + ADS	AG4314A005NB HARNESS ASSY CABIN RHD B&O + ADS RHD, B&O, ADS 10.7MY	-	1	Enquire
1	AG4314A005PB	HARNESS ASSY CABIN LHD B&O + ADS	AG4314A005PB HARNESS ASSY CABIN LHD B&O + ADS LHD, B&O, ADS 10.7MY	-	1	Enquire
1	BG4314A005HC	Harness assy, cabin, VOLANTE	BG4314A005HC Harness assy, cabin, VOLANTE RHD, B&O, ADS 11MY	-	1	Enquire
1	BG4314A005GC	Harness assy, cabin, VOLANTE	BG4314A005GC Harness assy, cabin, VOLANTE LHD, B&O, ADS 11MY	-	1	Enquire
1	BG4314A005FC	Harness assy, cabin, COUPE	BG4314A005FC Harness assy, cabin, COUPE RHD, B&O, ADS 11MY	-	1	Enquire
1	BG4314A005EC	Harness assy, cabin, COUPE	BG4314A005EC Harness assy, cabin, COUPE LHD, B&O, ADS 11MY	-	1	Enquire
1	9G4314A005GA	Harness assy, cabin, VOLANTE	9G4314A005GA Harness assy, cabin, VOLANTE RHD 9.5MY	-	1	Enquire
1	9G4314A005HA	Harness assy, cabin, VOLANTE	9G4314A005HA Harness assy, cabin, VOLANTE LHD 9.5MY	-	1	Enquire
1	9G4314A005EC	HARNESS ASSY CABIN RHD	9G4314A005EC HARNESS ASSY CABIN RHD RHD 9.5MY	-	1	Enquire
1	9G4314A005FC	HARNESS ASSY CABIN LHD	9G4314A005FC HARNESS ASSY CABIN LHD LHD 9.5MY	-	1	Enquire
1	7G4314A005CE	RH CONVERTIBLE CABIN HARNESS	7G4314A005CE RH CONVERTIBLE CABIN HARNESS RHD 07MY	-	1	Enquire
1	9G4314A005CC	RH CONVERTIBLE CABIN HARNESS	9G4314A005CC RH CONVERTIBLE CABIN HARNESS RHD 09MY	-	1	Enquire
1	91976	LH CONVERTIBLE CABIN HARNESS	91976 LH CONVERTIBLE CABIN HARNESS LHD 07MY	-	1	Enquire
1	9G4314A005DC	LH CONVERTIBLE CABIN HARNESS	9G4314A005DC LH CONVERTIBLE CABIN HARNESS LHD 09MY	-	1	Enquire
1	7G4314A005AE	RHD COUPE CABIN HARNESS	7G4314A005AE RHD COUPE CABIN HARNESS RHD 07MY	-	1	Enquire
1	9G4314A005AF	HARNESS ASSY CABIN RHD	9G4314A005AF HARNESS ASSY CABIN RHD RHD 09MY	-	1	Enquire
1	7G4314A005BE	HARNESS ASSY CABIN LHD	7G4314A005BE HARNESS ASSY CABIN LHD LHD 07MY	-	1	Enquire
1	9G4314A005BF	HARNESS ASSY CABIN LHD	9G4314A005BF HARNESS ASSY CABIN LHD LHD 09MY	-	1	Enquire
1	4G4314284AB	REAR QUARTER LIGHT CONVERTIBLE LINK HARNESS	4G4314284AB REAR QUARTER LIGHT CONVERTIBLE LINK HARNESS Volante	-	1	Enquire
1	6G4314A005HA	RH CONVERTIBLE CABIN HARNESS	6G4314A005HA RH CONVERTIBLE CABIN HARNESS RHD	-	1	Enquire
1	6G4314A005FA	LH CONVERTIBLE CABIN HARNESS	6G4314A005FA LH CONVERTIBLE CABIN HARNESS LHD	-	1	Enquire
1	4G4314A005EA	HARNESS ASSY CABIN RHD	4G4314A005EA HARNESS ASSY CABIN RHD RHD	-	1	Enquire
1	4G4314A005FA	HARNESS ASSY CABIN LHD	4G4314A005FA HARNESS ASSY CABIN LHD LHD	-	1	Enquire
