Speaker Assembly (Volante) (2007) of Aston Martin Aston Martin DB9 (2004-2012)

View All

Aston Martin DB9 (2004-2012) - Speaker Assembly (Volante) (2007)

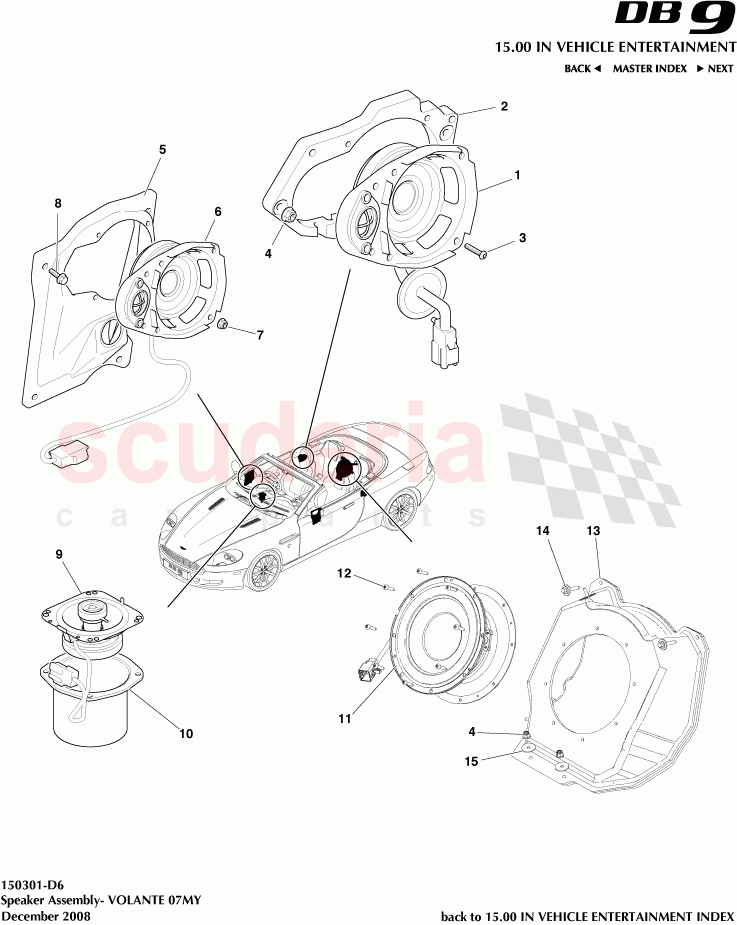

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4G4318808JD	VOLANTE SPEAKER RH AM803	Enquire	To Order
	4G4318808KD	LINN VOLANTE SPEAKER ASSY LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319A070AE	INFILL GASKET BRACKET	Enquire	To Order
	4G4319A071AE	INFILL GASKET BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702082	Bolt, Self Locking, M5 x 16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703163	Nut, M6, Hex Flange Head, Locking	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4318808EC	SPEAKER MOUNTING PLATE RH	Enquire	To Order
	4G4318808FC	SPEAKER MOUNTING PLATE LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4318808AA	LINN DOOR SPEAKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4318808BA	SPEAKER CENTRE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319A070BC	CNTR SPK ENC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G4318808GC	PREMIUM SUB WOOFER ENCLOSURE ASSY 10 COUPE	Enquire	To Order
	4G4318808HC	STANDARD SUBWOOFER ENCLOSURE ASSY 8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703171	Screw, M5 x 20, Torx Pan Hd	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319A070GA	SUB ENCLOSURE PREM WOOFER ASSY 10	Enquire	To Order
	4G4319A070HA	SUB ENCLOSURE BASE WOOFER ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703145	M6 x 30 WSHR HO BOLT ASSY CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43M2D318CA	SOUND DEADENING 240mm X 150mm	Enquire	To Order
	FD43E830667AB	WASHER 25MM X 6.4MM BLACK	Enquire	To Order
	4G43M2D318BA	SOUND DEADENING 360mm X 240mm	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	4G4318808JD	VOLANTE SPEAKER RH AM803	4G4318808JD VOLANTE SPEAKER RH AM803	-	1	Enquire
1	4G4318808KD	LINN VOLANTE SPEAKER ASSY LH	4G4318808KD LINN VOLANTE SPEAKER ASSY LH	-	1	Enquire
2	4G4319A070AE	INFILL GASKET BRACKET	4G4319A070AE INFILL GASKET BRACKET	-	1	Enquire
2	4G4319A071AE	INFILL GASKET BRACKET	4G4319A071AE INFILL GASKET BRACKET	-	1	Enquire
3	702082	Bolt, Self Locking, M5 x 16	702082 Bolt, Self Locking, M5 x 16	-	8	Enquire
4	703163	Nut, M6, Hex Flange Head, Locking	703163 Nut, M6, Hex Flange Head, Locking	-	4	Enquire
5	4G4318808EC	SPEAKER MOUNTING PLATE RH	4G4318808EC SPEAKER MOUNTING PLATE RH	-	1	Enquire
5	4G4318808FC	SPEAKER MOUNTING PLATE LH	4G4318808FC SPEAKER MOUNTING PLATE LH	-	1	Enquire
6	4G4318808AA	LINN DOOR SPEAKER	4G4318808AA LINN DOOR SPEAKER	-	1	Enquire
7	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	8	Enquire
8	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	8	Enquire
9	4G4318808BA	SPEAKER CENTRE	4G4318808BA SPEAKER CENTRE	-	1	Enquire
10	4G4319A070BC	CNTR SPK ENC	4G4319A070BC CNTR SPK ENC Limbic 5.1	-	1	Enquire
11	6G4318808GC	PREMIUM SUB WOOFER ENCLOSURE ASSY 10 COUPE	6G4318808GC PREMIUM SUB WOOFER ENCLOSURE ASSY 10 COUPE	-	1	Enquire
11	4G4318808HC	STANDARD SUBWOOFER ENCLOSURE ASSY 8	4G4318808HC STANDARD SUBWOOFER ENCLOSURE ASSY 8	-	1	Enquire
12	703171	Screw, M5 x 20, Torx Pan Hd	703171 Screw, M5 x 20, Torx Pan Hd	-	8	Enquire
13	4G4319A070GA	SUB ENCLOSURE PREM WOOFER ASSY 10	4G4319A070GA SUB ENCLOSURE PREM WOOFER ASSY 10	-	1	Enquire
13	4G4319A070HA	SUB ENCLOSURE BASE WOOFER ASSY	4G4319A070HA SUB ENCLOSURE BASE WOOFER ASSY	-	1	Enquire
14	703145	M6 x 30 WSHR HO BOLT ASSY CHROME FREE	703145 M6 x 30 WSHR HO BOLT ASSY CHROME FREE	-	2	Enquire
15	4G43M2D318CA	SOUND DEADENING 240mm X 150mm	4G43M2D318CA SOUND DEADENING 240mm X 150mm	-	2	Enquire
15	FD43E830667AB	WASHER 25MM X 6.4MM BLACK	FD43E830667AB WASHER 25MM X 6.4MM BLACK	-	2	Enquire
15	4G43M2D318BA	SOUND DEADENING 360mm X 240mm	4G43M2D318BA SOUND DEADENING 360mm X 240mm	-	3	Enquire
15	4G43M2D318AA	SOUND DEADENING 650mm X 230mm	4G43M2D318AA SOUND DEADENING 650mm X 230mm	-	4	Enquire
