Air Con Lines Fittings (RHD) of Aston Martin Aston Martin DB9 (2004-2012)

View All

Aston Martin DB9 (2004-2012) - Air Con Lines Fittings (RHD)

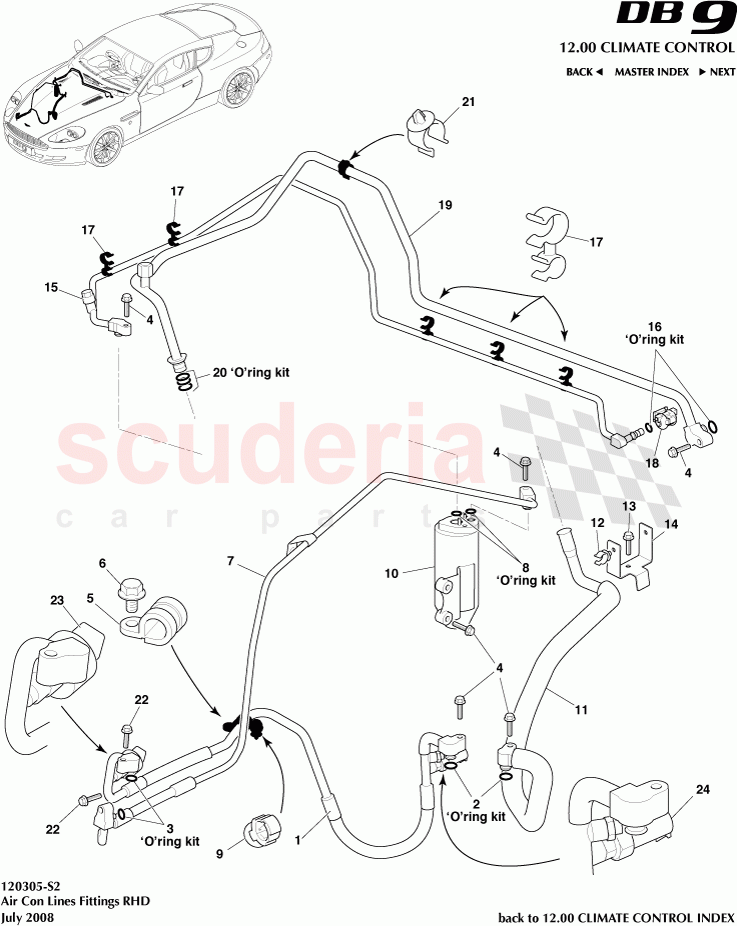

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AG4319972AA	Tube - Air Conditioning Compressor to Condenser	Enquire	IN STOCK
	AG4319972AA	Tube - Air Conditioning Compressor to Condenser	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G438910909PK	O-Ring Compressor (Pack of 2)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G438910910PK	O Rings-DB9 & V8 Condenser (Pack of 2)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703199	Bolt M6x30 HEX FLG Chrome Free	Enquire	IN STOCK
	703199	Bolt M6x30 HEX FLG Chrome Free	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	699634	P-Clip,13 x 15 x M6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	Enquire	IN STOCK
	703203	Screw M6 x 20 Heex Flange 8 Chrome Free	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AD4319D719AA	TUBE ASSY - COND TO R/DRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G438910908PK	O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	701180	Clip, 14 x 4, Push In	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4319E891AD	Air Conditioning Drier	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AG4319A705AA	Tube Assy, Evaporator Outlet	Enquire	To Order
	AG4319A705AA	Tube Assy, Evaporator Outlet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701181	Clip, 16 x 6.5 x 1.5-6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703151	Screw M6x16 Washer Hex HD Chrome Free	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G436147XAD	BRACKET - AIRCON / ELECTRICAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG4319835CA	Tube Assy, Receiver Drier to Evaporator	Enquire	IN STOCK
	AG4319835CA	Tube Assy, Receiver Drier to Evaporator	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G438910446PK	O RING-V8 EVAPORATOR PACK OF 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701182	Clip, Pipe Swivel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G434073AAA	CLAMP - LIQ	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG4319A705CA	Tube Assy, A/C Evaporator Outlet, Upper	Enquire	To Order
	AG4319A705CA	Tube Assy, A/C Evaporator Outlet, Upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701172	Clip, 16 x 2.8 - 3.3	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE	Enquire	IN STOCK
	703172PK	Screw M8 x 25 Pan Head (Pack of 10)	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R128910192	Switch, A/C High Pressure	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6L2419D594BA	Switch, AC, pressure cutoff	Enquire	To Order
	AG438911295	SW ASY-A/C PRES CTOF	Enquire	To Order
	4G43717B19AB	Air con refrigerant	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AG4319972AA	Tube - Air Conditioning Compressor to Condenser IN STOCK	AG4319972AA Tube - Air Conditioning Compressor to Condenser Up to 17/9/07 IN STOCK	-	1	Enquire
1	AG4319972AA	Tube - Air Conditioning Compressor to Condenser IN STOCK	AG4319972AA Tube - Air Conditioning Compressor to Condenser From 17/9/07 IN STOCK	-	1	Enquire
2	4G438910909PK	O-Ring Compressor (Pack of 2) IN STOCK	4G438910909PK O-Ring Compressor (Pack of 2) IN STOCK	-	1	Enquire
3	4G438910910PK	O Rings-DB9 & V8 Condenser (Pack of 2) IN STOCK	4G438910910PK O Rings-DB9 & V8 Condenser (Pack of 2) IN STOCK	-	1	Enquire
4	703199	Bolt M6x30 HEX FLG Chrome Free IN STOCK	703199 Bolt M6x30 HEX FLG Chrome Free 08MY From (V) A09110 IN STOCK	-	7	Enquire
4	703199	Bolt M6x30 HEX FLG Chrome Free IN STOCK	703199 Bolt M6x30 HEX FLG Chrome Free IN STOCK	-	7	Enquire
5	699634	P-Clip,13 x 15 x M6 IN STOCK	699634 P-Clip,13 x 15 x M6 IN STOCK	-	1	Enquire
6	703203	Screw M6 x 20 Heex Flange 8 Chrome Free IN STOCK	703203 Screw M6 x 20 Heex Flange 8 Chrome Free 08MY From (V) A09110 IN STOCK	-	1	Enquire
6	703203	Screw M6 x 20 Heex Flange 8 Chrome Free IN STOCK	703203 Screw M6 x 20 Heex Flange 8 Chrome Free 07MY IN STOCK	-	1	Enquire
7	AD4319D719AA	TUBE ASSY - COND TO R/DRIER	AD4319D719AA TUBE ASSY - COND TO R/DRIER	-	1	Enquire
8	4G438910908PK	O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2) IN STOCK	4G438910908PK O RINGS-DB9 & V8 RECEIVER/DRIER (PACK OF 2) IN STOCK	-	1	Enquire
9	701180	Clip, 14 x 4, Push In	701180 Clip, 14 x 4, Push In	-	3	Enquire
10	4G4319E891AD	Air Conditioning Drier IN STOCK	4G4319E891AD Air Conditioning Drier IN STOCK	-	1	Enquire
11	AG4319A705AA	Tube Assy, Evaporator Outlet	AG4319A705AA Tube Assy, Evaporator Outlet 08MY From (V) A09110	-	1	Enquire
11	AG4319A705AA	Tube Assy, Evaporator Outlet	AG4319A705AA Tube Assy, Evaporator Outlet 07MY	-	1	Enquire
12	701181	Clip, 16 x 6.5 x 1.5-6 IN STOCK	701181 Clip, 16 x 6.5 x 1.5-6 IN STOCK	-	2	Enquire
13	703151	Screw M6x16 Washer Hex HD Chrome Free IN STOCK	703151 Screw M6x16 Washer Hex HD Chrome Free IN STOCK	-	1	Enquire
14	4G436147XAD	BRACKET - AIRCON / ELECTRICAL	4G436147XAD BRACKET - AIRCON / ELECTRICAL	-	1	Enquire
15	AG4319835CA	Tube Assy, Receiver Drier to Evaporator IN STOCK	AG4319835CA Tube Assy, Receiver Drier to Evaporator 08MY From (V) A09110 IN STOCK	-	1	Enquire
15	AG4319835CA	Tube Assy, Receiver Drier to Evaporator IN STOCK	AG4319835CA Tube Assy, Receiver Drier to Evaporator 07MY IN STOCK	-	1	Enquire
16	6G438910446PK	O RING-V8 EVAPORATOR PACK OF 2	6G438910446PK O RING-V8 EVAPORATOR PACK OF 2	-	1	Enquire
17	701182	Clip, Pipe Swivel	701182 Clip, Pipe Swivel	-	5	Enquire
18	4G434073AAA	CLAMP - LIQ	4G434073AAA CLAMP - LIQ	-	1	Enquire
19	AG4319A705CA	Tube Assy, A/C Evaporator Outlet, Upper	AG4319A705CA Tube Assy, A/C Evaporator Outlet, Upper 08MY From (V) A09110	-	1	Enquire
19	AG4319A705CA	Tube Assy, A/C Evaporator Outlet, Upper	AG4319A705CA Tube Assy, A/C Evaporator Outlet, Upper 07MY	-	1	Enquire
20	4G438910912PK	O-RINGS-EVAP & COND A/C PIPES (PACK OF 3)	4G438910912PK O-RINGS-EVAP & COND A/C PIPES (PACK OF 3)	-	1	Enquire
21	701172	Clip, 16 x 2.8 - 3.3 IN STOCK	701172 Clip, 16 x 2.8 - 3.3 IN STOCK	-	3	Enquire
22	703201	SCREW M8 x 30 HEX FLANGE CHROME FREE IN STOCK	703201 SCREW M8 x 30 HEX FLANGE CHROME FREE 08MY From (V) A09110 IN STOCK	-	2	Enquire
22	703172PK	Screw M8 x 25 Pan Head (Pack of 10) IN STOCK	703172PK Screw M8 x 25 Pan Head (Pack of 10) 07MY IN STOCK	-	2	Enquire
23	1R128910192	Switch, A/C High Pressure	1R128910192 Switch, A/C High Pressure	-	1	Enquire
24	6L2419D594BA	Switch, AC, pressure cutoff	6L2419D594BA Switch, AC, pressure cutoff	-	1	Enquire
24	AG438911295	SW ASY-A/C PRES CTOF	AG438911295 SW ASY-A/C PRES CTOF	-	1	Enquire
24	4G43717B19AB	Air con refrigerant	4G43717B19AB Air con refrigerant	-	-	Enquire
