Centre Stack Assembly (2009) of Aston Martin Aston Martin DB9 (2004-2012)

View All

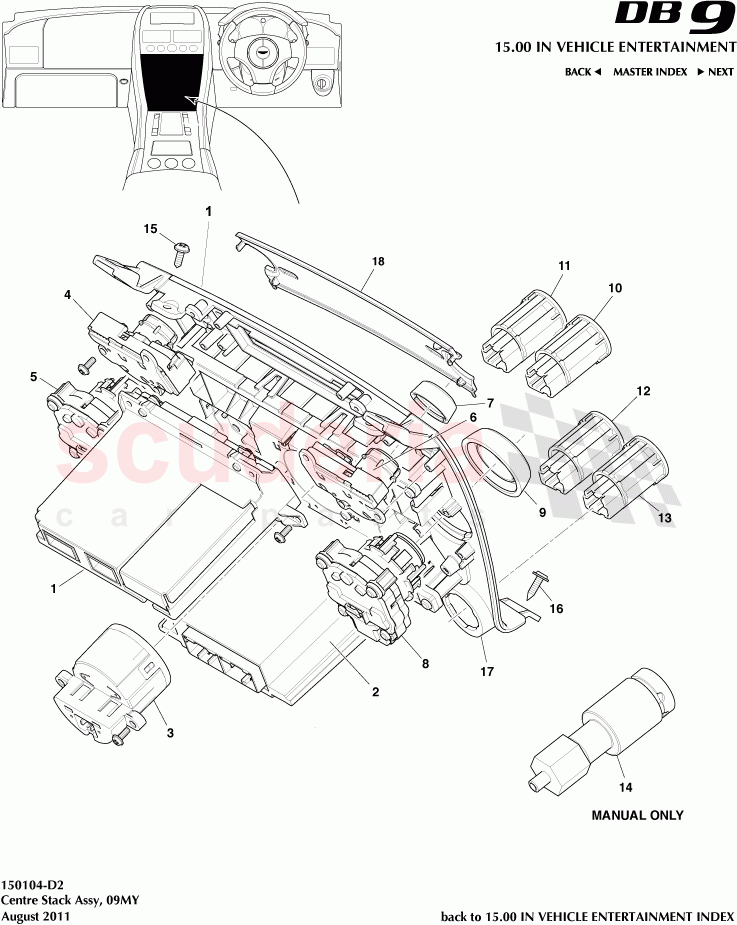

Aston Martin DB9 (2004-2012) - Centre Stack Assembly (2009)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8D3318K810AA	INFOTAINMENT CONTROL MODULE HARDWARE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG3318C612AA	Module, HVAC control	Enquire	To Order
	8D3318C612AB	CENTRE CONSOLE MODULE ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3315000BB	Analogue Clock	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3313D734CB	Switch body, Piano Black surround and Silver lens	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3318C612DA	Module, Temp HVAC Rotary Control	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3313D734BB	Module, Volume / Auto Audio Control	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3318817AB	AUDIO CONROL KNOB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3318C612EA	Module, Fan Speed HVAC Rotary Control	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CG4318783AA	Knob, HVAC control, satin chrome	Enquire	To Order
	AG433711210	SWITCH KIT-GLASS DB9 MANUAL & V8 VTG MANUAL (MADE TO ORD)	Enquire	To Order
	AG433711211	SWITCH KIT-GLASS DB9 AUTO (MADE TO ORDER)	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	AD3315A860BB	PARKING SENSOR SWITC	Enquire	To Order
	8D3315A860BB	SWITCH-PARKNG SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD332C418DA	Switch, DSC Control	Enquire	To Order
	AD332C418CA	Switch, Active Damping	Enquire	To Order
	BG432C418BA	DSC CONTROL SWITCH	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	AD3315K237BB	FOGLAMP SWITCH	Enquire	To Order
	6G3315K237BB	FOGLAMP SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AD3314B626CB	SPORTS MODE SWITCH	Enquire	To Order
	9D3314B626AA	SPORTS MODE SWITCH	Enquire	To Order
	6G3314B626BB	SPORTS MODE SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4356051BB	PEN HOLDER	Enquire	To Order
	700623	LAMY POCKET PEN-CHROME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	707263	SCREW 4.2x13 FLG T/F	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CD3313D734CA	SWITCH MAIN BODY	Enquire	To Order
	8D3318783AC	HVAC CONTROL KNOB	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AG4304708BB	ICM LENS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	CG4318C815GA	Centre stack assy, black outer, black inner, satin chrome knobs	CG4318C815GA Centre stack assy, black outer, black inner, satin chrome knobs 12MY	-	1	Enquire
-	9G4318C815AD	CENTRE STACK ASSY SILVER OUTR GRAPHITE INNER	9G4318C815AD CENTRE STACK ASSY SILVER OUTR GRAPHITE INNER 11MY	-	1	Enquire
-	9G4318C858BC	Centre stack assy, silver outer, graphite inner, LHD MANUAL	9G4318C858BC Centre stack assy, silver outer, graphite inner, LHD MANUAL	-	1	Enquire
-	9G4318C858AB	Centre stack assy, silver outer, graphite inner, LHD AUTO	9G4318C858AB Centre stack assy, silver outer, graphite inner, LHD AUTO	-	1	Enquire
-	9G4318C858DB	Centre stack assy, silver, RHD MANUAL	9G4318C858DB Centre stack assy, silver, RHD MANUAL	-	1	Enquire
-	9G4318C858CA	CENTRE STACK ASSY SILVER	9G4318C858CA CENTRE STACK ASSY SILVER	-	1	Enquire
1	8D3318K810AA	INFOTAINMENT CONTROL MODULE HARDWARE	8D3318K810AA INFOTAINMENT CONTROL MODULE HARDWARE	-	1	Enquire
2	CG3318C612AA	Module, HVAC control	CG3318C612AA Module, HVAC control 12MY	-	1	Enquire
2	8D3318C612AB	CENTRE CONSOLE MODULE ECU	8D3318C612AB CENTRE CONSOLE MODULE ECU	-	1	Enquire
3	8D3315000BB	Analogue Clock	8D3315000BB Analogue Clock	-	1	Enquire
4	8D3313D734CB	Switch body, Piano Black surround and Silver lens	8D3313D734CB Switch body, Piano Black surround and Silver lens	-	1	Enquire
5	8D3318C612DA	Module, Temp HVAC Rotary Control	8D3318C612DA Module, Temp HVAC Rotary Control	-	1	Enquire
6	8D3313D734BB	Module, Volume / Auto Audio Control	8D3313D734BB Module, Volume / Auto Audio Control	-	1	Enquire
7	8D3318817AB	AUDIO CONROL KNOB	8D3318817AB AUDIO CONROL KNOB	-	2	Enquire
8	8D3318C612EA	Module, Fan Speed HVAC Rotary Control	8D3318C612EA Module, Fan Speed HVAC Rotary Control	-	1	Enquire
9	CG4318783AA	Knob, HVAC control, satin chrome	CG4318783AA Knob, HVAC control, satin chrome 12MY	-	2	Enquire
9	AG433711210	SWITCH KIT-GLASS DB9 MANUAL & V8 VTG MANUAL (MADE TO ORD)	AG433711210 SWITCH KIT-GLASS DB9 MANUAL & V8 VTG MANUAL (MADE TO ORD)	-	1	Enquire
9	AG433711211	SWITCH KIT-GLASS DB9 AUTO (MADE TO ORDER)	AG433711211 SWITCH KIT-GLASS DB9 AUTO (MADE TO ORDER)	-	1	Enquire
9	8D3318783AC	HVAC CONTROL KNOB	8D3318783AC HVAC CONTROL KNOB	-	2	Enquire
10	AD3315A860BB	PARKING SENSOR SWITC	AD3315A860BB PARKING SENSOR SWITC 11MY, Glass	-	1	Enquire
10	8D3315A860BB	SWITCH-PARKNG SENSOR	8D3315A860BB SWITCH-PARKNG SENSOR	-	1	Enquire
11	AD332C418DA	Switch, DSC Control	AD332C418DA Switch, DSC Control 11MY, Glass	-	1	Enquire
11	AD332C418CA	Switch, Active Damping	AD332C418CA Switch, Active Damping 12MY	-	1	Enquire
11	BG432C418BA	DSC CONTROL SWITCH	BG432C418BA DSC CONTROL SWITCH 12MY	-	1	Enquire
11	8D332C418CA	ACTIVE DAMPING SWTCH	8D332C418CA ACTIVE DAMPING SWTCH 12MY	-	1	Enquire
11	6G332C418AA	DSC CONTROL SWITCH	6G332C418AA DSC CONTROL SWITCH	-	1	Enquire
12	AD3315K237BB	FOGLAMP SWITCH	AD3315K237BB FOGLAMP SWITCH 11MY, Glass	-	1	Enquire
12	6G3315K237BB	FOGLAMP SWITCH	6G3315K237BB FOGLAMP SWITCH	-	1	Enquire
13	AD3314B626CB	SPORTS MODE SWITCH	AD3314B626CB SPORTS MODE SWITCH 11MY	-	1	Enquire
13	9D3314B626AA	SPORTS MODE SWITCH	9D3314B626AA SPORTS MODE SWITCH 12MY	-	1	Enquire
13	6G3314B626BB	SPORTS MODE SWITCH	6G3314B626BB SPORTS MODE SWITCH	-	1	Enquire
14	9G4356051BB	PEN HOLDER	9G4356051BB PEN HOLDER	-	1	Enquire
14	700623	LAMY POCKET PEN-CHROME	700623 LAMY POCKET PEN-CHROME	-	1	Enquire
15	707263	SCREW 4.2x13 FLG T/F	707263 SCREW 4.2x13 FLG T/F	-	2	Enquire
16	701157PK	Screw & Washer 4.2 x 16 (Pack of 10)	701157PK Screw & Washer 4.2 x 16 (Pack of 10)	-	2	Enquire
17	CD3313D734CA	SWITCH MAIN BODY	CD3313D734CA SWITCH MAIN BODY 12MY	-	1	Enquire
17	8D3318783AC	HVAC CONTROL KNOB	8D3318783AC HVAC CONTROL KNOB	-	1	Enquire
18	AG4304708BB	ICM LENS	AG4304708BB ICM LENS 9.5MY on	-	1	Enquire
