License Plate Illumination

Aston Martin DB9 (2004-2012)

Find Your Part

Aston Martin DB9 (2004-2012) - License plate Illumination

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
4G43N43400AB License Plate Lamp Finisher Enquire To Order
Photo Part No Description Price (each) Stock
4G433710248 No Plate Lamp Enquire IN STOCK
4G433710248 No Plate Lamp Enquire IN STOCK
Photo Part No Description Price (each) Stock
702295 Nut, M5, Hex Flange Head Enquire IN STOCK
Photo Part No Description Price (each) Stock
4G4314A227FA Harness Assembly Federal Number plate Lamp Link Enquire To Order
4G4314A227GA HARNESS ASSEMBLY FEDERAL NUMBER PLATE LAMP STUB Enquire To Order
Photo Part No Description Price (each) Stock
1R123710452 SWITCH-BOOT LID RELEASE Enquire To Order
Photo Part No Description Price (each) Stock
707158 Screw & Washer, M3.5 x 13, Flange Pan Head Enquire IN STOCK
View All

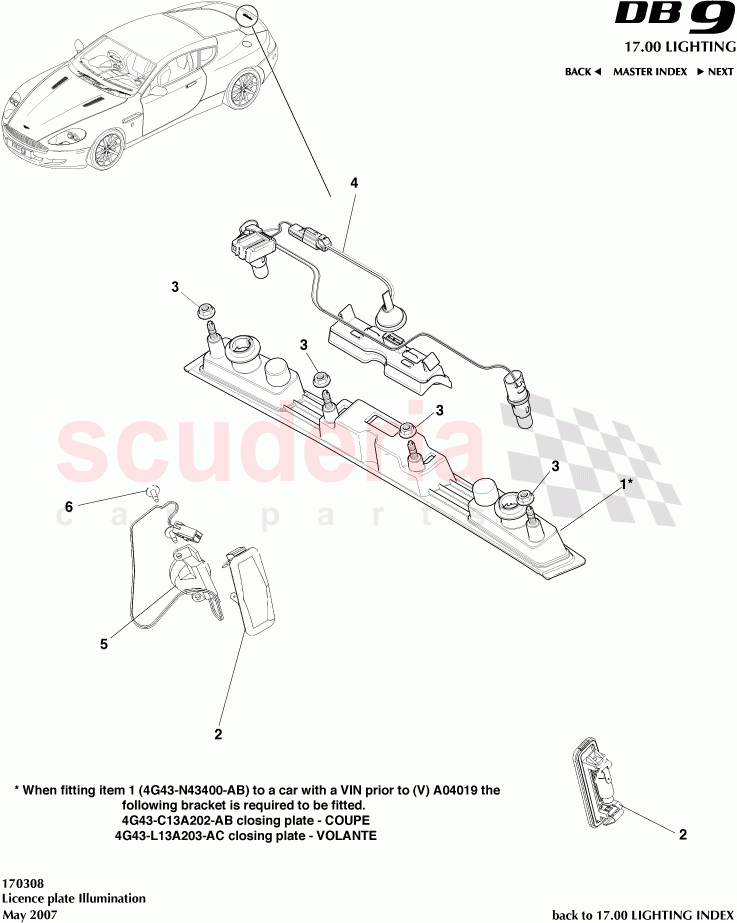

License plate Illumination of Aston Martin Aston Martin DB9 (2004-2012) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 4G43N43400AB
License Plate Lamp Finisher
ROW 		- 1 Enquire
2 4G433710248
No Plate Lamp
FEDERAL
IN STOCK 		- 2 Enquire
2 4G433710248
No Plate Lamp
IN STOCK 		- 2 Enquire
3 702295
Nut, M5, Hex Flange Head
IN STOCK 		- 4 Enquire
4 4G4314A227FA
Harness Assembly Federal Number plate Lamp Link 		- 1 Enquire
4 4G4314A227GA
HARNESS ASSEMBLY FEDERAL NUMBER PLATE LAMP STUB 		- 1 Enquire
5 1R123710452
SWITCH-BOOT LID RELEASE
FEDERAL 		- 1 Enquire
6 707158
Screw & Washer, M3.5 x 13, Flange Pan Head
IN STOCK 		- 2 Enquire
