Battery of Aston Martin Aston Martin DB9 (2004-2012)

View All

Aston Martin DB9 (2004-2012) - Battery

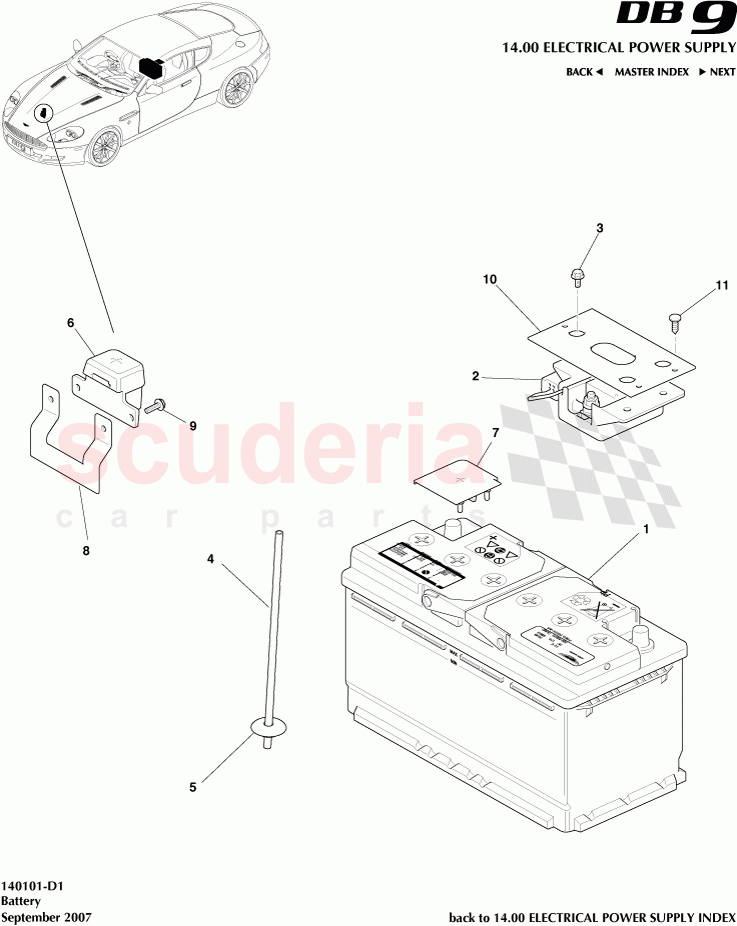

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3785928	BATTERY-SVR CALCIUM 12V 90AH RC170mins 680AMPS (SAE)	Enquire	To Order
	3785928/WM	BATTERY-SVR CALCIUM 12V 90AH RC170mins 680AMPS(SAE)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7G43370397AC	Batt Disconnect Switch	Enquire	To Order
	1R12370397AE	Switch - Battery Disconnect	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701553	Screw, M6 x 16, Pan Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R12372635AA	Tube, Battery Vent, 240mm	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3781850	Grommet, battery vent tube	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	6G3314B600BF	Jumpstart Terminal Assy	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433710115	BATTERY TERML COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4314B600BD	JUMP START TERMINAL BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	IN STOCK
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G4310B774BB	INSULATOR-BATTERY DISCONNECT SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	701432	PIN 5.7x15.7 PUSH IN NYL-FIR TREE	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3785928	BATTERY-SVR CALCIUM 12V 90AH RC170mins 680AMPS (SAE)	3785928 BATTERY-SVR CALCIUM 12V 90AH RC170mins 680AMPS (SAE) -UK Only	-	1	Enquire
1	3785928/WM	BATTERY-SVR CALCIUM 12V 90AH RC170mins 680AMPS(SAE)	3785928/WM BATTERY-SVR CALCIUM 12V 90AH RC170mins 680AMPS(SAE)	-	1	Enquire
2	7G43370397AC	Batt Disconnect Switch	7G43370397AC Batt Disconnect Switch 07MY	-	1	Enquire
2	1R12370397AE	Switch - Battery Disconnect	1R12370397AE Switch - Battery Disconnect	-	1	Enquire
3	701553	Screw, M6 x 16, Pan Head IN STOCK	701553 Screw, M6 x 16, Pan Head IN STOCK	-	3	Enquire
4	1R12372635AA	Tube, Battery Vent, 240mm IN STOCK	1R12372635AA Tube, Battery Vent, 240mm IN STOCK	-	1	Enquire
5	3781850	Grommet, battery vent tube IN STOCK	3781850 Grommet, battery vent tube IN STOCK	-	1	Enquire
6	6G3314B600BF	Jumpstart Terminal Assy	6G3314B600BF Jumpstart Terminal Assy	-	3	Enquire
7	4G433710115	BATTERY TERML COVER	4G433710115 BATTERY TERML COVER	-	1	Enquire
8	4G4314B600BD	JUMP START TERMINAL BRACKET	4G4314B600BD JUMP START TERMINAL BRACKET	-	2	Enquire
9	700606	Screw, M6 x 12, Hex Flange Head IN STOCK	700606 Screw, M6 x 12, Hex Flange Head 08MY From (V) A09110 IN STOCK	-	2	Enquire
9	700606	Screw, M6 x 12, Hex Flange Head IN STOCK	700606 Screw, M6 x 12, Hex Flange Head 07MY IN STOCK	-	2	Enquire
10	4G4310B774BB	INSULATOR-BATTERY DISCONNECT SWITCH	4G4310B774BB INSULATOR-BATTERY DISCONNECT SWITCH	-	1	Enquire
11	701432	PIN 5.7x15.7 PUSH IN NYL-FIR TREE IN STOCK	701432 PIN 5.7x15.7 PUSH IN NYL-FIR TREE IN STOCK	-	3	Enquire
