Aston Martin DB9 (2004-2012) - Fuse Panel, Fuses, Circuit Breakers

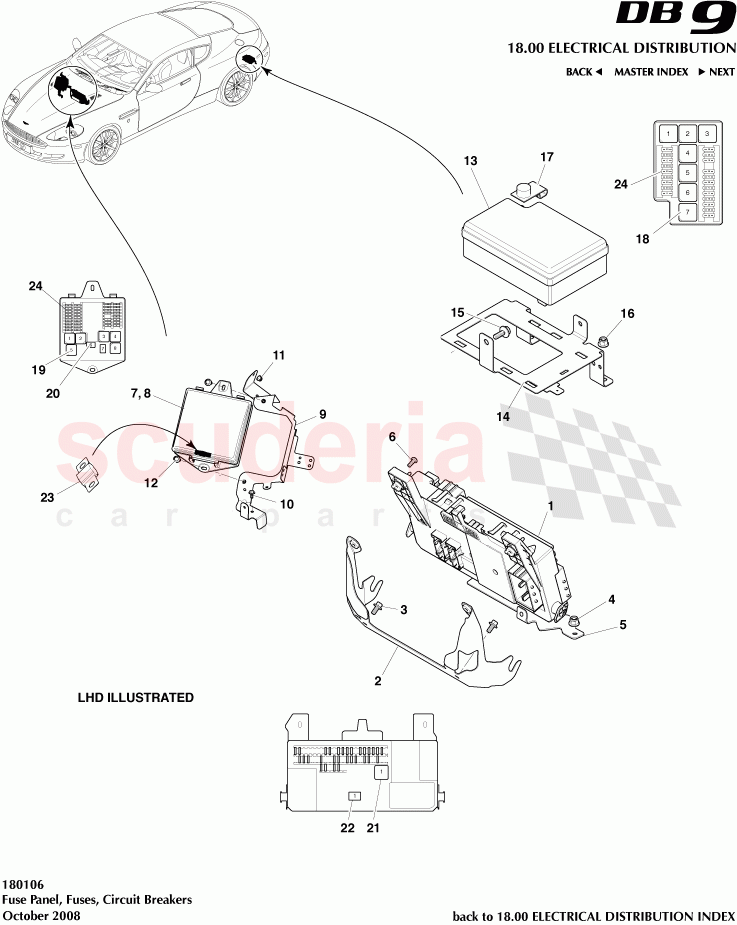

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8G4314C245AA	Central Electronic Module - CEM	Enquire	To Order
	8G4314C245AA	Central Electronic Module - CEM	Enquire	To Order
	7G4314C272AB	Module, central electronic assy	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	4G4313B525BG	Bracket, Cabin Fuse Box CEM	Enquire	To Order
	4G4313B525BF	Bracket, cabin fusebox CEM, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700606	Screw, M6 x 12, Hex Flange Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702429	LOCKNUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G43L41041AA	Edge Strip, Black 2 x 40	Enquire	IN STOCK
	8D3314N072AE	Bracket, Fuse Box, LHD	Enquire	To Order
	4G4314N072BD	Bracket, fusebox mounting, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702082	Bolt, Self Locking, M5 x 16	Enquire	IN STOCK
	700963	SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8D3314A173AB	ENGINE BAY FUSE BOX	Enquire	IN STOCK
	BG3314A173AB	Fuse Box Assembly, Engine Bay	Enquire	To Order
	4G4314A173AF	ENGINE BAY FUSE BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4314A173AF	ENGINE BAY FUSE BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4314A173CH	ENG BAY F/BOX BRKT	Enquire	To Order
	4G4314A173BK	ENGINE BAY FUSEBOX BRACKET RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703151	Screw M6x16 Washer Hex HD Chrome Free	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703163	Nut, M6, Hex Flange Head, Locking	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	703151	Screw M6x16 Washer Hex HD Chrome Free	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G4314A073AJ	Fusebox, Rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G4314A301AH	Bracket, Boot Fusebox	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703151	Screw M6x16 Washer Hex HD Chrome Free	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	702944	Nut, M6, Hex Flanged Head	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3785236	Protector, Power Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123710526	RELAY-CHANGE OVER 40A MAXI	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R123710526	RELAY-CHANGE OVER 40A MAXI	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G433710659	TONNEAU LID LOCK RELAY 20A MICRO	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	1R123710526	RELAY-CHANGE OVER 40A MAXI	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G433710659	TONNEAU LID LOCK RELAY 20A MICRO	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	4G433710962	FUSE 80 AMP- COOLING FAN MOTOR	Enquire	To Order
	4G433710264	FUSE 60 AMP-YELLOW COOLING FAN MOTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433710579PK	MINI FUSE-7.5A PK 10	Enquire	To Order
	3723423	Fuse Midi 7.5A	Enquire	IN STOCK
	4G433710580PK	MINI FUSE-10A PK 10	Enquire	To Order

...and 10 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	8G4314C245AA	Central Electronic Module - CEM	8G4314C245AA Central Electronic Module - CEM 08MY From (V) A09110	-	1	Enquire
1	8G4314C245AA	Central Electronic Module - CEM	8G4314C245AA Central Electronic Module - CEM 10MY From (V) 12505	-	1	Enquire
1	7G4314C272AB	Module, central electronic assy	7G4314C272AB Module, central electronic assy 07MY	-	1	Enquire
1	4G433711201	CENTRAL ELECT MODULE	4G433711201 CENTRAL ELECT MODULE 07MY	-	1	Enquire
1	4G433711201	CENTRAL ELECT MODULE	4G433711201 CENTRAL ELECT MODULE	-	1	Enquire
2	4G4313B525BG	Bracket, Cabin Fuse Box CEM	4G4313B525BG Bracket, Cabin Fuse Box CEM LHD	-	1	Enquire
2	4G4313B525BF	Bracket, cabin fusebox CEM, LHD	4G4313B525BF Bracket, cabin fusebox CEM, LHD RHD	-	1	Enquire
3	700606	Screw, M6 x 12, Hex Flange Head IN STOCK	700606 Screw, M6 x 12, Hex Flange Head Bracket, CEM IN STOCK	-	2	Enquire
4	702429	LOCKNUT M6	702429 LOCKNUT M6 Bracket, CEM	-	1	Enquire
5	4G43L41041AA	Edge Strip, Black 2 x 40 IN STOCK	4G43L41041AA Edge Strip, Black 2 x 40 Bracket, Fusebox mnting IN STOCK	-	1	Enquire
5	8D3314N072AE	Bracket, Fuse Box, LHD	8D3314N072AE Bracket, Fuse Box, LHD LHD	-	1	Enquire
5	4G4314N072BD	Bracket, fusebox mounting, RHD	4G4314N072BD Bracket, fusebox mounting, RHD RHD	-	1	Enquire
6	702082	Bolt, Self Locking, M5 x 16 IN STOCK	702082 Bolt, Self Locking, M5 x 16 Bracket, Fusebox mnting IN STOCK	-	1	Enquire
6	700963	SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK	700963 SREW M4 x 8mm LONG PAN HEAD POZIDRIVE BLACK Bracket, Fusebox mnting	-	1	Enquire
7	8D3314A173AB	ENGINE BAY FUSE BOX IN STOCK	8D3314A173AB ENGINE BAY FUSE BOX 09MY IN STOCK	-	1	Enquire
7	BG3314A173AB	Fuse Box Assembly, Engine Bay	BG3314A173AB Fuse Box Assembly, Engine Bay 11MY	-	1	Enquire
7	4G4314A173AF	ENGINE BAY FUSE BOX	4G4314A173AF ENGINE BAY FUSE BOX	-	1	Enquire
8	4G4314A173AF	ENGINE BAY FUSE BOX	4G4314A173AF ENGINE BAY FUSE BOX	-	1	Enquire
9	4G4314A173CH	ENG BAY F/BOX BRKT	4G4314A173CH ENG BAY F/BOX BRKT LHD	-	1	Enquire
9	4G4314A173BK	ENGINE BAY FUSEBOX BRACKET RHD	4G4314A173BK ENGINE BAY FUSEBOX BRACKET RHD RHD	-	1	Enquire
10	703151	Screw M6x16 Washer Hex HD Chrome Free IN STOCK	703151 Screw M6x16 Washer Hex HD Chrome Free IN STOCK	-	2	Enquire
11	703163	Nut, M6, Hex Flange Head, Locking IN STOCK	703163 Nut, M6, Hex Flange Head, Locking Bracket, Engine Fusebox IN STOCK	-	1	Enquire
12	703151	Screw M6x16 Washer Hex HD Chrome Free IN STOCK	703151 Screw M6x16 Washer Hex HD Chrome Free Engine Fusebox IN STOCK	-	2	Enquire
13	4G4314A073AJ	Fusebox, Rear	4G4314A073AJ Fusebox, Rear	-	1	Enquire
14	4G4314A301AH	Bracket, Boot Fusebox	4G4314A301AH Bracket, Boot Fusebox	-	1	Enquire
15	703151	Screw M6x16 Washer Hex HD Chrome Free IN STOCK	703151 Screw M6x16 Washer Hex HD Chrome Free Boot fusebox brkt to body IN STOCK	-	1	Enquire
16	702944	Nut, M6, Hex Flanged Head IN STOCK	702944 Nut, M6, Hex Flanged Head Boot fusebox brkt to body IN STOCK	-	4	Enquire
17	3785236	Protector, Power Stud	3785236 Protector, Power Stud	-	1	Enquire
18	1R123710526	RELAY-CHANGE OVER 40A MAXI IN STOCK	1R123710526 RELAY-CHANGE OVER 40A MAXI Boot Fusebox IN STOCK	-	7	Enquire
19	1R123710526	RELAY-CHANGE OVER 40A MAXI IN STOCK	1R123710526 RELAY-CHANGE OVER 40A MAXI Engine Bay Fusebox IN STOCK	-	6	Enquire
20	4G433710659	TONNEAU LID LOCK RELAY 20A MICRO IN STOCK	4G433710659 TONNEAU LID LOCK RELAY 20A MICRO Engine Bay Fusebox IN STOCK	-	1	Enquire
21	1R123710526	RELAY-CHANGE OVER 40A MAXI IN STOCK	1R123710526 RELAY-CHANGE OVER 40A MAXI CEM IN STOCK	-	1	Enquire
22	4G433710659	TONNEAU LID LOCK RELAY 20A MICRO IN STOCK	4G433710659 TONNEAU LID LOCK RELAY 20A MICRO CEM IN STOCK	-	1	Enquire
23	4G433710962	FUSE 80 AMP- COOLING FAN MOTOR	4G433710962 FUSE 80 AMP- COOLING FAN MOTOR 09MY	-	-	Enquire
23	4G433710264	FUSE 60 AMP-YELLOW COOLING FAN MOTOR	4G433710264 FUSE 60 AMP-YELLOW COOLING FAN MOTOR	-	-	Enquire
24	4G433710579PK	MINI FUSE-7.5A PK 10	4G433710579PK MINI FUSE-7.5A PK 10	-	-	Enquire
24	3723423	Fuse Midi 7.5A IN STOCK	3723423 Fuse Midi 7.5A IN STOCK	-	-	Enquire
24	4G433710580PK	MINI FUSE-10A PK 10	4G433710580PK MINI FUSE-10A PK 10	-	-	Enquire
24	4G433710581PK	MINI FUSE-15A PK 10	4G433710581PK MINI FUSE-15A PK 10	-	-	Enquire
24	4G433710582PK	MINI FUSE-20A PK 10	4G433710582PK MINI FUSE-20A PK 10	-	-	Enquire
24	4G433710583PK	MINI FUSE-25A PK 10	4G433710583PK MINI FUSE-25A PK 10	-	-	Enquire
24	3723424	Fuse, Midi 10A	3723424 Fuse, Midi 10A	-	-	Enquire
24	3723425	Fuse, Midi 15A	3723425 Fuse, Midi 15A	-	-	Enquire
24	3723426	Fuse, Midi 20A	3723426 Fuse, Midi 20A	-	-	Enquire
24	3723427	Fuse, Midi 25A	3723427 Fuse, Midi 25A	-	-	Enquire
24	3723428	Fuse, Midi 30A	3723428 Fuse, Midi 30A	-	-	Enquire
24	4G433710578PK	MINI FUSE-5A PK 10	4G433710578PK MINI FUSE-5A PK 10	-	-	Enquire
24	3723422	Fuse, Midi 5A	3723422 Fuse, Midi 5A	-	-	Enquire
