Aston Martin DB7 Vantage - Harnesses

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
37123167AB HARNESS BULKHEAD RHD $8,834.65 To Order
37124191AC HARNESS BULKHEAD RHD $2,526.67 To Order
37123166AB HARNESS BULKHEAD LHD $2,073.02 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
37123168AA HARNESS POWERTRAIN MANAGEMENT $1,435.15 To Order
37120257AF HARNESS POWERTRAIN MANAGEMENT $1,658.41 To Order
37124195AD HARNESS MANAGEMENT ENGINE $1,480.08 To Order
Photo Part No Description Price (each) Stock
37120259AF HARNESS - AUTO TRANS $5,654.18 To Order
37123169AA HARNESS AUTO TRANS $590.01 To Order
Photo Part No Description Price (each) Stock
37123332AA CLIP $1.73 To Order
37120260AE HARNESS - MANUAL TRANSMISSION $176.70 To Order
Photo Part No Description Price (each) Stock
37123170AA HARNESS-GSI (PRNDL) TIPTRONIC $95.65 To Order
37120262AE HARNESS-GSI (PRNDL) $558.36 To Order
Photo Part No Description Price (each) Stock
91701 HARNESS ASSY-ENGINE $3,689.45 To Order
698943 CLIP PIPE 25 DIA $6.33 To Order
3785921 FUEL INJECTOR HOUSING HARNESS $3.55 To Order
Photo Part No Description Price (each) Stock
37120253AG HARNESS LEFT FORWARD $1,837.53 To Order
37123165AB HARNESS LEFT FORWARD $1,837.53 To Order
697398 TIESTRAP-RELEASEABLE 4.6 x 165 $1.48 To Order
Photo Part No Description Price (each) Stock
37120254AE HARNESS - ABS LINK $310.01 To Order
37120254AE HARNESS - ABS LINK $310.01 To Order
37124194AC HARNESS ABS LINK $937.25 To Order
Photo Part No Description Price (each) Stock
37121821AC ABS LINK-FRONT $315.07 To Order
Photo Part No Description Price (each) Stock
37123709AA HARNESS CLUTCH LINK LEAD $30.15 To Order
37121822AC ABS LINK-REAR $318.07 To Order
Photo Part No Description Price (each) Stock
37122849AB HARNESS - AMPLIFIER BOARD $95.63 To Order
37124193AA Link harness, in car entertainment Enquire To Order
37124160AA Link lead, radio Enquire To Order
Photo Part No Description Price (each) Stock
3781997 Harness - air conditioning $362.18 To Order
Photo Part No Description Price (each) Stock
37122620AC HARNESS DRIVER DOOR RHD $178.68 To Order
37121722AD HARNESS DRIVER DOOR LHD $178.68 To Order
37124211AA DRIVERS DOOR HARNESS RHD $144.86 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
37121723AD HARNESS PASSENGER DOOR $162.65 To Order
37124241AA PASSENGER DOOR HARNESS $135.48 To Order
Photo Part No Description Price (each) Stock
37123164AA HARNESS REARWARD $1,754.09 To Order
37120252AH HARNESS REARWARD $1,913.55 To Order
37124189AG HARNESS REARWARD $2,111.78 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
37122466AA Harness, front seat Enquire To Order
Photo Part No Description Price (each) Stock
3781919 AERIAL CABLE $51.88 To Order
Photo Part No Description Price (each) Stock
3784537 Harness, trunk lid $189.91 To Order
37123676AA BOOT LID HARNESS $84.87 To Order
37140176AA TRUNKLID HARNESS $51.85 To Order
Photo Part No Description Price (each) Stock
37120261BC HARNESS - HOOD LIFT $302.97 To Order
37123140AA LINK LEAD - SIDE MARKER $14.49 To Order
3790075 Cable Tie, 290mm $0.12 To Order
Photo Part No Description Price (each) Stock
37123592AA GSI PRNDL LINK LEAD $669.51 To Order
Photo Part No Description Price (each) Stock
37123654AA PRNDL ILLUMINATION LINK LEAD $22.32 To Order
Photo Part No Description Price (each) Stock
37124124AA BATTERY CONDITIONER LINK LEAD $24.82 To Order
37123784AA WIPER DELAY LINK LEAD $515.45 To Order
Photo Part No Description Price (each) Stock
83124556AA ENGINE MANAGEMENT LOOM PROTECTOR RH $29.67 To Order
83124555AA ENGINE MANAGEMENT LOOM PROTECTOR LH $29.67 To Order
Photo Part No Description Price (each) Stock
37140409AA LINK LEAD - REVERSE LIGHT $43.20 To Order
37140408AA LINK LEAD - FOG LIGHT $38.99 To Order
37140157AA LINK LEAD - FORWARD HARNESS TO SIDE REPEATER $11.20 To Order
...and 13 more part variants. See table on right for more details.
View All

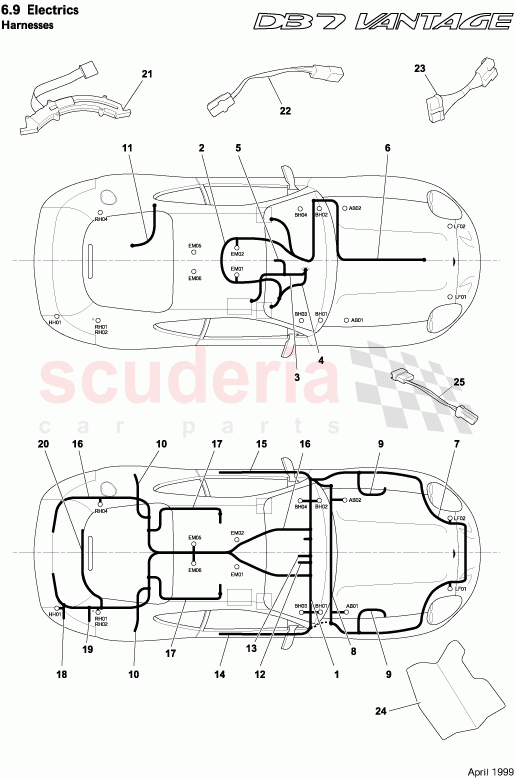

Harnesses of Aston Martin Aston Martin DB7 Vantage Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 37123167AB
HARNESS BULKHEAD RHD
From (V) 300556 Up to (V) 302252 		$8,834.65 1
1 37124191AC
HARNESS BULKHEAD RHD
From (V) 302253 Up to (V) 303447 		$2,526.67 1
1 37123166AB
HARNESS BULKHEAD LHD
From (V) 300556 Up to (V) 302252 		$2,073.02 1
1 37120256AE
HARNESS BULKHEAD RHD
Up to (V) 300555 		$2,073.03 1
1 37120255AG
HARNESS BULKHEAD LHD
Up to (V) 300555 		$2,073.03 1
1 37124191AC
HARNESS BULKHEAD RHD
From (V) 303448 		$2,526.67 1
1 37124190AC
HARNESS BULKHEAD LHD
From (V) 302253 		$2,509.04 1
2 37123168AA
HARNESS POWERTRAIN MANAGEMENT
From (V) 300556 Up to (V) 302252 		$1,435.15 1
2 37120257AF
HARNESS POWERTRAIN MANAGEMENT
Up to (V) 300555 		$1,658.41 1
2 37124195AD
HARNESS MANAGEMENT ENGINE
From (V) 302253 		$1,480.08 1
3 37120259AF
HARNESS - AUTO TRANS
Up to (V) 300555 		$5,654.18 1
3 37123169AA
HARNESS AUTO TRANS
From (V) 300556 		$590.01 1
4 37123332AA
CLIP
Manual 		$1.73 1
4 37120260AE
HARNESS - MANUAL TRANSMISSION 		$176.70 1
5 37123170AA
HARNESS-GSI (PRNDL) TIPTRONIC
From (V) 300556 		$95.65 1
5 37120262AE
HARNESS-GSI (PRNDL) 		$558.36 1
6 91701
HARNESS ASSY-ENGINE 		$3,689.45 1
6 698943
CLIP PIPE 25 DIA 		$6.33 1
6 3785921
FUEL INJECTOR HOUSING HARNESS 		$3.55 12
7 37120253AG
HARNESS LEFT FORWARD
Up to (V) 300555 		$1,837.53 1
7 37123165AB
HARNESS LEFT FORWARD
From (V) 300556 		$1,837.53 1
7 697398
TIESTRAP-RELEASEABLE 4.6 x 165 		$1.48 2
8 37120254AE
HARNESS - ABS LINK
From (V) 300556 Up to (V) 302252 		$310.01 1
8 37120254AE
HARNESS - ABS LINK
Up to (V) 300555 		$310.01 1
8 37124194AC
HARNESS ABS LINK
From (V) 302253 		$937.25 1
9 37121821AC
ABS LINK-FRONT 		$315.07 1
10 37123709AA
HARNESS CLUTCH LINK LEAD 		$30.15 1
10 37121822AC
ABS LINK-REAR 		$318.07 1
11 37122849AB
HARNESS - AMPLIFIER BOARD
Up to (V) 302252 		$95.63 1
11 37124193AA
Link harness, in car entertainment
From (V) 302253 		- 1 Enquire
11 37124160AA
Link lead, radio
From (V) 302253 		- 1 Enquire
13 3781997
Harness - air conditioning 		$362.18 1
14 37122620AC
HARNESS DRIVER DOOR RHD
RHD Up to (V) 302252 		$178.68 1
14 37121722AD
HARNESS DRIVER DOOR LHD
LHD Up to (V) 302252 		$178.68 1
14 37124211AA
DRIVERS DOOR HARNESS RHD
RHD From (V) 302253 		$144.86 1
14 37124212AA
DRIVERS DOOR HANRESS LHD
LHD From (V) 302253 		$144.86 1
15 37121723AD
HARNESS PASSENGER DOOR
Up to (V) 302252 		$162.65 1
15 37124241AA
PASSENGER DOOR HARNESS
From (V) 302253 		$135.48 1
16 37123164AA
HARNESS REARWARD
From (V) 300556 Up to (V) 302252 		$1,754.09 1
16 37120252AH
HARNESS REARWARD
Up to (V) 300555 		$1,913.55 1
16 37124189AG
HARNESS REARWARD
From (V) 302253 		$2,111.78 1
16 37124539AA
Grommet, rearward harness 		- 1 Enquire
16 4281204
CABLE TIE MOUNT- STUD FIXING 		$0.89 10
16 3790075
Cable Tie, 290mm 		$0.12 10
17 37122466AA
Harness, front seat 		- 2 Enquire
18 3781919
AERIAL CABLE 		$51.88 1
19 3784537
Harness, trunk lid
Up to (V) 300555 		$189.91 1
19 37123676AA
BOOT LID HARNESS
From (V) 300556 		$84.87 1
19 37140176AA
TRUNKLID HARNESS
Zagato 		$51.85 1
20 37120261BC
HARNESS - HOOD LIFT
Volante 		$302.97 1
20 37123140AA
LINK LEAD - SIDE MARKER
USA 		$14.49 2
20 3790075
Cable Tie, 290mm 		$0.12 2
21 37123592AA
GSI PRNDL LINK LEAD
From (V) 300556 		$669.51 1
22 37123654AA
PRNDL ILLUMINATION LINK LEAD
From (V) 300556 		$22.32 1
23 37124124AA
BATTERY CONDITIONER LINK LEAD 		$24.82 1
23 37123784AA
WIPER DELAY LINK LEAD 		$515.45 1
24 83124556AA
ENGINE MANAGEMENT LOOM PROTECTOR RH
From (V) 302253 		$29.67 1
24 83124555AA
ENGINE MANAGEMENT LOOM PROTECTOR LH
From (V) 302253 		$29.67 1
25 37140409AA
LINK LEAD - REVERSE LIGHT
Zagato/DBAR1 		$43.20 1
25 37140408AA
LINK LEAD - FOG LIGHT
Zagato/DBAR1 		$38.99 1
25 37140157AA
LINK LEAD - FORWARD HARNESS TO SIDE REPEATER
Zagato/DBAR1 		$11.20 2
25 37125498AB
EXHAUST BY-PASS HARNESS
GT/DBAR1 		$70.69 1
25 37140279AA
Link lead, antenna module to rearward harness
Zagato 		- 1 Enquire
25 37140177AA
LINK LEAD - BOOTLID HARNESS TO REARWARD HARNESS
Zagato 		$58.67 1
25 3790075
Cable Tie, 290mm
Zagato 		$0.12 1
25 699763PK
SELF ADH BASE(10)
Zagato 		$9.77 1
25 37150004AA
LINK LEAD - REAR REVERSING LIGHT
DBAR1 		$128.28 1
25 37150164AA
LINK LEAD SIDEMARKER FRONT
DBAR1 		$43.20 1
25 37150165AA
LINK LEAD SIDEMARKER REAR
DBAR1 		$215.62 1
25 37150115AA
BOOTLID HARNESS - FEDERAL
DBAR1 		$128.28 1
25 37150001AA
HARNESS - BOOTLID - EURO
DBAR1 		$234.72 1
25 697562
GROMMET 12mm ID
DBAR1 		$23.12 1
25 37124536AA
STEERING WHEEL LINK LEAD 		$27.06 1
25 37124861AA
BODY TO ENGINE EARTH BRAID 		$48.21 1
