Windscreen Washers of Aston Martin Aston Martin DB7 Vantage

View All

Aston Martin DB7 Vantage - Windscreen Washers

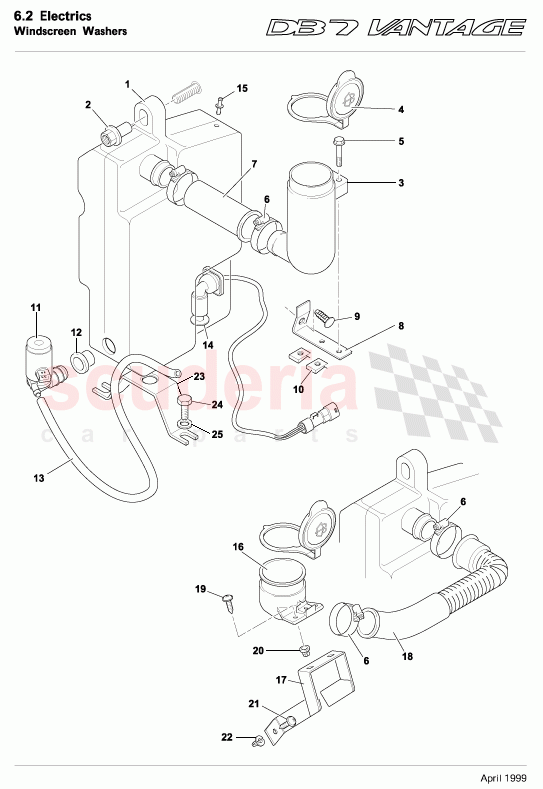

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	37121070AF	ASSY WASHER BOTTLE (SCREEN WASH ONLY)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3284127	TOWER NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37121863AB	FILLER NECK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3782938	FILLER CAP-WHITE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697636	M5 x 20 FLG HD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	690358	CLIP 25-40mm JUBILEE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	20123095AA	Tube, Connector	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	20122602AA	BRACKET - FILLER NECK - RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697570	SCREW No8 x 19 FLANGE HEAD BLACK	Enquire	To Order
	697528PK	Washer-M5 Large OD Pack of 20	Enquire	To Order
	697478	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	698903	U-CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3786509	SCREENWASH PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3785221	GROMMET-S/WASH PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37123429AC	ASSY-WASHER JET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3785222	SENSOR-LOW LEVEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699903	90 DEGREE CONNECTOR	Enquire	To Order
	699902	Sleeve, 15+1mm long	Enquire	To Order
	20124966AA	Hose, breather, washer bottle	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	6G3313K175BA	Filler Neck Assembly	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	20123094AB	BRKT-FILLER NECK LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3782040	TUBE CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697428	SCREW No10 x 1/2in S T REC FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697587	NUT SPRING U TYPE 10x(0.9-2.0)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700333	SCREW No10x19 S.T. FLANGED AB BLACK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697478	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6183319	BRKT-BOTTLE LOWER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697313	SCREW No14 x 5/8 S.T HEX HEAD AD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697400	TIE STRAP	Enquire	To Order
	697400	TIE STRAP	Enquire	To Order
	697310	WASHER 1/4 PLAIN 16SWG	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	37121070AF	ASSY WASHER BOTTLE (SCREEN WASH ONLY)	37121070AF ASSY WASHER BOTTLE (SCREEN WASH ONLY)	-	1	Enquire
1	37121070AF	ASSY WASHER BOTTLE (SCREEN WASH ONLY)	37121070AF ASSY WASHER BOTTLE (SCREEN WASH ONLY)	-	1	Enquire
2	3284127	TOWER NUT	3284127 TOWER NUT	-	1	Enquire
3	37121863AB	FILLER NECK	37121863AB FILLER NECK RHD Only	-	1	Enquire
4	3782938	FILLER CAP-WHITE	3782938 FILLER CAP-WHITE RHD Only	-	1	Enquire
5	697636	M5 x 20 FLG HD	697636 M5 x 20 FLG HD	-	2	Enquire
6	690358	CLIP 25-40mm JUBILEE	690358 CLIP 25-40mm JUBILEE	-	2	Enquire
7	20123095AA	Tube, Connector	20123095AA Tube, Connector RHD Only Cut from 37-82040	-	1	Enquire
8	20122602AA	BRACKET - FILLER NECK - RHD	20122602AA BRACKET - FILLER NECK - RHD RHD Only	-	1	Enquire
9	697570	SCREW No8 x 19 FLANGE HEAD BLACK	697570 SCREW No8 x 19 FLANGE HEAD BLACK RHD Only	-	1	Enquire
9	697528PK	Washer-M5 Large OD Pack of 20	697528PK Washer-M5 Large OD Pack of 20 RHD Only	-	1	Enquire
9	697478	CLIP	697478 CLIP RHD Only	-	1	Enquire
10	698903	U-CLIP	698903 U-CLIP RHD Only	-	2	Enquire
11	3786509	SCREENWASH PUMP	3786509 SCREENWASH PUMP	-	1	Enquire
12	3785221	GROMMET-S/WASH PUMP	3785221 GROMMET-S/WASH PUMP	-	1	Enquire
13	37123429AC	ASSY-WASHER JET	37123429AC ASSY-WASHER JET	-	1	Enquire
14	3785222	SENSOR-LOW LEVEL	3785222 SENSOR-LOW LEVEL	-	1	Enquire
15	699903	90 DEGREE CONNECTOR	699903 90 DEGREE CONNECTOR Alternative to item 15	-	1	Enquire
15	699902	Sleeve, 15+1mm long	699902 Sleeve, 15+1mm long Alternative to item 15	-	1	Enquire
15	20124966AA	Hose, breather, washer bottle	20124966AA Hose, breather, washer bottle	-	1	Enquire
15	880810	CONNECTOR	880810 CONNECTOR	-	1	Enquire
16	6G3313K175BA	Filler Neck Assembly	6G3313K175BA Filler Neck Assembly LHD Only	-	1	Enquire
17	20123094AB	BRKT-FILLER NECK LHD	20123094AB BRKT-FILLER NECK LHD LHD Only	-	1	Enquire
18	3782040	TUBE CONNECTOR	3782040 TUBE CONNECTOR LHD Only	-	1	Enquire
19	697428	SCREW No10 x 1/2in S T REC FLANGE	697428 SCREW No10 x 1/2in S T REC FLANGE LHD Only	-	2	Enquire
20	697587	NUT SPRING U TYPE 10x(0.9-2.0)	697587 NUT SPRING U TYPE 10x(0.9-2.0) LHD Only	-	2	Enquire
21	700333	SCREW No10x19 S.T. FLANGED AB BLACK	700333 SCREW No10x19 S.T. FLANGED AB BLACK LHD Only	-	2	Enquire
22	697478	CLIP	697478 CLIP LHD Only	-	2	Enquire
23	6183319	BRKT-BOTTLE LOWER	6183319 BRKT-BOTTLE LOWER	-	1	Enquire
24	697313	SCREW No14 x 5/8 S.T HEX HEAD AD	697313 SCREW No14 x 5/8 S.T HEX HEAD AD	-	2	Enquire
25	697400	TIE STRAP	697400 TIE STRAP RHD	-	6	Enquire
25	697400	TIE STRAP	697400 TIE STRAP LHD	-	7	Enquire
25	697310	WASHER 1/4 PLAIN 16SWG	697310 WASHER 1/4 PLAIN 16SWG	-	2	Enquire
