Aston Martin DB7 Vantage - Lamps and Bulbs

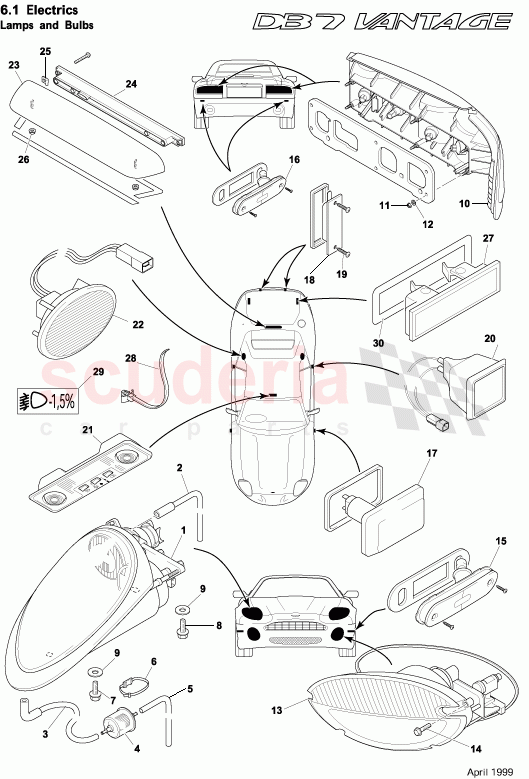

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	37111950AC	HEADLAMP ASSY - RH LHD (FED)	Enquire	To Order
	37111951AC	HEADLAMP ASSY - LH LHD (FED)	Enquire	To Order
	37111948AC	HEADLAMP ASSY - RH LHD (NON FED)	Enquire	To Order

...and 12 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8123705AA	HEADLAMP BREATHER SYSTEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3783530	FILTER - HEADLAMP VENTING	Enquire	To Order
	3785343	TUBE CONNECTOR- STRAIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8123707AA/1	Convolute tubing, 1200mm long	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8123707AA/3	Convolute tubing, 2200mm long	Enquire	To Order
	8123707AA/2	Convolute tubing, 700mm long	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3790075	Cable Tie, 290mm	Enquire	To Order
	699418	Tywrap, releasable	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697114	SCREW M6 x 20 HEX FLANGE HEAD GRD 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697134	WASHER M8 X 25 X 1.8 PLAIN ZINC YELL	Enquire	To Order
	3781216	REAR LIGHT ASSEMBLY- RH	Enquire	To Order
	3785220	FOAM PAD-SELF ADH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3781217	REAR LIGHT ASSEMBLY- LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	881401	WASHER-NYLON 4.9 x 22.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37123314AB	Finisher	Enquire	To Order
	37121709AA	LHS FRT SIDE/DI/FOG LAMP ROW	Enquire	To Order
	37121710AA	RH Front Fog Lamp	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3784037	LAMP-SIDEMARKER/REFL FRONT RH AMBER	Enquire	To Order
	699851	M5x16 REC'D PAN MC SCREW ST 1ST 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3784038	LAMP-SIDEMARKER/REFL FRONT LH AMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3784039	LAMP-SIDEMARKER/REFL REAR RH RED	Enquire	To Order
	37110895AA	ASSY-RR S/MARKER LH	Enquire	To Order
	697482	SCREW M4 x 20 PAN HEAD THREAD FORM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37124857AA	Side repeater flasher, clear lens	Enquire	To Order
	3781222	SIDE REPEATER FLASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3781223	NUMBER PLATE LAMP-RH	Enquire	To Order
	3781224	NUMBER PLATE LAMP-LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697798	SCREW-PAN HD S/TAP	Enquire	To Order
	37140024AA	REAR NUMBER PLATE LIGHT	Enquire	To Order
	37140610AAW	Rear number plate light, painted (37-140024-AA)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37122882AA	DOOR OPEN LAMP - RED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697289	WASHER-QUICK RELEASE FASTENER	Enquire	To Order
	8381811B	STUD ASSY-BEIGE	Enquire	To Order
	8384159B	LIGHT-MAP/ROOF BEIGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697290	PUSH ON FIXER-M3	Enquire	To Order
	3785750	LEVEL INDICATOR- HEADLAMP(USA)	Enquire	To Order
	3784982	HIGH MOUNTED STOP LAMP IN BLACK	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3784220	HOUSING ASSY CHMSL CONVERTIBLE UNPAINTED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3784219	CENTRE HIGH MOUNTED STOP LAMP	Enquire	To Order
	3784881	Gasket, adhesive Volante	Enquire	To Order
	3784882	Gasket, adhesive Volante	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697642	`U' NUT M4	Enquire	To Order
	3786011	HIGH MTD STOP LAMP CONVERTIBLE	Enquire	To Order
	37123985AA	H/LAMP APERTURE FOAM	Enquire	To Order

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	702840	Nut & Washer, M6, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3713545	INT LIGHT-GLOVE BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697398	TIESTRAP-RELEASEABLE 4.6 x 165	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9781805	HEADLAMP INITIAL AIM LABEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123710368	BULB-12v WY5W YELLOW WEG FITTING	Enquire	To Order
	1R123710366	BULB-12v55w H1 BLUE	Enquire	To Order
	3781814	Bulb 5W festoon type C5W	Enquire	To Order

...and 40 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	37111950AC	HEADLAMP ASSY - RH LHD (FED)	37111950AC HEADLAMP ASSY - RH LHD (FED) Up to (V) 303447	-	1	Enquire
1	37111951AC	HEADLAMP ASSY - LH LHD (FED)	37111951AC HEADLAMP ASSY - LH LHD (FED) Up to (V) 303447	-	1	Enquire
1	37111948AC	HEADLAMP ASSY - RH LHD (NON FED)	37111948AC HEADLAMP ASSY - RH LHD (NON FED) Up to (V) 303447	-	1	Enquire
1	37111949AC	HEADLAMP ASSY - LH LHD (NON FED)	37111949AC HEADLAMP ASSY - LH LHD (NON FED) Up to (V) 303447	-	1	Enquire
1	37111952AC	HEADLAMP ASSY - RH RHD	37111952AC HEADLAMP ASSY - RH RHD Up to (V) 303447	-	1	Enquire
1	37111953AC	HEADLAMP ASSY - LH RHD	37111953AC HEADLAMP ASSY - LH RHD Up to (V) 303447	-	1	Enquire
1	37111950AC	HEADLAMP ASSY - RH LHD (FED)	37111950AC HEADLAMP ASSY - RH LHD (FED) From (V) 303448	-	1	Enquire
1	37111951AC	HEADLAMP ASSY - LH LHD (FED)	37111951AC HEADLAMP ASSY - LH LHD (FED) From (V) 303448	-	1	Enquire
1	37111948AC	HEADLAMP ASSY - RH LHD (NON FED)	37111948AC HEADLAMP ASSY - RH LHD (NON FED) From (V) 303448	-	1	Enquire
1	37111949AC	HEADLAMP ASSY - LH LHD (NON FED)	37111949AC HEADLAMP ASSY - LH LHD (NON FED) From (V) 303448	-	1	Enquire
1	37111952AC	HEADLAMP ASSY - RH RHD	37111952AC HEADLAMP ASSY - RH RHD From (V) 303448	-	1	Enquire
1	37111953AC	HEADLAMP ASSY - LH RHD	37111953AC HEADLAMP ASSY - LH RHD From (V) 303448	-	1	Enquire
1	37125215AA	WURTH HEADLAMP APERTURE FOAM (ROLL)	37125215AA WURTH HEADLAMP APERTURE FOAM (ROLL)	-	2	Enquire
1	37123984AA	HEADLAMP APERTURE FOAM	37123984AA HEADLAMP APERTURE FOAM	-	2	Enquire
1	37111114AC	LINK LEAD - HEADLAMP	37111114AC LINK LEAD - HEADLAMP	-	2	Enquire
2	8123705AA	HEADLAMP BREATHER SYSTEM	8123705AA HEADLAMP BREATHER SYSTEM	-	2	Enquire
3	3783530	FILTER - HEADLAMP VENTING	3783530 FILTER - HEADLAMP VENTING	-	2	Enquire
3	3785343	TUBE CONNECTOR- STRAIGHT	3785343 TUBE CONNECTOR- STRAIGHT	-	3	Enquire
4	8123707AA/1	Convolute tubing, 1200mm long	8123707AA/1 Convolute tubing, 1200mm long	-	1	Enquire
5	8123707AA/3	Convolute tubing, 2200mm long	8123707AA/3 Convolute tubing, 2200mm long	-	1	Enquire
5	8123707AA/2	Convolute tubing, 700mm long	8123707AA/2 Convolute tubing, 700mm long	-	1	Enquire
6	3790075	Cable Tie, 290mm	3790075 Cable Tie, 290mm Tube assy retention	-	8	Enquire
6	699418	Tywrap, releasable	699418 Tywrap, releasable Filter retention	-	2	Enquire
7	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head Headlamp front fixing	-	2	Enquire
8	697114	SCREW M6 x 20 HEX FLANGE HEAD GRD 8.8	697114 SCREW M6 x 20 HEX FLANGE HEAD GRD 8.8 Headlamp rear fixing	-	2	Enquire
9	697134	WASHER M8 X 25 X 1.8 PLAIN ZINC YELL	697134 WASHER M8 X 25 X 1.8 PLAIN ZINC YELL Headlamp fixing	-	6	Enquire
9	3781216	REAR LIGHT ASSEMBLY- RH	3781216 REAR LIGHT ASSEMBLY- RH	-	1	Enquire
9	3785220	FOAM PAD-SELF ADH	3785220 FOAM PAD-SELF ADH	-	1	Enquire
10	3781217	REAR LIGHT ASSEMBLY- LH	3781217 REAR LIGHT ASSEMBLY- LH	-	1	Enquire
11	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head Rear lamp fixing	-	12	Enquire
12	881401	WASHER-NYLON 4.9 x 22.2	881401 WASHER-NYLON 4.9 x 22.2 Rear lamp fixing	-	12	Enquire
13	37123314AB	Finisher	37123314AB Finisher Up to (V) 401858	-	2	Enquire
13	37121709AA	LHS FRT SIDE/DI/FOG LAMP ROW	37121709AA LHS FRT SIDE/DI/FOG LAMP ROW Not USA/CDN	-	1	Enquire
13	37121710AA	RH Front Fog Lamp	37121710AA RH Front Fog Lamp Not USA/CDN	-	1	Enquire
13	37122813AA	RHS FRT SIDE - DI - FOG LAMP FED	37122813AA RHS FRT SIDE - DI - FOG LAMP FED USA/CDN	-	1	Enquire
13	37122812AA	LHS FRT SIDE - DI - FOG LAMP FED	37122812AA LHS FRT SIDE - DI - FOG LAMP FED USA/CDN	-	1	Enquire
14	3784037	LAMP-SIDEMARKER/REFL FRONT RH AMBER	3784037 LAMP-SIDEMARKER/REFL FRONT RH AMBER USA/CDN only	-	1	Enquire
14	699851	M5x16 REC'D PAN MC SCREW ST 1ST 2	699851 M5x16 REC'D PAN MC SCREW ST 1ST 2	-	6	Enquire
15	3784038	LAMP-SIDEMARKER/REFL FRONT LH AMBER	3784038 LAMP-SIDEMARKER/REFL FRONT LH AMBER USA/CDN only	-	1	Enquire
16	3784039	LAMP-SIDEMARKER/REFL REAR RH RED	3784039 LAMP-SIDEMARKER/REFL REAR RH RED USA/CDN only	-	1	Enquire
16	37110895AA	ASSY-RR S/MARKER LH	37110895AA ASSY-RR S/MARKER LH USA/CDN only	-	1	Enquire
16	697482	SCREW M4 x 20 PAN HEAD THREAD FORM	697482 SCREW M4 x 20 PAN HEAD THREAD FORM USA/CDN only	-	8	Enquire
17	37124857AA	Side repeater flasher, clear lens	37124857AA Side repeater flasher, clear lens	-	2	Enquire
17	3781222	SIDE REPEATER FLASHER	3781222 SIDE REPEATER FLASHER	-	2	Enquire
18	3781223	NUMBER PLATE LAMP-RH	3781223 NUMBER PLATE LAMP-RH	-	1	Enquire
18	3781224	NUMBER PLATE LAMP-LH	3781224 NUMBER PLATE LAMP-LH	-	1	Enquire
19	697798	SCREW-PAN HD S/TAP	697798 SCREW-PAN HD S/TAP Number plate light fixing	-	4	Enquire
19	37140024AA	REAR NUMBER PLATE LIGHT	37140024AA REAR NUMBER PLATE LIGHT Zagato	-	2	Enquire
19	37140610AAW	Rear number plate light, painted (37-140024-AA)	37140610AAW Rear number plate light, painted (37-140024-AA) DBAR1	-	2	Enquire
20	37122882AA	DOOR OPEN LAMP - RED	37122882AA DOOR OPEN LAMP - RED	-	2	Enquire
21	697289	WASHER-QUICK RELEASE FASTENER	697289 WASHER-QUICK RELEASE FASTENER Coupe	-	1	Enquire
21	8381811B	STUD ASSY-BEIGE	8381811B STUD ASSY-BEIGE Coupe	-	1	Enquire
21	8384159B	LIGHT-MAP/ROOF BEIGE	8384159B LIGHT-MAP/ROOF BEIGE	-	1	Enquire
22	697290	PUSH ON FIXER-M3	697290 PUSH ON FIXER-M3 Interior lamp fixing	-	4	Enquire
22	3785750	LEVEL INDICATOR- HEADLAMP(USA)	3785750 LEVEL INDICATOR- HEADLAMP(USA) USA only	-	2	Enquire
22	3784982	HIGH MOUNTED STOP LAMP IN BLACK	3784982 HIGH MOUNTED STOP LAMP IN BLACK Coupe	-	1	Enquire
22	3785271	SEAL STRIP-SELF ADH.	3785271 SEAL STRIP-SELF ADH.	-	1	Enquire
22	3781231	LAMP - INTERIOR	3781231 LAMP - INTERIOR	-	2	Enquire
23	3784220	HOUSING ASSY CHMSL CONVERTIBLE UNPAINTED	3784220 HOUSING ASSY CHMSL CONVERTIBLE UNPAINTED Up to (V) 300555	-	1	Enquire
24	3784219	CENTRE HIGH MOUNTED STOP LAMP	3784219 CENTRE HIGH MOUNTED STOP LAMP Up to (V) 300555	-	1	Enquire
24	3784881	Gasket, adhesive Volante	3784881 Gasket, adhesive Volante Up to (V) 300555	-	1	Enquire
24	3784882	Gasket, adhesive Volante	3784882 Gasket, adhesive Volante Up to (V) 300555	-	1	Enquire
25	697642	`U' NUT M4	697642 `U' NUT M4 Up to (V) 300555	-	2	Enquire
25	3786011	HIGH MTD STOP LAMP CONVERTIBLE	3786011 HIGH MTD STOP LAMP CONVERTIBLE From (V) 300556	-	1	Enquire
25	37123985AA	H/LAMP APERTURE FOAM	37123985AA H/LAMP APERTURE FOAM From (V) 300556	-	1	Enquire
25	3785600	HOUSING-CENTRE HIGH MOUNTED STOP LAMP CONVERTIBLE	3785600 HOUSING-CENTRE HIGH MOUNTED STOP LAMP CONVERTIBLE From (V) 300556	-	1	Enquire
25	697126	WASHER 5/16 PLAIN ZINC PLATED	697126 WASHER 5/16 PLAIN ZINC PLATED From (V) 300556	-	3	Enquire
25	37123670BD	TOWER NUT	37123670BD TOWER NUT From (V) 300556	-	3	Enquire
25	697028	ALPHA SEAL 132	697028 ALPHA SEAL 132 From (V) 300556	-	-	Enquire
26	702840	Nut & Washer, M6, Hex Flange Head	702840 Nut & Washer, M6, Hex Flange Head	-	2	Enquire
27	3713545	INT LIGHT-GLOVE BOX	3713545 INT LIGHT-GLOVE BOX	-	2	Enquire
28	697398	TIESTRAP-RELEASEABLE 4.6 x 165	697398 TIESTRAP-RELEASEABLE 4.6 x 165	-	2	Enquire
29	9781805	HEADLAMP INITIAL AIM LABEL	9781805 HEADLAMP INITIAL AIM LABEL	-	2	Enquire
30	1R123710368	BULB-12v WY5W YELLOW WEG FITTING	1R123710368 BULB-12v WY5W YELLOW WEG FITTING Part of bulb kit	-	1	Enquire
30	1R123710366	BULB-12v55w H1 BLUE	1R123710366 BULB-12v55w H1 BLUE Part of bulb kit	-	1	Enquire
30	3781814	Bulb 5W festoon type C5W	3781814 Bulb 5W festoon type C5W Part of bulb kit	-	1	Enquire
30	3781816	Bulb 21/5W type P21/5W	3781816 Bulb 21/5W type P21/5W Part of bulb kit	-	1	Enquire
30	3781822	MAXI FUSE 40 AMP ATO	3781822 MAXI FUSE 40 AMP ATO Part of bulb kit	-	1	Enquire
30	3781820	BULB CARRIER (FOAM)	3781820 BULB CARRIER (FOAM) Part of bulb kit	-	1	Enquire
30	3781819	FUSE EXTRACTOR KEY	3781819 FUSE EXTRACTOR KEY Part of bulb kit	-	1	Enquire
30	3781815	Bulb 21W type P21W	3781815 Bulb 21W type P21W Part of bulb kit	-	1	Enquire
30	690500881	BULB 12v 55w H3	690500881 BULB 12v 55w H3 Part of bulb kit	-	1	Enquire
30	3781821	BULB KIT LID	3781821 BULB KIT LID Part of bulb kit	-	1	Enquire
30	78140484AA	REAR FOG LIGHT/ REVERSE LIGHT BEZEL	78140484AA REAR FOG LIGHT/ REVERSE LIGHT BEZEL Zagato/DBAR1	-	1	Enquire
30	37140020AA	REAR REVERSING LAMP	37140020AA REAR REVERSING LAMP Zagato/DBAR1	-	1	Enquire
30	37140190AA	REAR LAMP ASSEMBLY RH	37140190AA REAR LAMP ASSEMBLY RH Zagato/DBAR1	-	1	Enquire
30	37140191AA	REAR LAMP ASSEMBLY LH	37140191AA REAR LAMP ASSEMBLY LH Zagato/DBAR1	-	1	Enquire
30	37140021AA	REAR FOG LAMP	37140021AA REAR FOG LAMP Zagato/DBAR1	-	1	Enquire
30	697495	SCREW No8 x 13 FLANGED AB S.T	697495 SCREW No8 x 13 FLANGED AB S.T Zagato/DBAR1	-	6	Enquire
30	60140246AA	TAIL LAMP HOUSING RH	60140246AA TAIL LAMP HOUSING RH Zagato	-	1	Enquire
30	60140247AA	TAIL LAMP HOUSING LH	60140247AA TAIL LAMP HOUSING LH Zagato	-	1	Enquire
30	37140022AB	Reflector, rear, RH	37140022AB Reflector, rear, RH Zagato	-	1	Enquire
30	37140023AB	Reflector, rear, LH	37140023AB Reflector, rear, LH Zagato	-	1	Enquire
30	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head Zagato	-	8	Enquire
30	60150126AA	TAIL LAMP HOUSING RH	60150126AA TAIL LAMP HOUSING RH DBAR1	-	1	Enquire
30	60150127AA	TAIL LAMP HOUSING LH	60150127AA TAIL LAMP HOUSING LH DBAR1	-	1	Enquire
30	37150002AB	Reflector, rear, RH	37150002AB Reflector, rear, RH DBAR1	-	1	Enquire
30	37150003AB	Reflector, rear, LH	37150003AB Reflector, rear, LH DBAR1	-	1	Enquire
30	697436	SPEED NUT	697436 SPEED NUT DBAR1	-	2	Enquire
30	40122953AA	BULB 88OX (FOGLAMP FRONT) 12V H27W/1 E1 24G	40122953AA BULB 88OX (FOGLAMP FRONT) 12V H27W/1 E1 24G	-	1	Enquire
30	40122951AA	Carrier, electrical spares (foam)	40122951AA Carrier, electrical spares (foam)	-	1	Enquire
30	40122960AA	BULB 3757A - NON FEDERAL INDICATOR	40122960AA BULB 3757A - NON FEDERAL INDICATOR	-	1	Enquire
30	200370709	BULB-FESTOON 12V 5W	200370709 BULB-FESTOON 12V 5W	-	1	Enquire
30	1R123710365	BULB-12vPY21W YELLOW BAYONET	1R123710365 BULB-12vPY21W YELLOW BAYONET	-	1	Enquire
30	40122959AA	BULB 3457NAK - FEDERAL INDICATOR YELLOW	40122959AA BULB 3457NAK - FEDERAL INDICATOR YELLOW	-	1	Enquire
30	690370707	Bulb, 12V 5W, Capless	690370707 Bulb, 12V 5W, Capless	-	1	Enquire
30	3785808	Conversion kit, RH to LH	3785808 Conversion kit, RH to LH	-	1	Enquire
30	40125544AB	BULB KIT NON FED	40125544AB BULB KIT NON FED	-	1	Enquire
30	40122947AA	ELECT. SPARES KIT COMPLETE - NON FED	40122947AA ELECT. SPARES KIT COMPLETE - NON FED	-	1	Enquire
30	3723423	Fuse Midi 7.5A	3723423 Fuse Midi 7.5A	-	1	Enquire
30	3723425	Fuse, Midi 15A	3723425 Fuse, Midi 15A	-	1	Enquire
30	3723426	Fuse, Midi 20A	3723426 Fuse, Midi 20A	-	1	Enquire
30	3723428	Fuse, Midi 30A	3723428 Fuse, Midi 30A	-	1	Enquire
30	3723422	Fuse, Midi 5A	3723422 Fuse, Midi 5A	-	1	Enquire
30	3783645	CATCH PLATE (CARPET BOOT)	3783645 CATCH PLATE (CARPET BOOT)	-	2	Enquire
30	3783099	STRAP	3783099 STRAP	-	2	Enquire
