Engine Compartment Installation of Aston Martin Aston Martin DB7 Vantage

View All

Aston Martin DB7 Vantage - Engine Compartment Installation

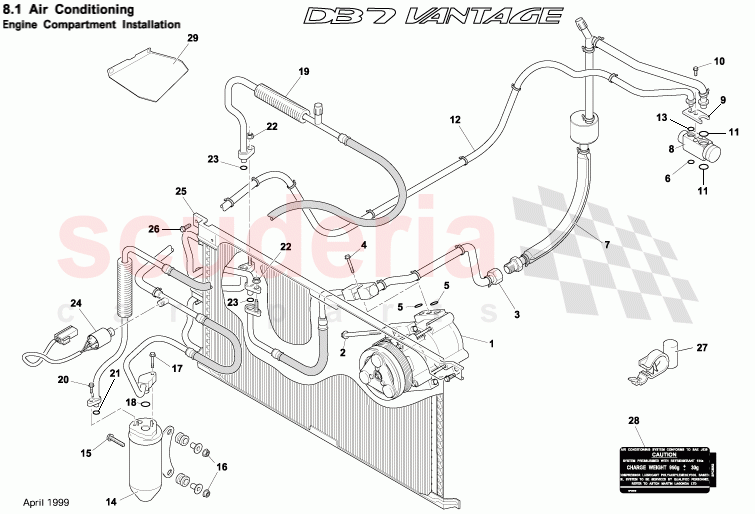

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	697800	BOLT M8 x1.25x 113.5 HEX FLG PILOT	$29.22	To Order

Photo	Part No	Description	Price (each)	Stock

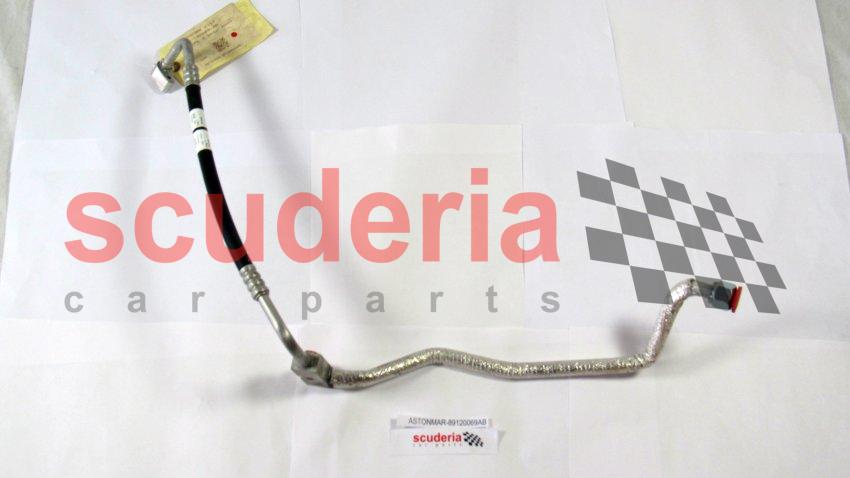

	89120069AB	Pipe & Hose Assy Evaporator to Condenser	$1,181.04	To Order

Photo	Part No	Description	Price (each)	Stock
	700554	O RING	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	700334PK	O RING-PACK OF 5	$8.13	To Order

Photo	Part No	Description	Price (each)	Stock
	89120068AC	PIPE - EVAPORATOR TO CONDENSER	$1,119.37	To Order

Photo	Part No	Description	Price (each)	Stock
	8982079	EXPANSION VALVE	$205.16	To Order

Photo	Part No	Description	Price (each)	Stock
	8982080	CLAMP PLATE	$11.41	To Order

Photo	Part No	Description	Price (each)	Stock
	HY53E804349AA	M6 X 14 SCREW HEX HD	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	700263	O RING	$3.71	To Order

Photo	Part No	Description	Price (each)	Stock
	89120465AC	PIPE & HOSE ASSY RECEIVER DRIER TO EVAPORATOR	$1,021.88	To Order

Photo	Part No	Description	Price (each)	Stock
	700555	O RING	$7.54	To Order

Photo	Part No	Description	Price (each)	Stock
	8985238	RECEIVER DRIER	$411.31	To Order

Photo	Part No	Description	Price (each)	Stock
	699125	SCREW M6 x 30 HEX 8.8	$0.07	To Order

Photo	Part No	Description	Price (each)	Stock
	697122	NUT M6 NYLOC	$0.09	To Order

Photo	Part No	Description	Price (each)	Stock
	699083	SCREW M6 x 30 FLG HD	$0.53	To Order

Photo	Part No	Description	Price (each)	Stock
	699833	O RING 7.66mm ID x 1.78mm SECTION	$3.49	To Order

Photo	Part No	Description	Price (each)	Stock
	89120464AB	PIPE & HOSE ASSY CONDENSER TO RECEIVER DRIER	$1,124.61	To Order

Photo	Part No	Description	Price (each)	Stock
	699084	SCREW M6 x 18 FLG HD	$0.53	To Order

Photo	Part No	Description	Price (each)	Stock
	699834	O RING	$4.80	To Order

Photo	Part No	Description	Price (each)	Stock
	695526	NUT M6 HEX FLG GRD 8 ZINC PLATE	$0.80	To Order

Photo	Part No	Description	Price (each)	Stock
	699830	O RING-A/C HOSE 10.82IDx1.78 H7T39	$4.80	To Order

Photo	Part No	Description	Price (each)	Stock
	8985240	A/C PRESSURE SWITCH	$296.46	To Order
	3790075	Cable Tie, 290mm	$0.12	To Order

Photo	Part No	Description	Price (each)	Stock
	8985239	A/C CONDENSER	$2,656.16	To Order

Photo	Part No	Description	Price (each)	Stock
	697119	SCREW M6 x 12 HEX FLANGE HEAD GRD 8.8	$1.34	To Order

Photo	Part No	Description	Price (each)	Stock
	3781862	CLIP HARN STUD MOUNT	$0.98	To Order

Photo	Part No	Description	Price (each)	Stock
	97123155AA	LABEL - AIR CON INFO	$8.70	To Order

Photo	Part No	Description	Price (each)	Stock
	8982083	DEFLECTOR SHIELD	$10.04	To Order
	699906	Clip, double C	Enquire	To Order
	89111601AB	PAG OIL DYE	$71.39	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	5R1319D629AA	AIR CONDITIONING COMPRESSOR & CLUTCH	5R1319D629AA AIR CONDITIONING COMPRESSOR & CLUTCH Zagato/DBAR1	$1,037.80	1
2	697800	BOLT M8 x1.25x 113.5 HEX FLG PILOT	697800 BOLT M8 x1.25x 113.5 HEX FLG PILOT	$29.22	3
3	89120069AB	Pipe & Hose Assy Evaporator to Condenser	89120069AB Pipe & Hose Assy Evaporator to Condenser Pipe assy to condenser	$1,181.04	1
5	700554	O RING	700554 O RING	$0.70	2
6	700334PK	O RING-PACK OF 5	700334PK O RING-PACK OF 5	$8.13	1
7	89120068AC	PIPE - EVAPORATOR TO CONDENSER	89120068AC PIPE - EVAPORATOR TO CONDENSER	$1,119.37	1
8	8982079	EXPANSION VALVE	8982079 EXPANSION VALVE	$205.16	1
9	8982080	CLAMP PLATE	8982080 CLAMP PLATE	$11.41	1
10	HY53E804349AA	M6 X 14 SCREW HEX HD	HY53E804349AA M6 X 14 SCREW HEX HD	$0.75	1
11	700263	O RING	700263 O RING	$3.71	2
12	89120465AC	PIPE & HOSE ASSY RECEIVER DRIER TO EVAPORATOR	89120465AC PIPE & HOSE ASSY RECEIVER DRIER TO EVAPORATOR	$1,021.88	1
13	700555	O RING	700555 O RING	$7.54	1
14	8985238	RECEIVER DRIER	8985238 RECEIVER DRIER	$411.31	1
15	699125	SCREW M6 x 30 HEX 8.8	699125 SCREW M6 x 30 HEX 8.8	$0.07	2
16	697122	NUT M6 NYLOC	697122 NUT M6 NYLOC	$0.09	2
17	699083	SCREW M6 x 30 FLG HD	699083 SCREW M6 x 30 FLG HD	$0.53	1
18	699833	O RING 7.66mm ID x 1.78mm SECTION	699833 O RING 7.66mm ID x 1.78mm SECTION	$3.49	1
19	89120464AB	PIPE & HOSE ASSY CONDENSER TO RECEIVER DRIER	89120464AB PIPE & HOSE ASSY CONDENSER TO RECEIVER DRIER	$1,124.61	1
20	699084	SCREW M6 x 18 FLG HD	699084 SCREW M6 x 18 FLG HD	$0.53	1
21	699834	O RING	699834 O RING	$4.80	1
22	695526	NUT M6 HEX FLG GRD 8 ZINC PLATE	695526 NUT M6 HEX FLG GRD 8 ZINC PLATE	$0.80	2
23	699830	O RING-A/C HOSE 10.82IDx1.78 H7T39	699830 O RING-A/C HOSE 10.82IDx1.78 H7T39	$4.80	2
24	8985240	A/C PRESSURE SWITCH	8985240 A/C PRESSURE SWITCH	$296.46	1
24	3790075	Cable Tie, 290mm	3790075 Cable Tie, 290mm	$0.12	2
25	8985239	A/C CONDENSER	8985239 A/C CONDENSER	$2,656.16	1
26	697119	SCREW M6 x 12 HEX FLANGE HEAD GRD 8.8	697119 SCREW M6 x 12 HEX FLANGE HEAD GRD 8.8	$1.34	2
27	3781862	CLIP HARN STUD MOUNT	3781862 CLIP HARN STUD MOUNT	$0.98	2
28	97123155AA	LABEL - AIR CON INFO	97123155AA LABEL - AIR CON INFO	$8.70	1
29	8982083	DEFLECTOR SHIELD	8982083 DEFLECTOR SHIELD	$10.04	1
29	699906	Clip, double C	699906 Clip, double C	-	1	Enquire
29	89111601AB	PAG OIL DYE	89111601AB PAG OIL DYE	$71.39	1
