Aston Martin DB7 Vantage - Vacuum System

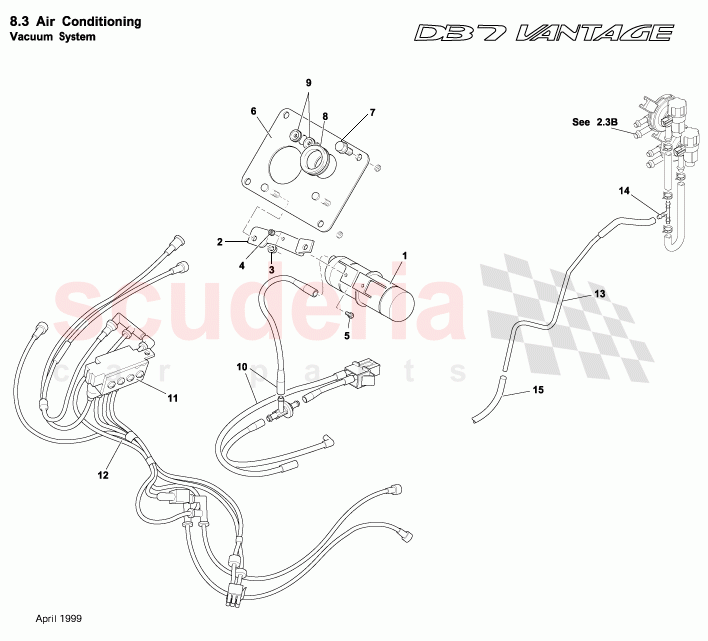

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	89122336AA	BRKT - TANK VAC RH	Enquire	To Order
	89122337AA	BRKT - TANK VAC LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	Enquire	To Order
	703162	NUT M8 HF 8 CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702295	Nut, M5, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697320	SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	20121495AC	ASSY - BULKHEAD HARNESS PLATE LH	Enquire	To Order
	20121494AC	ASSY - BULKHEAD HARNESS PLATE RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	530508	SCREW 5/16 UNF x 1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697804	GROMMET-15.7id 1.6PT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	89122334AB	HARNESS VAC SUPPLY RH	Enquire	To Order
	89122335AB	HARNESS VAC SUPPLY LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8982093	SOLENOID BANK(4 WAY)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8982150	Vacuum restrictor - brown	Enquire	To Order
	8982151	VACUUM RESTRICTOR BLUE	Enquire	To Order
	8982152	Vacuum restrictor	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	34120919AA	PIPE UNDERFLOOR VACUUM SIGNAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	692201	TEE-PIECE 6mm NYLON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34124965AA	VACUUM HOSE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	89122336AA	BRKT - TANK VAC RH	89122336AA BRKT - TANK VAC RH RHD	-	1	Enquire
2	89122337AA	BRKT - TANK VAC LH	89122337AA BRKT - TANK VAC LH LHD	-	1	Enquire
3	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	2	Enquire
3	703162	NUT M8 HF 8 CHROME FREE	703162 NUT M8 HF 8 CHROME FREE	-	2	Enquire
4	702295	Nut, M5, Hex Flange Head	702295 Nut, M5, Hex Flange Head	-	2	Enquire
5	697320	SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8	697320 SCREW M5 x 12 HEX FLANGE HEAD GRADE 8.8	-	2	Enquire
6	20121495AC	ASSY - BULKHEAD HARNESS PLATE LH	20121495AC ASSY - BULKHEAD HARNESS PLATE LH RHD	-	1	Enquire
6	20121494AC	ASSY - BULKHEAD HARNESS PLATE RH	20121494AC ASSY - BULKHEAD HARNESS PLATE RH LHD	-	1	Enquire
7	530508	SCREW 5/16 UNF x 1	530508 SCREW 5/16 UNF x 1	-	2	Enquire
9	697804	GROMMET-15.7id 1.6PT	697804 GROMMET-15.7id 1.6PT	-	2	Enquire
10	89122334AB	HARNESS VAC SUPPLY RH	89122334AB HARNESS VAC SUPPLY RH RHD	-	1	Enquire
10	89122335AB	HARNESS VAC SUPPLY LH	89122335AB HARNESS VAC SUPPLY LH LHD	-	1	Enquire
11	8982093	SOLENOID BANK(4 WAY)	8982093 SOLENOID BANK(4 WAY)	-	1	Enquire
12	8982150	Vacuum restrictor - brown	8982150 Vacuum restrictor - brown Part of item 12	-	1	Enquire
12	8982151	VACUUM RESTRICTOR BLUE	8982151 VACUUM RESTRICTOR BLUE Part of item 12	-	1	Enquire
12	8982152	Vacuum restrictor	8982152 Vacuum restrictor Part of item 12	-	1	Enquire
12	8982149	ASSY AIRCON VACUUM HARNESS	8982149 ASSY AIRCON VACUUM HARNESS	-	1	Enquire
13	34120919AA	PIPE UNDERFLOOR VACUUM SIGNAL	34120919AA PIPE UNDERFLOOR VACUUM SIGNAL	-	1	Enquire
14	692201	TEE-PIECE 6mm NYLON	692201 TEE-PIECE 6mm NYLON	-	1	Enquire
15	34124965AA	VACUUM HOSE	34124965AA VACUUM HOSE	-	1	Enquire
