Find Your Part

In Car Entertainment of Aston Martin Aston Martin DB7 Vantage

View All

Aston Martin DB7 Vantage - In Car Entertainment

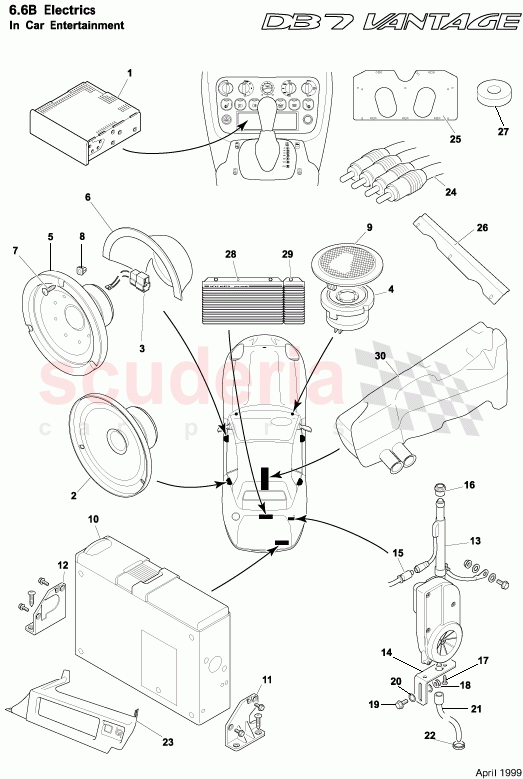

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	91619	RADIO CASSETTE UK/EU	Enquire	To Order
	37123945AA	CD/TUNER (ALPINE) CDA7865J JAPAN	Enquire	To Order
	91447	RADIO/CASSETTE-USA	Enquire	To Order

...and 11 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3783744	Loudspeaker pair, rear	Enquire	To Order
	3781908	LOUDSPEAKER-ICT 6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3784356	LOUDSPEAKER LINK LEAD-VOL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123710032	SPEAKER-DOOR TWEETER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3784582	LOUDSPEAKER 6in SINGLE CONE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3783357	HOOD-DOOR SPEAKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697799	SCREW-SELF TAPPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697421	NUT PLASTIC No10 LOKUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3781911	ASSY GRILLE TWEETER RR P/SHF	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37123725AA	CD AUTOCHANGER	Enquire	To Order
	3790413	CD LINK LEAD	Enquire	To Order
	3785933	CD AUTOCHANGER	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	37123960AA	MOUNTING BRACKET CD AUTOCHANGER RH	Enquire	To Order
	37122792AA	MOUNTING BRACKET CD AUTOCHANGER RH	Enquire	To Order
	37124366AA	Mounting bracket, CD autochanger, RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37123679AA	MOUNTING BRACKET CD AUTCHANGER ALPINE LH	Enquire	To Order
	37122793AA	MOUNTING BRACKET CD AUTOCHANGER LH	Enquire	To Order
	37124365AA	Mounting bracket, CD autochanger, LH	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3781917	AERIAL ASSEMBLY	Enquire	To Order
	3786096	AERIAL MAST-CHROME	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3783784	AERIAL BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3781919	AERIAL CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3781920	AERIAL SEALING GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697428	SCREW No10 x 1/2in S T REC FLANGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697335	NUT M6 HEX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697115	SCREW M6 x 12 HEX HEAD GRD 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697299	WASHER 1/4 S/PROOF INT	Enquire	To Order
	697123	WASHER 1/4 PLAIN FORM A	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3783520	DRAIN TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80122799AC	CD AUTOCHANGER COVER	Enquire	To Order
	3783519	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37123922AA	JAPAN ALPINE AMPLIFIER	Enquire	To Order
	37122861AA	LOUDSPEAKER 5 1/4 INCH C/W ADAPTOR RING ASSEMBLY	Enquire	To Order
	37122862AA	LOUDSPEAKER 5 1/4 INCH REAR	Enquire	To Order

...and 8 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	37123482AA	PHONO LEAD 5M	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80123775AA	ASSY BOARD-AMPLIFIER MOUNTING	Enquire	To Order
	80124197AA	ASSY BOARD-AMPLIFIER MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80123776AA	RETAINER	Enquire	To Order
	80123777AA	BRACKET-AMPLIFIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	91449	AMPLIFIER	Enquire	To Order
	37124129AA	AMPLIFIER - PICE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37123779AA	Cover, amplifier	Enquire	To Order
	37124281AA	AMPLIFIER COVER - BECKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37122869AA	SUB WOOFER ASSEMBLY	Enquire	To Order
	700729	Pin housing, 14 way	Enquire	To Order
	696927	TERMINAL	Enquire	To Order

...and 5 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	91619	RADIO CASSETTE UK/EU	91619 RADIO CASSETTE UK/EU From (V) 300556 Up to (V) 302252	-	1	Enquire
1	37123945AA	CD/TUNER (ALPINE) CDA7865J JAPAN	37123945AA CD/TUNER (ALPINE) CDA7865J JAPAN From (V) 300556 Up to (V) 302252	-	1	Enquire
1	91447	RADIO/CASSETTE-USA	91447 RADIO/CASSETTE-USA From (V) 300556 Up to (V) 302252	-	1	Enquire
1	3785934	RADIO/CASSETTE NAS	3785934 RADIO/CASSETTE NAS Up to (V) 300555	-	1	Enquire
1	3786340	RADIO/CD UNIT	3786340 RADIO/CD UNIT Up to (V) 300555	-	1	Enquire
1	37111945AA	RADIO CASSETTE - JAPAN	37111945AA RADIO CASSETTE - JAPAN Up to (V) 300555	-	1	Enquire
1	37124137AA	CD/tuner (optional) UK/Europe/RoW	37124137AA CD/tuner (optional) UK/Europe/RoW From (V) 302253	-	1	Enquire
1	37124132AA	Navigation map, West coast USA	37124132AA Navigation map, West coast USA From (V) 302253	-	1	Enquire
1	37124133AA	Navigation map, East coast USA	37124133AA Navigation map, East coast USA From (V) 302253	-	1	Enquire
1	91529	NAVIGATION UNIT-EURO	91529 NAVIGATION UNIT-EURO From (V) 302253	-	1	Enquire
1	91526	CASSETTE TUNER-EURO	91526 CASSETTE TUNER-EURO From (V) 302253	-	1	Enquire
1	37124130AA	Navigation map UK / Euro	37124130AA Navigation map UK / Euro From (V) 302253	-	1	Enquire
1	91527	CASSETTE TUNER-USA	91527 CASSETTE TUNER-USA From (V) 302253	-	1	Enquire
1	91530	NAVIGATION UNIT-USA	91530 NAVIGATION UNIT-USA From (V) 302253	-	1	Enquire
2	3783744	Loudspeaker pair, rear	3783744 Loudspeaker pair, rear Volante only	-	1	Enquire
2	3781908	LOUDSPEAKER-ICT 6	3781908 LOUDSPEAKER-ICT 6 Coupe only	-	2	Enquire
3	3784356	LOUDSPEAKER LINK LEAD-VOL	3784356 LOUDSPEAKER LINK LEAD-VOL Volante only	-	2	Enquire
4	1R123710032	SPEAKER-DOOR TWEETER	1R123710032 SPEAKER-DOOR TWEETER	-	2	Enquire
5	3784582	LOUDSPEAKER 6in SINGLE CONE	3784582 LOUDSPEAKER 6in SINGLE CONE	-	2	Enquire
6	3783357	HOOD-DOOR SPEAKER	3783357 HOOD-DOOR SPEAKER	-	2	Enquire
7	697799	SCREW-SELF TAPPING	697799 SCREW-SELF TAPPING	-	6	Enquire
8	697421	NUT PLASTIC No10 LOKUT	697421 NUT PLASTIC No10 LOKUT Speakers	-	6	Enquire
9	3781911	ASSY GRILLE TWEETER RR P/SHF	3781911 ASSY GRILLE TWEETER RR P/SHF Rear parcel shelf	-	2	Enquire
10	37123725AA	CD AUTOCHANGER	37123725AA CD AUTOCHANGER From (V) 300556 Up to (V) 302252	-	1	Enquire
10	3790413	CD LINK LEAD	3790413 CD LINK LEAD From (V) 300556 Up to (V) 302252	-	1	Enquire
10	3785933	CD AUTOCHANGER	3785933 CD AUTOCHANGER Up to (V) 300555	-	1	Enquire
10	37111667AA	CD LINK LEAD	37111667AA CD LINK LEAD Up to (V) 300555	-	1	Enquire
10	91528	CD AUTO CHANGER	91528 CD AUTO CHANGER From (V) 302253	-	1	Enquire
10	37124193AB	ICE LINK HARNESS	37124193AB ICE LINK HARNESS From (V) 302253	-	1	Enquire
11	37123960AA	MOUNTING BRACKET CD AUTOCHANGER RH	37123960AA MOUNTING BRACKET CD AUTOCHANGER RH From (V) 300556 Up to (V) 302252	-	1	Enquire
11	37122792AA	MOUNTING BRACKET CD AUTOCHANGER RH	37122792AA MOUNTING BRACKET CD AUTOCHANGER RH Up to (V) 300555	-	1	Enquire
11	37124366AA	Mounting bracket, CD autochanger, RH	37124366AA Mounting bracket, CD autochanger, RH From (V) 302253	-	1	Enquire
12	37123679AA	MOUNTING BRACKET CD AUTCHANGER ALPINE LH	37123679AA MOUNTING BRACKET CD AUTCHANGER ALPINE LH From (V) 300556 Up to (V) 302252	-	1	Enquire
12	37122793AA	MOUNTING BRACKET CD AUTOCHANGER LH	37122793AA MOUNTING BRACKET CD AUTOCHANGER LH Up to (V) 300555	-	1	Enquire
12	37124365AA	Mounting bracket, CD autochanger, LH	37124365AA Mounting bracket, CD autochanger, LH From (V) 302253	-	1	Enquire
12	83140493AB	BRACKET - CD AUTOCHANGER	83140493AB BRACKET - CD AUTOCHANGER Zagato	-	1	Enquire
12	700332	Nut, M6, paint clearing	700332 Nut, M6, paint clearing	-	4	Enquire
13	3781917	AERIAL ASSEMBLY	3781917 AERIAL ASSEMBLY Chrome finish	-	1	Enquire
13	3786096	AERIAL MAST-CHROME	3786096 AERIAL MAST-CHROME	-	1	Enquire
14	3783784	AERIAL BRACKET	3783784 AERIAL BRACKET	-	1	Enquire
15	3781919	AERIAL CABLE	3781919 AERIAL CABLE	-	1	Enquire
16	3781920	AERIAL SEALING GROMMET	3781920 AERIAL SEALING GROMMET	-	1	Enquire
17	697428	SCREW No10 x 1/2in S T REC FLANGE	697428 SCREW No10 x 1/2in S T REC FLANGE Aerial to brkt fixing	-	2	Enquire
18	697335	NUT M6 HEX	697335 NUT M6 HEX Aerial and earth fixings	-	2	Enquire
19	697115	SCREW M6 x 12 HEX HEAD GRD 8.8	697115 SCREW M6 x 12 HEX HEAD GRD 8.8 Aerial and earth fixings	-	2	Enquire
20	697299	WASHER 1/4 S/PROOF INT	697299 WASHER 1/4 S/PROOF INT Aerial and earth fixings	-	2	Enquire
20	697123	WASHER 1/4 PLAIN FORM A	697123 WASHER 1/4 PLAIN FORM A Aerial and earth fixings	-	2	Enquire
21	3783520	DRAIN TUBE	3783520 DRAIN TUBE	-	1	Enquire
22	80122799AC	CD AUTOCHANGER COVER	80122799AC CD AUTOCHANGER COVER Up to (V) 302252	-	1	Enquire
22	3783519	GROMMET	3783519 GROMMET	-	1	Enquire
23	37123922AA	JAPAN ALPINE AMPLIFIER	37123922AA JAPAN ALPINE AMPLIFIER Premium equipment (Optional)	-	1	Enquire
23	37122861AA	LOUDSPEAKER 5 1/4 INCH C/W ADAPTOR RING ASSEMBLY	37122861AA LOUDSPEAKER 5 1/4 INCH C/W ADAPTOR RING ASSEMBLY Premium equipment (Optional)	-	2	Enquire
23	37122862AA	LOUDSPEAKER 5 1/4 INCH REAR	37122862AA LOUDSPEAKER 5 1/4 INCH REAR Premium equipment (Optional)	-	2	Enquire
23	37122865AA	LOUDSPEAKER TWEETER C/W FIXING ASSEMBLY	37122865AA LOUDSPEAKER TWEETER C/W FIXING ASSEMBLY Premium equipment (Optional)	-	2	Enquire
23	91395	AMPLIFIER	91395 AMPLIFIER Premium equipment (Optional)	-	2	Enquire
23	37122867AA	LEAD CAPACITIVE TWEETER	37122867AA LEAD CAPACITIVE TWEETER Premium equipment (Optional)	-	2	Enquire
23	37122861AA	LOUDSPEAKER 5 1/4 INCH C/W ADAPTOR RING ASSEMBLY	37122861AA LOUDSPEAKER 5 1/4 INCH C/W ADAPTOR RING ASSEMBLY Premium equipment (Optional)	-	4	Enquire
23	80124251AA	CD AUTOCHANGER COVER ASSY	80124251AA CD AUTOCHANGER COVER ASSY From (V) 302253	-	1	Enquire
23	80124084AA	Cover, CD autochanger	80124084AA Cover, CD autochanger From (V) 302253	-	1	Enquire
23	87124604AA	Blanking plate, radio	87124604AA Blanking plate, radio Japan	-	1	Enquire
23	697400	TIE STRAP	697400 TIE STRAP	-	1	Enquire
24	37123482AA	PHONO LEAD 5M	37123482AA PHONO LEAD 5M Premium equipment (Optional)	-	2	Enquire
25	80123775AA	ASSY BOARD-AMPLIFIER MOUNTING	80123775AA ASSY BOARD-AMPLIFIER MOUNTING From (V) 300556 Up to (V) 302252	-	1	Enquire
25	80124197AA	ASSY BOARD-AMPLIFIER MOUNTING	80124197AA ASSY BOARD-AMPLIFIER MOUNTING From (V) 302253	-	1	Enquire
26	80123776AA	RETAINER	80123776AA RETAINER From (V) 300556 Up to (V) 302252	-	1	Enquire
26	80123777AA	BRACKET-AMPLIFIER	80123777AA BRACKET-AMPLIFIER From (V) 300556	-	3	Enquire
27	80124429AA	AMP MOUNTING BOARD - RETAINER - UPPER	80124429AA AMP MOUNTING BOARD - RETAINER - UPPER From (V) 302253	-	1	Enquire
27	80124430AA	AMP MOUNTING BOARD - RETAINER - LOWER	80124430AA AMP MOUNTING BOARD - RETAINER - LOWER From (V) 302253	-	1	Enquire
27	6282400	SPACER-WING APRON	6282400 SPACER-WING APRON From (V) 300556	-	3	Enquire
27	699058	PROTECTION CAPS BLACK	699058 PROTECTION CAPS BLACK	-	3	Enquire
28	91449	AMPLIFIER	91449 AMPLIFIER From (V) 300556 Up to (V) 302252	-	1	Enquire
28	37124129AA	AMPLIFIER - PICE	37124129AA AMPLIFIER - PICE From (V) 302253	-	1	Enquire
29	37123779AA	Cover, amplifier	37123779AA Cover, amplifier From (V) 300556 Up to (V) 302252	-	1	Enquire
29	37124281AA	AMPLIFIER COVER - BECKER	37124281AA AMPLIFIER COVER - BECKER From (V) 302253	-	1	Enquire
30	37122869AA	SUB WOOFER ASSEMBLY	37122869AA SUB WOOFER ASSEMBLY Premium equipment (Optional)	-	1	Enquire
30	700729	Pin housing, 14 way	700729 Pin housing, 14 way For radio link lead repairs	-	1	Enquire
30	696927	TERMINAL	696927 TERMINAL For radio link lead repairs	-	14	Enquire
30	37125022AA	SUB WOOFER ASSY - FEDERAL 03MY	37125022AA SUB WOOFER ASSY - FEDERAL 03MY From (V) 303448	-	1	Enquire
30	1R12372675AA	AERIAL ANTENNA CABLE	1R12372675AA AERIAL ANTENNA CABLE Zagato	-	1	Enquire
30	3785459	CD magazine, Kenwood	3785459 CD magazine, Kenwood	-	1	Enquire
30	3756113	6 DISC MAGAZINE CLEAR	3756113 6 DISC MAGAZINE CLEAR	-	1	Enquire
30	3785884	CD CARTRIDGE-6 DISC	3785884 CD CARTRIDGE-6 DISC	-	1	Enquire
