Interior Installation of Aston Martin Aston Martin DB7 Vantage

View All

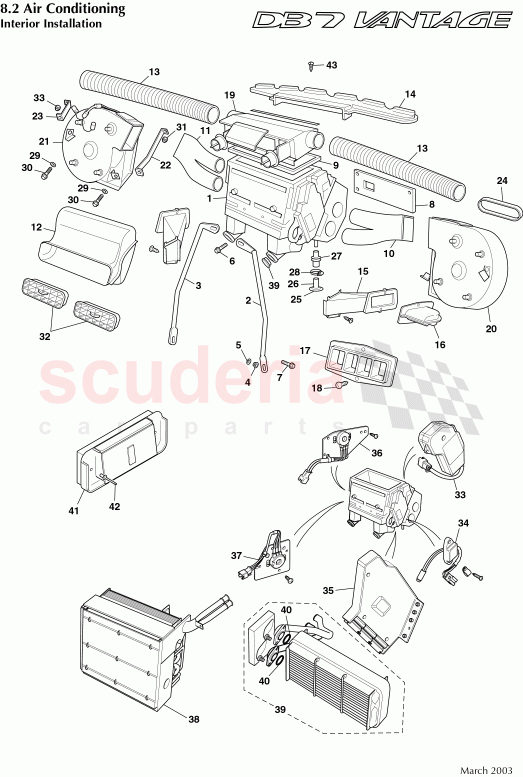

Aston Martin DB7 Vantage - Interior Installation

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	8123756AA	STRUT ASSY-HEATER /AIRCON RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8123757AA	STRUT ASSY-HEATER /AIRCON LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8982097	WASHER MALE SPHERICAL SEATING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8982098	WASHER FEMALE SPHERICAL SEATING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697119	SCREW M6 x 12 HEX FLANGE HEAD GRD 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697106	SCREW M8 x 20 HEX FLANGE HD GRD 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8990042	SEAL AIRCON TO BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8983049	SEAL-TOP DUCT	Enquire	To Order
	697411	Adhesive tape	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8982101	DUCT-AIR BLOWER TO AIRCON RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8982102	DUCT-AIR BLOWER TO AIRCON LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	89121414AA	DUCT CENTRE VENT CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8984286	DUCT - FACIA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37123985AA	H/LAMP APERTURE FOAM	Enquire	To Order
	8982105	DUCT - DEMIST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8984279	ASSY DUCT FOOT OUTLET-RH	Enquire	To Order
	8984280	ASSY-DUCT FOOT OUTLET-LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8984283	DUCT-PASSENGER FOOTWELL	Enquire	To Order
	697498PK	SCREW-No6x13 FLG(10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8984288	DUCT DIFFUSER	Enquire	To Order
	8984289	DUCT DIFFUSER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697802	SCREW-S/TAPP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8982112	VACUUM MTR-FT FLAP & TOP FLAP	Enquire	To Order
	89124946AA	Polyethylene foam CFPE20	Enquire	To Order
	8984138	DUCT ASSY- DISTRIBUTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	91510	BLOWER MOTOR ASSY RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	91511	BLOWER MOTOR ASSY LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8982131	ASSY STAY VOLUTE TO BODY INNER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8983051	STAY ASSY-BLOWER TO BODY OUTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8982132	SEAL - ASSY BLOWERS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8985245	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8982134	TUBE CONDENSATE DRN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3280370	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8982136	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697299	WASHER 1/4 S/PROOF INT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697414	SCREW 1/4inUNFx3/4in HEX HEAD GRADE 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697157	NUT 1/4 UNF NYLOC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8972290	IN CAR SENSOR	Enquire	To Order
	8982138	ASSY SENSOR AMBIENT	Enquire	To Order
	697612	CABLE TIE STRAP	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	8985242	Foot duct, RH	Enquire	To Order
	8985243	Foot duct, LH	Enquire	To Order
	8983651	Motor, servo vacuum	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8983652	EVAPORATOR SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8982094	ECU AIR CON CROPPED CASE MK3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8982087	ASSY POT & MTG PLATE UPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8986017	ASSY POT & MTG-LOWER	Enquire	To Order
	89122289AA	BLANKING PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

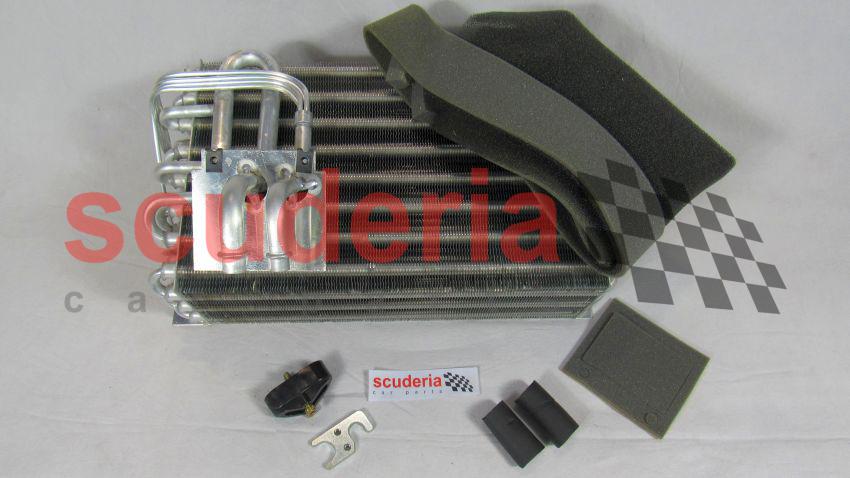

	8985130	EVAPORATOR ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8983656P	HTR MATRIX & SEALS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8983657	`O' RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3481380	EDGE FINISHER- DRAFLEX STRIP	Enquire	To Order
	6785244	Gasket, air extraction trunk	Enquire	To Order
	6784524	ASSY TRUNK AIR EXTRACTION SALOON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6785244	Gasket, air extraction trunk	Enquire	To Order
	6784862	SHROUD-AIR EXTRACT'N	Enquire	To Order
	6784524	ASSY TRUNK AIR EXTRACTION SALOON	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	89124873AA	TUBE CENTRE CONSOLE	Enquire	To Order
	697449	SCREW No8 x 13 S T FLANGED AB	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	8985730	SWITCH-WATER TEMP	8985730 SWITCH-WATER TEMP	-	1	Enquire
2	8123756AA	STRUT ASSY-HEATER /AIRCON RH	8123756AA STRUT ASSY-HEATER /AIRCON RH	-	1	Enquire
3	8123757AA	STRUT ASSY-HEATER /AIRCON LH	8123757AA STRUT ASSY-HEATER /AIRCON LH	-	1	Enquire
4	8982097	WASHER MALE SPHERICAL SEATING	8982097 WASHER MALE SPHERICAL SEATING	-	2	Enquire
5	8982098	WASHER FEMALE SPHERICAL SEATING	8982098 WASHER FEMALE SPHERICAL SEATING	-	2	Enquire
6	697119	SCREW M6 x 12 HEX FLANGE HEAD GRD 8.8	697119 SCREW M6 x 12 HEX FLANGE HEAD GRD 8.8	-	2	Enquire
7	697106	SCREW M8 x 20 HEX FLANGE HD GRD 8.8	697106 SCREW M8 x 20 HEX FLANGE HD GRD 8.8	-	2	Enquire
8	8990042	SEAL AIRCON TO BODY	8990042 SEAL AIRCON TO BODY	-	1	Enquire
9	8983049	SEAL-TOP DUCT	8983049 SEAL-TOP DUCT	-	1	Enquire
9	697411	Adhesive tape	697411 Adhesive tape	-	1	Enquire
10	8982101	DUCT-AIR BLOWER TO AIRCON RH	8982101 DUCT-AIR BLOWER TO AIRCON RH	-	1	Enquire
11	8982102	DUCT-AIR BLOWER TO AIRCON LH	8982102 DUCT-AIR BLOWER TO AIRCON LH	-	1	Enquire
12	89121414AA	DUCT CENTRE VENT CONNECTOR	89121414AA DUCT CENTRE VENT CONNECTOR	-	1	Enquire
13	8984286	DUCT - FACIA	8984286 DUCT - FACIA	-	2	Enquire
14	37123985AA	H/LAMP APERTURE FOAM	37123985AA H/LAMP APERTURE FOAM	-	1	Enquire
14	8982105	DUCT - DEMIST	8982105 DUCT - DEMIST	-	1	Enquire
15	8984279	ASSY DUCT FOOT OUTLET-RH	8984279 ASSY DUCT FOOT OUTLET-RH	-	1	Enquire
15	8984280	ASSY-DUCT FOOT OUTLET-LH	8984280 ASSY-DUCT FOOT OUTLET-LH	-	1	Enquire
16	8984283	DUCT-PASSENGER FOOTWELL	8984283 DUCT-PASSENGER FOOTWELL USA/CDN only	-	1	Enquire
16	697498PK	SCREW-No6x13 FLG(10)	697498PK SCREW-No6x13 FLG(10)	-	2	Enquire
17	8984288	DUCT DIFFUSER	8984288 DUCT DIFFUSER Not USA/CDN	-	1	Enquire
17	8984289	DUCT DIFFUSER	8984289 DUCT DIFFUSER Not USA/CDN	-	1	Enquire
18	697802	SCREW-S/TAPP	697802 SCREW-S/TAPP Not USA/CDN	-	4	Enquire
19	8982112	VACUUM MTR-FT FLAP & TOP FLAP	8982112 VACUUM MTR-FT FLAP & TOP FLAP Front flap & top flap	-	2	Enquire
19	89124946AA	Polyethylene foam CFPE20	89124946AA Polyethylene foam CFPE20	-	1	Enquire
19	8984138	DUCT ASSY- DISTRIBUTION	8984138 DUCT ASSY- DISTRIBUTION	-	1	Enquire
20	91510	BLOWER MOTOR ASSY RH	91510 BLOWER MOTOR ASSY RH	-	1	Enquire
21	91511	BLOWER MOTOR ASSY LH	91511 BLOWER MOTOR ASSY LH	-	1	Enquire
22	8982131	ASSY STAY VOLUTE TO BODY INNER	8982131 ASSY STAY VOLUTE TO BODY INNER	-	2	Enquire
23	8983051	STAY ASSY-BLOWER TO BODY OUTER	8983051 STAY ASSY-BLOWER TO BODY OUTER	-	2	Enquire
24	8982132	SEAL - ASSY BLOWERS	8982132 SEAL - ASSY BLOWERS	-	2	Enquire
25	8985245	GROMMET	8985245 GROMMET	-	2	Enquire
26	8982134	TUBE CONDENSATE DRN	8982134 TUBE CONDENSATE DRN	-	2	Enquire
27	3280370	CONNECTOR	3280370 CONNECTOR	-	2	Enquire
28	8982136	CLIP	8982136 CLIP	-	2	Enquire
29	697299	WASHER 1/4 S/PROOF INT	697299 WASHER 1/4 S/PROOF INT	-	4	Enquire
30	697414	SCREW 1/4inUNFx3/4in HEX HEAD GRADE 8.8	697414 SCREW 1/4inUNFx3/4in HEX HEAD GRADE 8.8	-	4	Enquire
31	697157	NUT 1/4 UNF NYLOC	697157 NUT 1/4 UNF NYLOC	-	4	Enquire
32	8972290	IN CAR SENSOR	8972290 IN CAR SENSOR	-	1	Enquire
32	8982138	ASSY SENSOR AMBIENT	8982138 ASSY SENSOR AMBIENT	-	1	Enquire
32	697612	CABLE TIE STRAP	697612 CABLE TIE STRAP	-	10	Enquire
32	8983052	VENT CENTRE	8983052 VENT CENTRE	-	2	Enquire
33	8985242	Foot duct, RH	8985242 Foot duct, RH	-	1	Enquire
33	8985243	Foot duct, LH	8985243 Foot duct, LH	-	1	Enquire
33	8983651	Motor, servo vacuum	8983651 Motor, servo vacuum	-	2	Enquire
34	8983652	EVAPORATOR SENSOR	8983652 EVAPORATOR SENSOR	-	1	Enquire
35	8982094	ECU AIR CON CROPPED CASE MK3	8982094 ECU AIR CON CROPPED CASE MK3	-	1	Enquire
36	8982087	ASSY POT & MTG PLATE UPPER	8982087 ASSY POT & MTG PLATE UPPER	-	1	Enquire
37	8986017	ASSY POT & MTG-LOWER	8986017 ASSY POT & MTG-LOWER	-	1	Enquire
37	89122289AA	BLANKING PLUG	89122289AA BLANKING PLUG	-	2	Enquire
38	8985130	EVAPORATOR ASSY	8985130 EVAPORATOR ASSY	-	1	Enquire
39	8983656P	HTR MATRIX & SEALS	8983656P HTR MATRIX & SEALS	-	1	Enquire
40	8983657	`O' RING	8983657 `O' RING	-	2	Enquire
41	3481380	EDGE FINISHER- DRAFLEX STRIP	3481380 EDGE FINISHER- DRAFLEX STRIP Coupe	-	2	Enquire
41	6785244	Gasket, air extraction trunk	6785244 Gasket, air extraction trunk Coupe	-	4	Enquire
41	6784524	ASSY TRUNK AIR EXTRACTION SALOON	6784524 ASSY TRUNK AIR EXTRACTION SALOON Coupe	-	4	Enquire
42	6785244	Gasket, air extraction trunk	6785244 Gasket, air extraction trunk Volante	-	2	Enquire
42	6784862	SHROUD-AIR EXTRACT'N	6784862 SHROUD-AIR EXTRACT'N Volante	-	2	Enquire
42	6784524	ASSY TRUNK AIR EXTRACTION SALOON	6784524 ASSY TRUNK AIR EXTRACTION SALOON Volante	-	2	Enquire
42	6783776	AIR EXTRACTION-TRUNK ASSY VOLANTE	6783776 AIR EXTRACTION-TRUNK ASSY VOLANTE Volante	-	2	Enquire
42	697803	WASHER RIVET 0.250 -0.312	697803 WASHER RIVET 0.250 -0.312 Volante	-	20	Enquire
42	697803	WASHER RIVET 0.250 -0.312	697803 WASHER RIVET 0.250 -0.312 Coupe	-	16	Enquire
43	89124873AA	TUBE CENTRE CONSOLE	89124873AA TUBE CENTRE CONSOLE	-	2	Enquire
43	697449	SCREW No8 x 13 S T FLANGED AB	697449 SCREW No8 x 13 S T FLANGED AB	-	6	Enquire
