Battery and Tray of Aston Martin Aston Martin DB7 Vantage

View All

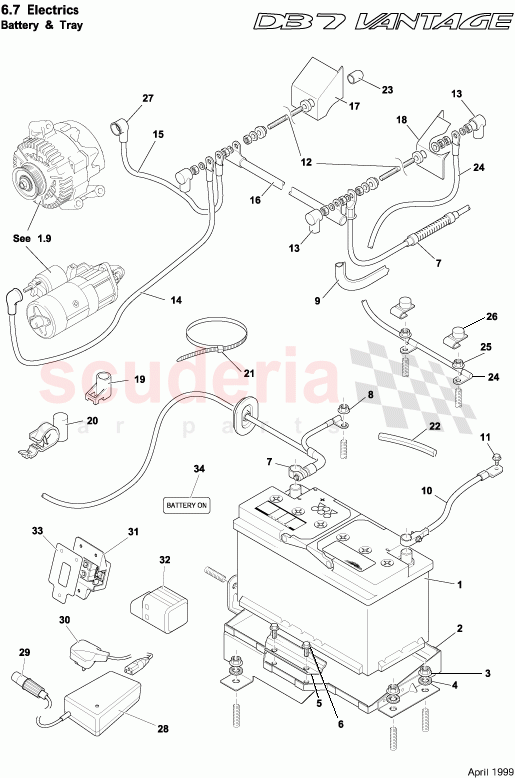

Aston Martin DB7 Vantage - Battery and Tray

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3785504	Battery, dry charged, 90 Ah	Enquire	To Order
	9781846	Label, battery warning	Enquire	To Order
	3785928	BATTERY-SVR CALCIUM 12V 90AH RC170mins 680AMPS (SAE)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37121372AA	Tray assy, battery	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703162	NUT M8 HF 8 CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697452	Washer, M8 x 24 x 1.8, Black	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3781852	CLAMP - BATTERY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697450	SCREW M8 x 16 HEX HEAD STAINLESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37121093AD	CABLE - BATTERY POSITIVE	Enquire	To Order
	37124217AC	BDS TO FRONT OF VEHICLE CABLE	Enquire	To Order
	37124214AC	BATTERY CABLE TO BDS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703162	NUT M8 HF 8 CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86123758AA	HEAT REFLECTIVE SHEATH BATTERY CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37123820AA	ASSY CABLE BATTERY NEGATIVE	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	697416	SCREW M6 x 22 HEX FLANGE HEAD K/LOK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9G4310A752AB	TERMINAL POST ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	986517	BOOT RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37120151AE	Cable, starter motor to terminal post	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37121096AC	CABLE - ALTERNATOR TO TERMINAL POST S/O DRG 37-121144-AE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37111588AB	CABLE TERM/TERM POST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3781859	COVER TERM POST - RH BATT POS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3781860	COVER TERM POST -LH BATT POS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4281204	CABLE TIE MOUNT- STUD FIXING	Enquire	To Order
	3790327	Cable tie, high temp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3781862	CLIP HARN STUD MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3790075	Cable Tie, 290mm	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	3381094	Strip, Edge Protection, 65mm	Enquire	To Order
	3785233	Strip, edge protection (20mm)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37122840AA	CAP - BULKHEAD POWER STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37120701AB	BUSBAR BULKHEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703162	NUT M8 HF 8 CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3785236	Protector, Power Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3781897	BOOT RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4G433711274	BATTERY COND UK/E/HK	Enquire	To Order
	4G433711382	BATTERY COND AUS/NZ	Enquire	To Order
	4G433711285	BATTERY COND ROW	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	37124124AA	BATTERY CONDITIONER LINK LEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37124340AA	BATTERY CONDITIONER SUPPLY LEAD - UK EIRE H/KNG SINGAPORE	Enquire	To Order
	97124515AA	LABEL BATTERY CONDITONER KIT UK EIRE HK SINGAPORE	Enquire	To Order
	37124341AA	BATTERY CONDITIONER SUPPLY LEAD - AUSTRALIA N/ZLND	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	1R12370397AE	Switch - Battery Disconnect	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R12373789AA	REMOTE BATTERY DISCONNECT SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83124409AA	BDS BACKPLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	97124373AA	LABEL - BATTERY ON	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3785504	Battery, dry charged, 90 Ah	3785504 Battery, dry charged, 90 Ah	-	1	Enquire
1	9781846	Label, battery warning	9781846 Label, battery warning	-	1	Enquire
1	3785928	BATTERY-SVR CALCIUM 12V 90AH RC170mins 680AMPS (SAE)	3785928 BATTERY-SVR CALCIUM 12V 90AH RC170mins 680AMPS (SAE)	-	1	Enquire
2	37121372AA	Tray assy, battery	37121372AA Tray assy, battery	-	1	Enquire
3	703162	NUT M8 HF 8 CHROME FREE	703162 NUT M8 HF 8 CHROME FREE	-	4	Enquire
4	697452	Washer, M8 x 24 x 1.8, Black	697452 Washer, M8 x 24 x 1.8, Black	-	5	Enquire
5	3781852	CLAMP - BATTERY	3781852 CLAMP - BATTERY	-	1	Enquire
6	697450	SCREW M8 x 16 HEX HEAD STAINLESS	697450 SCREW M8 x 16 HEX HEAD STAINLESS	-	1	Enquire
7	37121093AD	CABLE - BATTERY POSITIVE	37121093AD CABLE - BATTERY POSITIVE Up to (V) 302252	-	1	Enquire
7	37124217AC	BDS TO FRONT OF VEHICLE CABLE	37124217AC BDS TO FRONT OF VEHICLE CABLE From (V) 302253	-	1	Enquire
7	37124214AC	BATTERY CABLE TO BDS	37124214AC BATTERY CABLE TO BDS From (V) 302253	-	1	Enquire
8	703162	NUT M8 HF 8 CHROME FREE	703162 NUT M8 HF 8 CHROME FREE	-	1	Enquire
9	86123758AA	HEAT REFLECTIVE SHEATH BATTERY CABLE	86123758AA HEAT REFLECTIVE SHEATH BATTERY CABLE	-	2	Enquire
10	37123820AA	ASSY CABLE BATTERY NEGATIVE IN STOCK	37123820AA ASSY CABLE BATTERY NEGATIVE IN STOCK	-	1	Enquire
11	697416	SCREW M6 x 22 HEX FLANGE HEAD K/LOK	697416 SCREW M6 x 22 HEX FLANGE HEAD K/LOK Battery earth to chassis	-	1	Enquire
12	9G4310A752AB	TERMINAL POST ASSY	9G4310A752AB TERMINAL POST ASSY	-	2	Enquire
13	986517	BOOT RUBBER	986517 BOOT RUBBER	-	1	Enquire
14	37120151AE	Cable, starter motor to terminal post	37120151AE Cable, starter motor to terminal post	-	1	Enquire
15	37121096AC	CABLE - ALTERNATOR TO TERMINAL POST S/O DRG 37-121144-AE	37121096AC CABLE - ALTERNATOR TO TERMINAL POST S/O DRG 37-121144-AE	-	1	Enquire
16	37111588AB	CABLE TERM/TERM POST	37111588AB CABLE TERM/TERM POST	-	1	Enquire
17	3781859	COVER TERM POST - RH BATT POS	3781859 COVER TERM POST - RH BATT POS	-	1	Enquire
18	3781860	COVER TERM POST -LH BATT POS	3781860 COVER TERM POST -LH BATT POS	-	1	Enquire
19	4281204	CABLE TIE MOUNT- STUD FIXING	4281204 CABLE TIE MOUNT- STUD FIXING	-	10	Enquire
19	3790327	Cable tie, high temp	3790327 Cable tie, high temp	-	10	Enquire
20	3781862	CLIP HARN STUD MOUNT	3781862 CLIP HARN STUD MOUNT	-	3	Enquire
21	3790075	Cable Tie, 290mm IN STOCK	3790075 Cable Tie, 290mm IN STOCK	-	3	Enquire
22	3381094	Strip, Edge Protection, 65mm	3381094 Strip, Edge Protection, 65mm	-	1	Enquire
22	3785233	Strip, edge protection (20mm)	3785233 Strip, edge protection (20mm)	-	1	Enquire
23	37122840AA	CAP - BULKHEAD POWER STUD	37122840AA CAP - BULKHEAD POWER STUD	-	1	Enquire
24	37120701AB	BUSBAR BULKHEAD	37120701AB BUSBAR BULKHEAD Up to (V) 302252	-	1	Enquire
25	703162	NUT M8 HF 8 CHROME FREE	703162 NUT M8 HF 8 CHROME FREE	-	2	Enquire
26	3785236	Protector, Power Stud	3785236 Protector, Power Stud	-	3	Enquire
27	3781897	BOOT RUBBER	3781897 BOOT RUBBER	-	1	Enquire
28	4G433711274	BATTERY COND UK/E/HK	4G433711274 BATTERY COND UK/E/HK UK, Eire, Hong Kong, Singapore	-	1	Enquire
28	4G433711382	BATTERY COND AUS/NZ	4G433711382 BATTERY COND AUS/NZ Australia, New Zealand	-	1	Enquire
28	4G433711285	BATTERY COND ROW	4G433711285 BATTERY COND ROW Switzerland	-	1	Enquire
28	4G433711205	BATT COND USA/CA/JAP	4G433711205 BATT COND USA/CA/JAP USA, Canada	-	1	Enquire
28	4G433711285	BATTERY COND ROW	4G433711285 BATTERY COND ROW Denmark	-	1	Enquire
28	4G433711285	BATTERY COND ROW	4G433711285 BATTERY COND ROW Italy	-	1	Enquire
28	4G433711205	BATT COND USA/CA/JAP	4G433711205 BATT COND USA/CA/JAP Japan	-	1	Enquire
28	4G433711285	BATTERY COND ROW	4G433711285 BATTERY COND ROW ROW	-	1	Enquire
28	83124210AA	Packaging box, battery conditioner From (V) 302253	83124210AA Packaging box, battery conditioner From (V) 302253	-	1	Enquire
28	1R12374631AA	Battery conditioner From (V) 302253	1R12374631AA Battery conditioner From (V) 302253	-	1	Enquire
29	37124124AA	BATTERY CONDITIONER LINK LEAD	37124124AA BATTERY CONDITIONER LINK LEAD	-	1	Enquire
30	37124340AA	BATTERY CONDITIONER SUPPLY LEAD - UK EIRE H/KNG SINGAPORE	37124340AA BATTERY CONDITIONER SUPPLY LEAD - UK EIRE H/KNG SINGAPORE UK, Eire, Hong Kong, Singapore	-	1	Enquire
30	97124515AA	LABEL BATTERY CONDITONER KIT UK EIRE HK SINGAPORE	97124515AA LABEL BATTERY CONDITONER KIT UK EIRE HK SINGAPORE UK, Eire, Hong Kong, Singapore	-	1	Enquire
30	37124341AA	BATTERY CONDITIONER SUPPLY LEAD - AUSTRALIA N/ZLND	37124341AA BATTERY CONDITIONER SUPPLY LEAD - AUSTRALIA N/ZLND Australia, New Zealand	-	1	Enquire
30	97124516AA	LABEL BATTERY CONDITIONER KIT AUS NZ	97124516AA LABEL BATTERY CONDITIONER KIT AUS NZ Australia, New Zealand	-	1	Enquire
30	37124346AA	BATTERY CONDITIONER SUPPLY LEAD - SWITZERLAND	37124346AA BATTERY CONDITIONER SUPPLY LEAD - SWITZERLAND Switzerland	-	1	Enquire
30	37124347AA	Supply lead, battery conditioner From (V) 302253	37124347AA Supply lead, battery conditioner From (V) 302253 USA, Canada	-	1	Enquire
30	97124521AA	LABEL BATTERY CONDITIONER KIT SWITZERLAND	97124521AA LABEL BATTERY CONDITIONER KIT SWITZERLAND Switzerland	-	1	Enquire
30	97124522AA	LABEL BATTERY CONDITIONER KIT N AMERICA	97124522AA LABEL BATTERY CONDITIONER KIT N AMERICA USA, Canada	-	1	Enquire
30	37124342AA	BATTERY CONDITIONER SUPPLY LEAD - DENMARK	37124342AA BATTERY CONDITIONER SUPPLY LEAD - DENMARK Denmark	-	1	Enquire
30	97124517AA	LABEL BATTERY CONDITIONER KIT DENMARK	97124517AA LABEL BATTERY CONDITIONER KIT DENMARK Denmark	-	1	Enquire
30	37124344AA	BATTERY CONDITIONER SUPPLY LEAD - ITALY	37124344AA BATTERY CONDITIONER SUPPLY LEAD - ITALY Italy	-	1	Enquire
30	37124345AA	BATTERY CONDITIONER SUPPLY LEAD - JAPAN	37124345AA BATTERY CONDITIONER SUPPLY LEAD - JAPAN Japan	-	1	Enquire
30	97124519AA	LABEL BATTERY CONDITIONER KIT ITALY	97124519AA LABEL BATTERY CONDITIONER KIT ITALY Italy	-	1	Enquire
30	97124520AA	LABEL BATTERY CONDITIONER KIT JAPAN	97124520AA LABEL BATTERY CONDITIONER KIT JAPAN Japan	-	1	Enquire
30	37124343AA	Supply lead, battery conditioner From (V) 302253	37124343AA Supply lead, battery conditioner From (V) 302253 ROW	-	1	Enquire
30	97124518AA	LABEL BATTERY CONDITIONER KIT EUROPE	97124518AA LABEL BATTERY CONDITIONER KIT EUROPE ROW	-	1	Enquire
31	1R12370397AE	Switch - Battery Disconnect	1R12370397AE Switch - Battery Disconnect From (V) 302253	-	1	Enquire
32	1R12373789AA	REMOTE BATTERY DISCONNECT SWITCH	1R12373789AA REMOTE BATTERY DISCONNECT SWITCH From (V) 302253	-	1	Enquire
33	83124409AA	BDS BACKPLATE	83124409AA BDS BACKPLATE From (V) 302253	-	1	Enquire
34	97124373AA	LABEL - BATTERY ON	97124373AA LABEL - BATTERY ON From (V) 302253	-	1	Enquire
