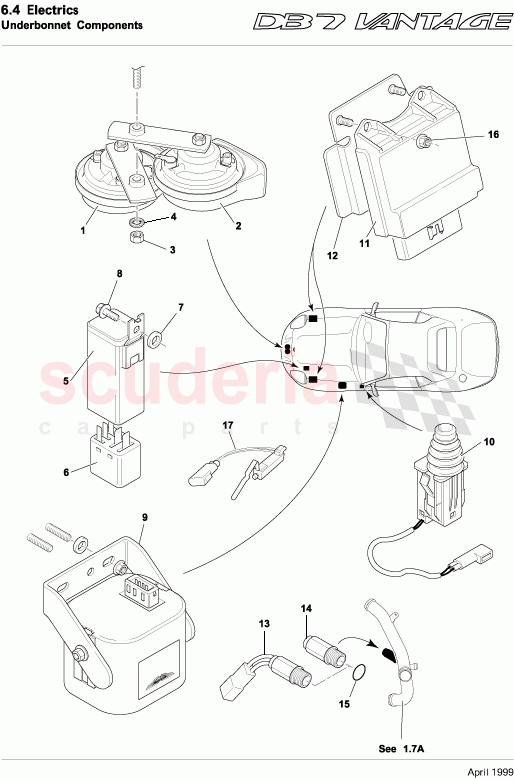

Aston Martin DB7 Vantage - Underbonnet Components

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	37122428AA	HORN-HIGH NOTE ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37122429AA	HORN-LOW NOTE ASSY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699897	DYRALOC M8 DAL A NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	699898	M8 NYLON SPACER 2MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3784729	RELAY MODULE SINGLE LATCHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3785427	RELAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3786500	SECURITY ECU 303MHz	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703265	Screw, M6 x 16, Hex Flange Head	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3784328	SECURITY SIREN ASSY	Enquire	To Order
	700673	NUT AND WASHER ASSY M6 x 1.0 HEX (PAINT SCRAPER)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3784326	BONNET SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	697398	TIESTRAP-RELEASEABLE 4.6 x 165	Enquire	To Order
	3785291	MODULE-MSF	Enquire	To Order
	3790075	Cable Tie, 290mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33120741AD	ASSY BRACKET MTG MISFIRE MODULE RH	Enquire	To Order
	700332	Nut, M6, paint clearing	Enquire	To Order
	697119	SCREW M6 x 12 HEX FLANGE HEAD GRD 8.8	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123210112	CYL BLOCK HTR 240v	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	1R123210113	CYL BLOCK HTR-120v	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9085345	WHEEL SPEED SENSOR	Enquire	To Order
	699220	TIE STRAP RELEASABLE	Enquire	To Order
	3286515	WASHER-SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	700332	Nut, M6, paint clearing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3885597	TEMP SENSOR-EXTERNAL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	37122428AA	HORN-HIGH NOTE ASSY	37122428AA HORN-HIGH NOTE ASSY	-	1	Enquire
2	37122429AA	HORN-LOW NOTE ASSY	37122429AA HORN-LOW NOTE ASSY	-	1	Enquire
3	699897	DYRALOC M8 DAL A NUT	699897 DYRALOC M8 DAL A NUT	-	1	Enquire
4	699898	M8 NYLON SPACER 2MM	699898 M8 NYLON SPACER 2MM	-	2	Enquire
5	3784729	RELAY MODULE SINGLE LATCHING	3784729 RELAY MODULE SINGLE LATCHING	-	1	Enquire
6	3785427	RELAY	3785427 RELAY	-	1	Enquire
7	3786500	SECURITY ECU 303MHz	3786500 SECURITY ECU 303MHz	-	3	Enquire
8	703265	Screw, M6 x 16, Hex Flange Head	703265 Screw, M6 x 16, Hex Flange Head	-	1	Enquire
9	3784328	SECURITY SIREN ASSY	3784328 SECURITY SIREN ASSY	-	1	Enquire
9	700673	NUT AND WASHER ASSY M6 x 1.0 HEX (PAINT SCRAPER)	700673 NUT AND WASHER ASSY M6 x 1.0 HEX (PAINT SCRAPER)	-	2	Enquire
10	3784326	BONNET SWITCH	3784326 BONNET SWITCH	-	1	Enquire
11	697398	TIESTRAP-RELEASEABLE 4.6 x 165	697398 TIESTRAP-RELEASEABLE 4.6 x 165	-	1	Enquire
11	3785291	MODULE-MSF	3785291 MODULE-MSF	-	2	Enquire
11	3790075	Cable Tie, 290mm	3790075 Cable Tie, 290mm	-	3	Enquire
12	33120741AD	ASSY BRACKET MTG MISFIRE MODULE RH	33120741AD ASSY BRACKET MTG MISFIRE MODULE RH	-	1	Enquire
12	700332	Nut, M6, paint clearing	700332 Nut, M6, paint clearing	-	1	Enquire
12	697119	SCREW M6 x 12 HEX FLANGE HEAD GRD 8.8	697119 SCREW M6 x 12 HEX FLANGE HEAD GRD 8.8	-	1	Enquire
13	1R123210112	CYL BLOCK HTR 240v	1R123210112 CYL BLOCK HTR 240v	-	1	Enquire
14	1R123210113	CYL BLOCK HTR-120v	1R123210113 CYL BLOCK HTR-120v	-	1	Enquire
15	9085345	WHEEL SPEED SENSOR	9085345 WHEEL SPEED SENSOR See also sect 6.6D	-	2	Enquire
15	699220	TIE STRAP RELEASABLE	699220 TIE STRAP RELEASABLE	-	1	Enquire
15	3286515	WASHER-SEALING	3286515 WASHER-SEALING	-	1	Enquire
16	700332	Nut, M6, paint clearing	700332 Nut, M6, paint clearing	-	2	Enquire
17	3885597	TEMP SENSOR-EXTERNAL	3885597 TEMP SENSOR-EXTERNAL	-	1	Enquire
