Instruments and Controls 2 of Aston Martin Aston Martin DB7 Vantage

View All

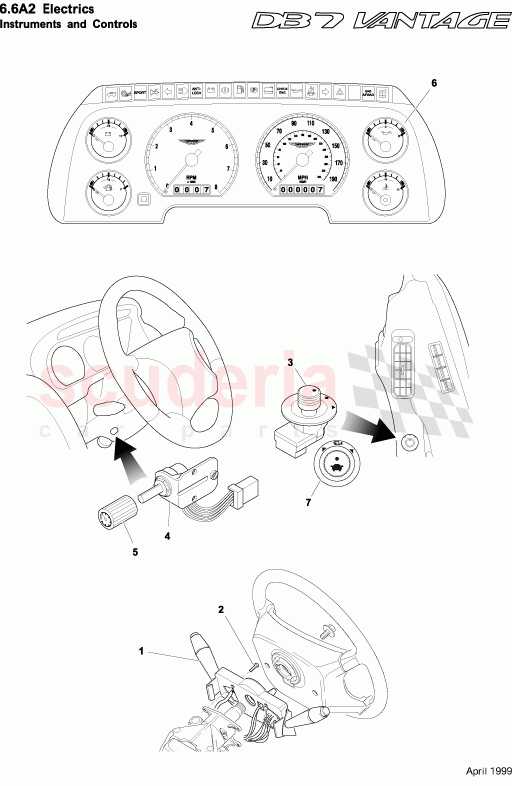

Aston Martin DB7 Vantage - Instruments and Controls 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	37121674AB	ASSY - COLUMN SWITCHGEAR	Enquire	To Order
	3785565	CANCELLATION CASSETE V12	Enquire	To Order
	37123588AB	ASSY-COLUMN S/GEAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703177	M5 TORX SCREW CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3781840	SWITCH - MIRROR ADJUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3784389	DIMMER POTENTIOMETER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	3784390	KNOB-DIMMER SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	91437M	INST.PACK(MPH) UK TT	Enquire	To Order
	91437M	INST.PACK(MPH) UK TT	Enquire	To Order
	91437M	INST.PACK(MPH) UK TT	Enquire	To Order

...and 63 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	37124744AA	MIRROR FOLD SWITCH	Enquire	To Order
	3885815	INST.PACK CORNER COVER LHS	Enquire	To Order
	3885816	INST.PACK CORNER COVER RHS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	37121674AB	ASSY - COLUMN SWITCHGEAR	37121674AB ASSY - COLUMN SWITCHGEAR Up to (V) 300555	-	1	Enquire
1	3785565	CANCELLATION CASSETE V12	3785565 CANCELLATION CASSETE V12 Up to (V) 300555	-	1	Enquire
1	37123588AB	ASSY-COLUMN S/GEAR	37123588AB ASSY-COLUMN S/GEAR From (V) 300556	-	1	Enquire
2	703177	M5 TORX SCREW CHROME FREE	703177 M5 TORX SCREW CHROME FREE	-	4	Enquire
3	3781840	SWITCH - MIRROR ADJUST	3781840 SWITCH - MIRROR ADJUST	-	1	Enquire
4	3784389	DIMMER POTENTIOMETER	3784389 DIMMER POTENTIOMETER	-	1	Enquire
5	3784390	KNOB-DIMMER SWITCH	3784390 KNOB-DIMMER SWITCH	-	1	Enquire
6	91437M	INST.PACK(MPH) UK TT	91437M INST.PACK(MPH) UK TT From (V) 300556 up to (V) 400831	-	1	Enquire
6	91437M	INST.PACK(MPH) UK TT	91437M INST.PACK(MPH) UK TT From (V) 400832 up to (V) 301786	-	1	Enquire
6	91437M	INST.PACK(MPH) UK TT	91437M INST.PACK(MPH) UK TT From (V) 301787 up to (V) 303447	-	1	Enquire
6	3885768	INSTRUMENT PACK USA MPH TOUCHTRONIC MILEAGE PRESET	3885768 INSTRUMENT PACK USA MPH TOUCHTRONIC MILEAGE PRESET From (V) 300556 up to (V) 400831	-	1	Enquire
6	3885768	INSTRUMENT PACK USA MPH TOUCHTRONIC MILEAGE PRESET	3885768 INSTRUMENT PACK USA MPH TOUCHTRONIC MILEAGE PRESET From (V) 400832 up to (V) 301786	-	1	Enquire
6	3885768	INSTRUMENT PACK USA MPH TOUCHTRONIC MILEAGE PRESET	3885768 INSTRUMENT PACK USA MPH TOUCHTRONIC MILEAGE PRESET From (V) 301787 up to (V) 303447	-	1	Enquire
6	3885762	INSTRUMENT PACK UK MPH MANUAL MILEAGE PRESET	3885762 INSTRUMENT PACK UK MPH MANUAL MILEAGE PRESET From (V) 300556 up to (V) 400831	-	1	Enquire
6	3885762	INSTRUMENT PACK UK MPH MANUAL MILEAGE PRESET	3885762 INSTRUMENT PACK UK MPH MANUAL MILEAGE PRESET From (V) 400832 up to (V) 301786	-	1	Enquire
6	3885762	INSTRUMENT PACK UK MPH MANUAL MILEAGE PRESET	3885762 INSTRUMENT PACK UK MPH MANUAL MILEAGE PRESET From (V) 301787 up to (V) 303447	-	1	Enquire
6	3885763	INSTRUMENT PACK UK MPH AUTO MILEAGE PRESET	3885763 INSTRUMENT PACK UK MPH AUTO MILEAGE PRESET From (V) 300556 up to (V) 400831	-	1	Enquire
6	3885763	INSTRUMENT PACK UK MPH AUTO MILEAGE PRESET	3885763 INSTRUMENT PACK UK MPH AUTO MILEAGE PRESET From (V) 400832 up to (V) 301786	-	1	Enquire
6	3885763	INSTRUMENT PACK UK MPH AUTO MILEAGE PRESET	3885763 INSTRUMENT PACK UK MPH AUTO MILEAGE PRESET From (V) 301787 up to (V) 303447	-	1	Enquire
6	3885767	INSTRUMENT PACK EURO KPH TOUCHTRONIC MILEAGE PRESET	3885767 INSTRUMENT PACK EURO KPH TOUCHTRONIC MILEAGE PRESET From (V) 300556 up to (V) 400831	-	1	Enquire
6	3885767	INSTRUMENT PACK EURO KPH TOUCHTRONIC MILEAGE PRESET	3885767 INSTRUMENT PACK EURO KPH TOUCHTRONIC MILEAGE PRESET From (V) 400832 up to (V) 301786	-	1	Enquire
6	3885767	INSTRUMENT PACK EURO KPH TOUCHTRONIC MILEAGE PRESET	3885767 INSTRUMENT PACK EURO KPH TOUCHTRONIC MILEAGE PRESET From (V) 301787 up to (V) 303447	-	1	Enquire
6	3885760	INSTRUMENT PACK USA MPH MANUAL MILEAGE PRESET	3885760 INSTRUMENT PACK USA MPH MANUAL MILEAGE PRESET From (V) 300556 up to (V) 400831	-	1	Enquire
6	3885760	INSTRUMENT PACK USA MPH MANUAL MILEAGE PRESET	3885760 INSTRUMENT PACK USA MPH MANUAL MILEAGE PRESET From (V) 400832 up to (V) 301786	-	1	Enquire
6	3885760	INSTRUMENT PACK USA MPH MANUAL MILEAGE PRESET	3885760 INSTRUMENT PACK USA MPH MANUAL MILEAGE PRESET From (V) 301787 up to (V) 303447	-	1	Enquire
6	3885761	INSTRUMENT PACK USA MPH AUTO MILEAGE PRESET	3885761 INSTRUMENT PACK USA MPH AUTO MILEAGE PRESET From (V) 300556 up to (V) 400831	-	1	Enquire
6	3885761	INSTRUMENT PACK USA MPH AUTO MILEAGE PRESET	3885761 INSTRUMENT PACK USA MPH AUTO MILEAGE PRESET From (V) 400832 up to (V) 301786	-	1	Enquire
6	3885761	INSTRUMENT PACK USA MPH AUTO MILEAGE PRESET	3885761 INSTRUMENT PACK USA MPH AUTO MILEAGE PRESET From (V) 301787 up to (V) 303447	-	1	Enquire
6	3885764	INSTRUMENT PACK EURO KPH MANUAL MILEAGE PRESET	3885764 INSTRUMENT PACK EURO KPH MANUAL MILEAGE PRESET From (V) 300556 up to (V) 400831	-	1	Enquire
6	3885764	INSTRUMENT PACK EURO KPH MANUAL MILEAGE PRESET	3885764 INSTRUMENT PACK EURO KPH MANUAL MILEAGE PRESET From (V) 400832 up to (V) 301786	-	1	Enquire
6	3885764	INSTRUMENT PACK EURO KPH MANUAL MILEAGE PRESET	3885764 INSTRUMENT PACK EURO KPH MANUAL MILEAGE PRESET From (V) 301787 up to (V) 303447	-	1	Enquire
6	91737M	INST.PACK(KPH)EURO A	91737M INST.PACK(KPH)EURO A From (V) 300556 up to (V) 400831	-	1	Enquire
6	91737M	INST.PACK(KPH)EURO A	91737M INST.PACK(KPH)EURO A From (V) 400832 up to (V) 301786	-	1	Enquire
6	91737M	INST.PACK(KPH)EURO A	91737M INST.PACK(KPH)EURO A From (V) 301787 up to (V) 303447	-	1	Enquire
6	697401	SCREW No8 x 1/2 PAN HD S.T.`B'	697401 SCREW No8 x 1/2 PAN HD S.T.`B' Instrument pack attach	-	2	Enquire
6	697621	SPRING NUT	697621 SPRING NUT Instrument pack attach	-	2	Enquire
6	3786159	BULB-12V 1W2 (BLUE)	3786159 BULB-12V 1W2 (BLUE) Complete with holder	-	30	Enquire
6	38120263AAM	INST PACK-UK MPS	38120263AAM INST PACK-UK MPS Up to (V) 300555	-	1	Enquire
6	38121107AAM	INST PACK-UK MPS	38121107AAM INST PACK-UK MPS Up to (V) 300555	-	1	Enquire
6	38120265AAM	INST PACK-FED MPS	38120265AAM INST PACK-FED MPS Up to (V) 300555	-	1	Enquire
6	38121109AAM	INST PACK-FED MPS	38121109AAM INST PACK-FED MPS Up to (V) 300555	-	1	Enquire
6	38120264AAM	INST PACK-EURO MPS	38120264AAM INST PACK-EURO MPS Up to (V) 300555	-	1	Enquire
6	38121108AAM	INST PACK-EURO MPS	38121108AAM INST PACK-EURO MPS Up to (V) 300555	-	1	Enquire
6	XR1F10849PA	Instrument pack, Euro (KPH) touchtron, white dials	XR1F10849PA Instrument pack, Euro (KPH) touchtron, white dials Customer option	-	1	Enquire
6	XR1F10849RA	INSTRUMENT PACK TIPTRONIC MPH/KPH UK	XR1F10849RA INSTRUMENT PACK TIPTRONIC MPH/KPH UK Customer option	-	1	Enquire
6	XR1F10849NA	Instrument pack, UK (MPH/KPH) auto, white dials	XR1F10849NA Instrument pack, UK (MPH/KPH) auto, white dials Customer option	-	1	Enquire
6	XR1F10849KA	Instrument pack, Euro (KPH) manual, white dials	XR1F10849KA Instrument pack, Euro (KPH) manual, white dials Customer option	-	1	Enquire
6	XR1F10849LA	Instrument pack, UK (MPH/KPH) man, white dials	XR1F10849LA Instrument pack, UK (MPH/KPH) man, white dials Customer option	-	1	Enquire
6	XR1F10849MA	Instrument pack, Euro (KPH) auto, white dials	XR1F10849MA Instrument pack, Euro (KPH) auto, white dials Customer option	-	1	Enquire
6	XR1F10849UA	Instrument pack (MPH/KPH) t/tron white USA	XR1F10849UA Instrument pack (MPH/KPH) t/tron white USA Customer option	-	1	Enquire
6	XR1F10849TA	INSTRUMENT PACK AUTO FED MPH/KPH	XR1F10849TA INSTRUMENT PACK AUTO FED MPH/KPH Customer option	-	1	Enquire
6	3886103	INST.PACK(MPH) UK TT	3886103 INST.PACK(MPH) UK TT From (V) 303448	-	1	Enquire
6	XR1F10849SA	Instrument pack (MPH/KPH) man, white USA	XR1F10849SA Instrument pack (MPH/KPH) man, white USA Customer option	-	1	Enquire
6	3886106	INST.PACK EURO TT	3886106 INST.PACK EURO TT From (V) 303448	-	1	Enquire
6	3886098	INST PACK(MPH) USA M	3886098 INST PACK(MPH) USA M From (V) 303448	-	1	Enquire
6	3886100	INSTRUMENT PACK USA MPH TOUCHTRONIC MILEAGE PRESET	3886100 INSTRUMENT PACK USA MPH TOUCHTRONIC MILEAGE PRESET From (V) 303448	-	1	Enquire
6	3886101	INST.PACK(MPH) UK M	3886101 INST.PACK(MPH) UK M From (V) 303448	-	1	Enquire
6	91654M	INST.PACK (MPH) UK A	91654M INST.PACK (MPH) UK A From (V) 303448	-	1	Enquire
6	3886104	INST.PACK (KPH) MAN	3886104 INST.PACK (KPH) MAN From (V) 303448	-	1	Enquire
6	91653M	INST.PACK(KPH)AUTO A	91653M INST.PACK(KPH)AUTO A From (V) 303448	-	1	Enquire
6	91657	INST PACK-USA MPH A	91657 INST PACK-USA MPH A From (V) 303448	-	1	Enquire
6	3886101	INST.PACK(MPH) UK M	3886101 INST.PACK(MPH) UK M Zagato	-	1	Enquire
6	3886104	INST.PACK (KPH) MAN	3886104 INST.PACK (KPH) MAN Zagato	-	1	Enquire
6	3R1F10849EAM	INST.PACK(KPH)TT MPS	3R1F10849EAM INST.PACK(KPH)TT MPS GT	-	1	Enquire
6	3R1F10849AAM	INST.PACK(KPH) MPS	3R1F10849AAM INST.PACK(KPH) MPS GT	-	1	Enquire
6	3R1F10849GAM	INST.PACK(MPH) MPS	3R1F10849GAM INST.PACK(MPH) MPS GT	-	1	Enquire
6	3R1F10849FAM	INST.PACK(MPH)TT MPS	3R1F10849FAM INST.PACK(MPH)TT MPS GT	-	1	Enquire
6	3R1F10849CAM	INST.PACK(KPH) MPS	3R1F10849CAM INST.PACK(KPH) MPS GT	-	1	Enquire
6	91650M	INST PACK-USA MPH TT	91650M INST PACK-USA MPH TT GT	-	1	Enquire
6	3R1F10849HAM	INST.PACK(MPH) MPS	3R1F10849HAM INST.PACK(MPH) MPS GT	-	1	Enquire
6	3R1F10849BAM	INST.PACK(MPH)UK MPS	3R1F10849BAM INST.PACK(MPH)UK MPS GT	-	1	Enquire
6	3R1F10849DAM	INST.PACK(MPH)UK MPS	3R1F10849DAM INST.PACK(MPH)UK MPS GT	-	1	Enquire
6	3381094	Strip, Edge Protection, 65mm	3381094 Strip, Edge Protection, 65mm	-	2	Enquire
7	37124744AA	MIRROR FOLD SWITCH	37124744AA MIRROR FOLD SWITCH From (V) 302253	-	1	Enquire
7	3885815	INST.PACK CORNER COVER LHS	3885815 INST.PACK CORNER COVER LHS	-	2	Enquire
7	3885816	INST.PACK CORNER COVER RHS	3885816 INST.PACK CORNER COVER RHS	-	2	Enquire
