Name: Windscreen Wipers
Rating: 5.0 (1 reviews)

Windscreen Wipers of Aston Martin Aston Martin DB7 Vantage

View All

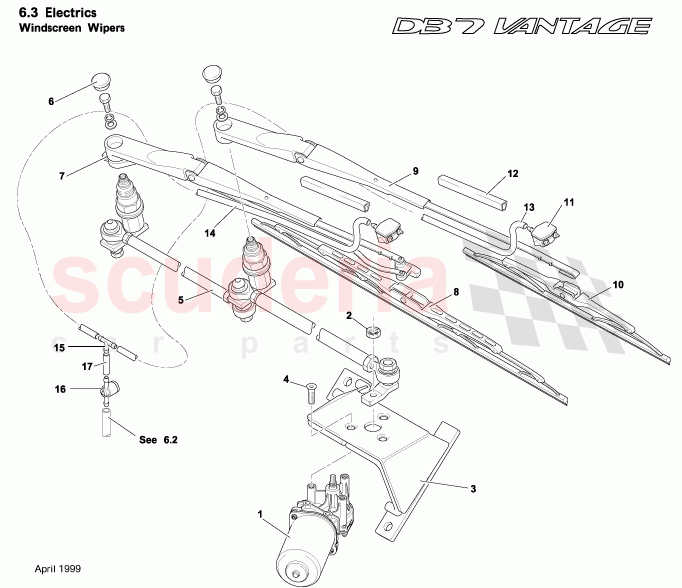

Aston Martin DB7 Vantage - Windscreen Wipers

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	3784976	W/SCREEN WIPER MOTOR	$679.64	To Order

Photo	Part No	Description	Price (each)	Stock
	3782034	BINX NUT	$2.25	To Order

Photo	Part No	Description	Price (each)	Stock
	37121086AB	BRACKET ASSY WIPER MOTOR RHD	$538.59	To Order
	37121087AB	BRACKET ASSY WIPER MOTOR LHD	$171.57	To Order

Photo	Part No	Description	Price (each)	Stock
	697603	Screw, M6 x 25, Csk Socket Hd	$0.29	To Order

Photo	Part No	Description	Price (each)	Stock
	3784231	WIPER ROD & SPINDLE ASSY RHD	$682.01	To Order
	3784232	WIPER ROD & SPINDLE ASSY LHD	$654.43	To Order

Photo	Part No	Description	Price (each)	Stock

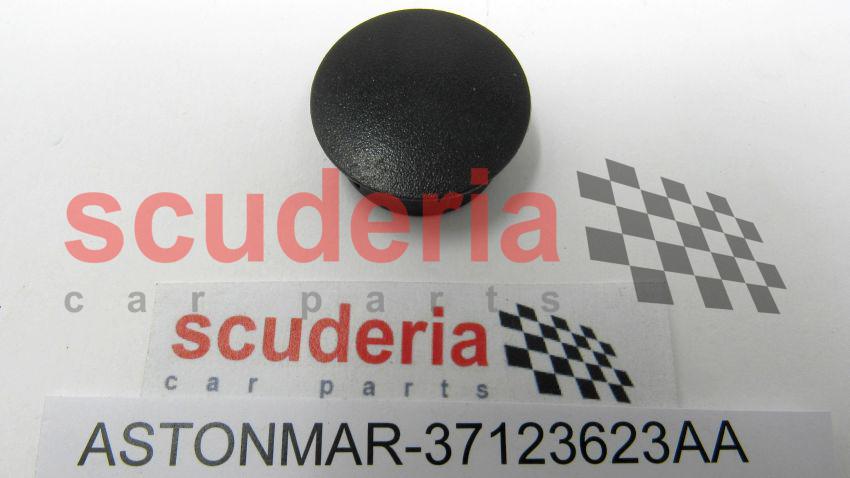

	37123623AA	WIPER ARM CAP	$5.22	To Order

Photo	Part No	Description	Price (each)	Stock
	37122344AB	WINDSCREEN WIPER ARM RH RHD	$458.84	To Order
	37122347AB	WIPER ARM LH LHD	$407.71	To Order

Photo	Part No	Description	Price (each)	Stock
	37123148AA	WIPER BLADE DRIVER'S SIDE	$38.05	To Order

Photo	Part No	Description	Price (each)	Stock
	37122345AB	WIPER ARM LH RHD	$266.42	To Order
	37122346AB	WIPER ARM RH LHD	$266.42	To Order

Photo	Part No	Description	Price (each)	Stock
	37124408AA	WIPER BLADE PASS	$33.93	To Order
	697478	CLIP	$1.16	To Order

Photo	Part No	Description	Price (each)	Stock
	3785226	WASHER JET	$168.70	To Order

Photo	Part No	Description	Price (each)	Stock
	701681	CLIP-WSHR TUBE 10mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37123429AC	ASSY-WASHER JET	$71.55	To Order

Photo	Part No	Description	Price (each)	Stock
	37123429AC	ASSY-WASHER JET	$71.55	To Order
	37123429AC	ASSY-WASHER JET	$71.55	To Order
	37123429AC	ASSY-WASHER JET	$71.55	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	3784762	T-PIECE	$6.63	To Order

Photo	Part No	Description	Price (each)	Stock
	3784773	DIAPHRAGM VALVE	$27.90	To Order

Photo	Part No	Description	Price (each)	Stock
	37123429AC	ASSY-WASHER JET	$71.55	To Order
	699181	HOSE CLIP - HOSE TO N. VALVE	$0.98	To Order
	694538	HOSE CLIP	$2.51	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	3784976	W/SCREEN WIPER MOTOR	3784976 W/SCREEN WIPER MOTOR	$679.64	1
2	3782034	BINX NUT	3782034 BINX NUT	$2.25	1
3	37121086AB	BRACKET ASSY WIPER MOTOR RHD	37121086AB BRACKET ASSY WIPER MOTOR RHD RHD	$538.59	1
3	37121087AB	BRACKET ASSY WIPER MOTOR LHD	37121087AB BRACKET ASSY WIPER MOTOR LHD LHD	$171.57	1
4	697603	Screw, M6 x 25, Csk Socket Hd	697603 Screw, M6 x 25, Csk Socket Hd	$0.29	3
5	3784231	WIPER ROD & SPINDLE ASSY RHD	3784231 WIPER ROD & SPINDLE ASSY RHD RHD	$682.01	1
5	3784232	WIPER ROD & SPINDLE ASSY LHD	3784232 WIPER ROD & SPINDLE ASSY LHD LHD	$654.43	1
6	37123623AA	WIPER ARM CAP	37123623AA WIPER ARM CAP	$5.22	2
7	37122344AB	WINDSCREEN WIPER ARM RH RHD	37122344AB WINDSCREEN WIPER ARM RH RHD RHD	$458.84	1
7	37122347AB	WIPER ARM LH LHD	37122347AB WIPER ARM LH LHD LHD	$407.71	1
8	37123148AA	WIPER BLADE DRIVER'S SIDE	37123148AA WIPER BLADE DRIVER'S SIDE	$38.05	1
9	37122345AB	WIPER ARM LH RHD	37122345AB WIPER ARM LH RHD RHD	$266.42	1
9	37122346AB	WIPER ARM RH LHD	37122346AB WIPER ARM RH LHD LHD	$266.42	1
10	37124408AA	WIPER BLADE PASS	37124408AA WIPER BLADE PASS	$33.93	1
10	697478	CLIP	697478 CLIP	$1.16	2
11	3785226	WASHER JET	3785226 WASHER JET	$168.70	2
12	701681	CLIP-WSHR TUBE 10mm	701681 CLIP-WSHR TUBE 10mm	-	2	Enquire
13	37123429AC	ASSY-WASHER JET	37123429AC ASSY-WASHER JET RHD Passenger	$71.55	1
14	37123429AC	ASSY-WASHER JET	37123429AC ASSY-WASHER JET LHD Passenger	$71.55	1
14	37123429AC	ASSY-WASHER JET	37123429AC ASSY-WASHER JET LHD Driver	$71.55	1
14	37123429AC	ASSY-WASHER JET	37123429AC ASSY-WASHER JET RHD Driver	$71.55	1
14	37123429AC	ASSY-WASHER JET	37123429AC ASSY-WASHER JET	$71.55	1
15	3784762	T-PIECE	3784762 T-PIECE	$6.63	1
16	3784773	DIAPHRAGM VALVE	3784773 DIAPHRAGM VALVE	$27.90	1
17	37123429AC	ASSY-WASHER JET	37123429AC ASSY-WASHER JET T-piece to Diaphragm Valve	$71.55	1
17	699181	HOSE CLIP - HOSE TO N. VALVE	699181 HOSE CLIP - HOSE TO N. VALVE	$0.98	1
17	694538	HOSE CLIP	694538 HOSE CLIP	$2.51	4
17	705623	GREASE-RED	705623 GREASE-RED	$75.02	-
