Name: Mounting parts engine compartment
Rating: 4.6 (1 reviews)

Mounting parts engine compartment of Rolls Royce Rolls Royce Ghost Extended RR22(2019-2023)

View All

Rolls Royce Ghost Extended RR22(2019-2023) - Mounting parts engine compartment (1)

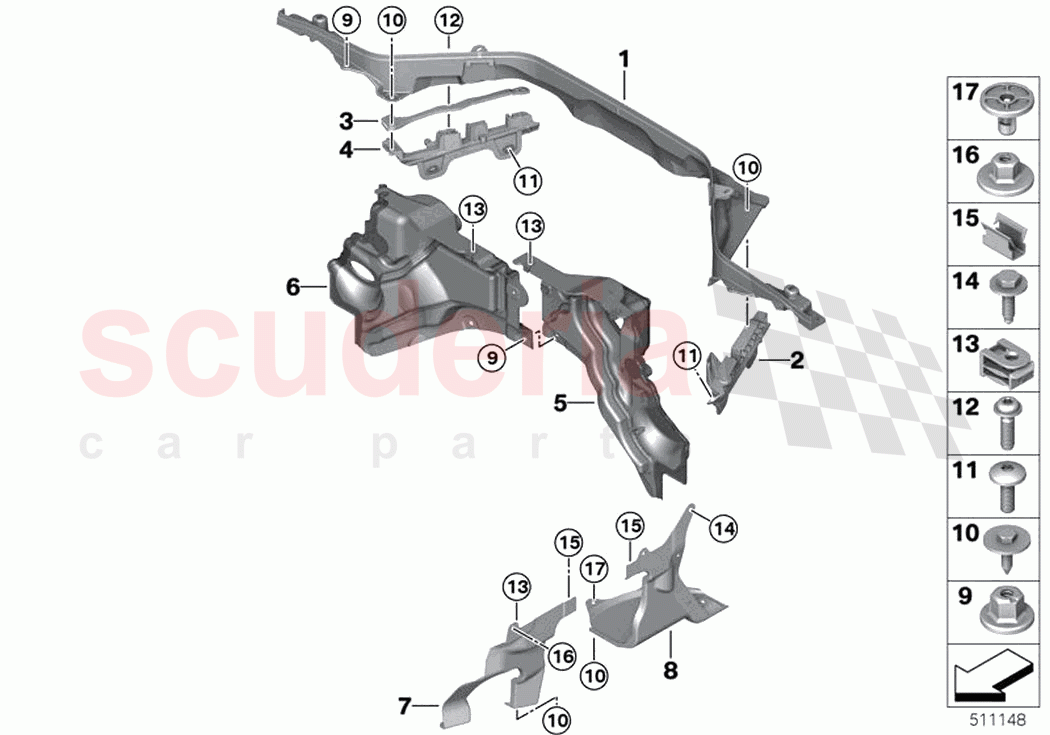

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51717466650	Bulkhead, upper section, middle	$554.32	To Order

Photo	Part No	Description	Price (each)	Stock
	61137951006	Sealing frame left	$70.61	To Order

Photo	Part No	Description	Price (each)	Stock
	61137951005	Holder upper section	$25.10	To Order

Photo	Part No	Description	Price (each)	Stock
	61137951004	Holder lower section	$59.99	To Order

Photo	Part No	Description	Price (each)	Stock
	51717466659	Bulkhead, lower section, left	$554.32	To Order
	51717466661	Bulkhead, lower section, left	$624.98	To Order

Photo	Part No	Description	Price (each)	Stock
	51717466660	Bulkhead, lower section, right	$554.32	To Order
	51717466662	Bulkhead, lower section, right	$624.98	To Order

Photo	Part No	Description	Price (each)	Stock
	51757428073	Cover, steering gear, front left	$267.44	To Order
	51757428074	Cover, steering gear, front right	$267.44	To Order

Photo	Part No	Description	Price (each)	Stock
	51757409799	Cover, steering gear, rear left	$493.90	To Order
	51757409800	Cover, steering gear, rear right	$493.90	To Order

Photo	Part No	Description	Price (each)	Stock
	7147336362	Plastic nut for coarse threaded pin	$1.69	To Order

Photo	Part No	Description	Price (each)	Stock
	7149213164	Hex Bolt	$1.26	To Order

Photo	Part No	Description	Price (each)	Stock
	7142994134	Fillister head screw	$2.34	To Order

Photo	Part No	Description	Price (each)	Stock
	7129907505	Screw	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	7147311312	C-clip plastic nut	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	7119907898	Hex Bolt	$1.29	To Order

Photo	Part No	Description	Price (each)	Stock
	51451857745	Clamp	$2.34	To Order

Photo	Part No	Description	Price (each)	Stock
	7147169847	Plastic cap nut with washer	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	7147306224	Expanding nut	$0.97	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	51717466650	Bulkhead, upper section, middle	51717466650 Bulkhead, upper section, middle	$554.32	1
2	61137951006	Sealing frame left	61137951006 Sealing frame left	$70.61	1
3	61137951005	Holder upper section	61137951005 Holder upper section	$25.10	1
4	61137951004	Holder lower section	61137951004 Holder lower section	$59.99	1
5	51717466659	Bulkhead, lower section, left	51717466659 Bulkhead, lower section, left LHD	$554.32	1
5	51717466661	Bulkhead, lower section, left	51717466661 Bulkhead, lower section, left RHD	$624.98	1
6	51717466660	Bulkhead, lower section, right	51717466660 Bulkhead, lower section, right LHD	$554.32	1
6	51717466662	Bulkhead, lower section, right	51717466662 Bulkhead, lower section, right RHD	$624.98	1
7	51757428073	Cover, steering gear, front left	51757428073 Cover, steering gear, front left	$267.44	1
7	51757428074	Cover, steering gear, front right	51757428074 Cover, steering gear, front right	$267.44	1
8	51757409799	Cover, steering gear, rear left	51757409799 Cover, steering gear, rear left	$493.90	1
8	51757409800	Cover, steering gear, rear right	51757409800 Cover, steering gear, rear right	$493.90	1
9	7147336362	Plastic nut for coarse threaded pin	7147336362 Plastic nut for coarse threaded pin M6	$1.69	11
10	7149213164	Hex Bolt	7149213164 Hex Bolt TS5X20 SW8 D=22	$1.26	19
11	7142994134	Fillister head screw	7142994134 Fillister head screw	$2.34	6
12	7129907505	Screw	7129907505 Screw 5 X 16	$1.97	4
13	7147311312	C-clip plastic nut	7147311312 C-clip plastic nut TS5	$0.79	8
14	7119907898	Hex Bolt	7119907898 Hex Bolt M6X20-8.8	$1.29	2
15	51451857745	Clamp	51451857745 Clamp	$2.34	2
16	7147169847	Plastic cap nut with washer	7147169847 Plastic cap nut with washer D=22MM	$0.52	2
17	7147306224	Expanding nut	7147306224 Expanding nut L= 19.9MM	$0.97	6
