Name: Wheelarch trim
Rating: 4.3 (1 reviews)

Wheelarch trim of Rolls Royce Rolls Royce Ghost Extended RR22(2019-2023)

View All

Rolls Royce Ghost Extended RR22(2019-2023) - Wheelarch trim (1)

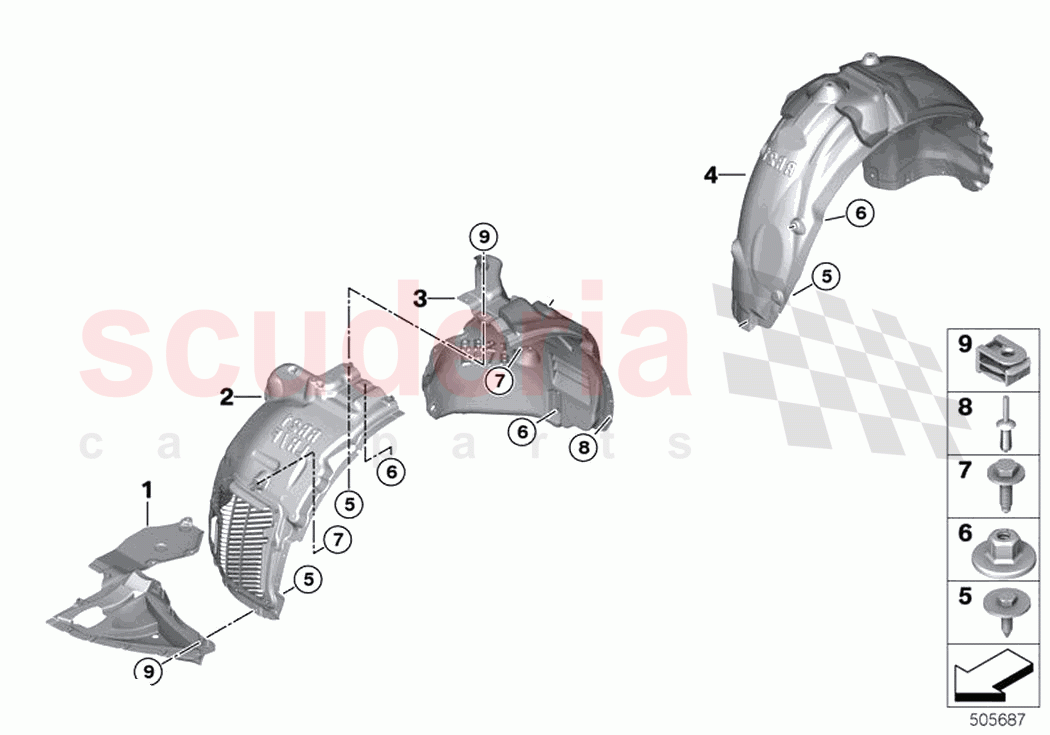

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51757494405	Cover, bottom left	$183.29	To Order
	51757494406	Cover, bottom right	$189.01	To Order

Photo	Part No	Description	Price (each)	Stock
	51717494401	Cover,wheel arch,frontsection,front left	$769.85	To Order
	51717494402	Cover,wheel arch,frontsection,frontright	$769.85	To Order

Photo	Part No	Description	Price (each)	Stock
	51717494403	Cover,wheel arch,rear section,front left	$762.37	To Order
	51717494404	Cover,wheel arch,rearsection,front right	$769.85	To Order

Photo	Part No	Description	Price (each)	Stock
	51717494407	Cover, wheel housing, rear left	$476.17	To Order
	51717494408	Cover, wheel housing, rear right	$476.17	To Order
	51719640585	Wheel arch cover rear left	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	7149213164	Hex Bolt	$1.26	To Order
	7149481168	Hex Bolt	$2.25	To Order
	7142644722	Hex Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147169847	Plastic cap nut with washer	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	7119907898	Hex Bolt	$1.29	To Order

Photo	Part No	Description	Price (each)	Stock
	51718226190	Expanding rivet	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	7147311312	C-clip plastic nut	$0.79	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	51757494405	Cover, bottom left	51757494405 Cover, bottom left	$183.29	1
1	51757494406	Cover, bottom right	51757494406 Cover, bottom right	$189.01	1
2	51717494401	Cover,wheel arch,frontsection,front left	51717494401 Cover,wheel arch,frontsection,front left	$769.85	1
2	51717494402	Cover,wheel arch,frontsection,frontright	51717494402 Cover,wheel arch,frontsection,frontright	$769.85	1
3	51717494403	Cover,wheel arch,rear section,front left	51717494403 Cover,wheel arch,rear section,front left	$762.37	1
3	51717494404	Cover,wheel arch,rearsection,front right	51717494404 Cover,wheel arch,rearsection,front right	$769.85	1
4	51717494407	Cover, wheel housing, rear left	51717494407 Cover, wheel housing, rear left from 03.2023	$476.17	1
4	51717494408	Cover, wheel housing, rear right	51717494408 Cover, wheel housing, rear right from 03.2023	$476.17	1
4	51719640585	Wheel arch cover rear left	51719640585 Wheel arch cover rear left	-	1	Enquire
4	51719640586	Wheel arch cover rear right	51719640586 Wheel arch cover rear right	-	1	Enquire
5	7149213164	Hex Bolt	7149213164 Hex Bolt TS5X20 SW8 D=22	$1.26	-
5	7149481168	Hex Bolt	7149481168 Hex Bolt TS5X20SW10 D=22; to 01.2021	$2.25	-
5	7142644722	Hex Bolt	7142644722 Hex Bolt TS5X20SW10 D=22; to 01.2021	-	-	Enquire
6	7147169847	Plastic cap nut with washer	7147169847 Plastic cap nut with washer D=22MM	$0.52	-
7	7119907898	Hex Bolt	7119907898 Hex Bolt M6X20-8.8	$1.29	-
8	51718226190	Expanding rivet	51718226190 Expanding rivet	$1.97	-
9	7147311312	C-clip plastic nut	7147311312 C-clip plastic nut TS5	$0.79	-
