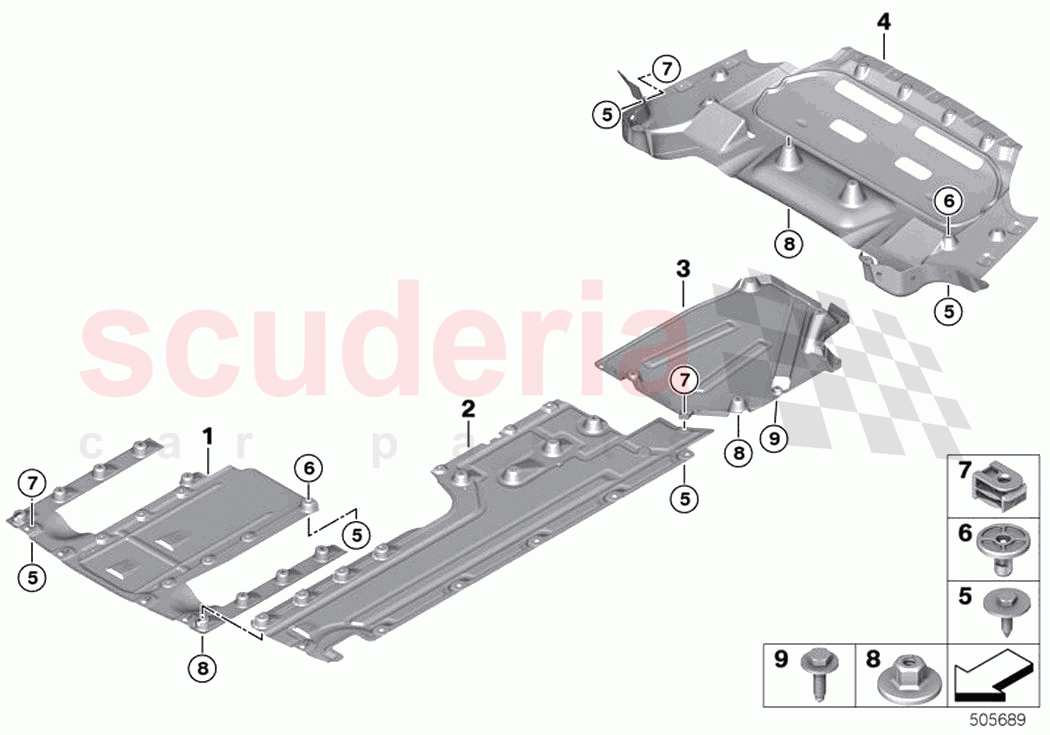

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51755A055E0	Underfloor coating center	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51717494415	Underbody panelling, side left	Enquire	To Order
	51717494416	Underbody panelling, side right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51717494409	Underbody panelling, tank, left	Enquire	To Order
	51717494410	Underbody panelling, tank, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147306224	Expanding nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147311312	C-clip plastic nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147169847	Plastic cap nut with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119907898	Hex Bolt	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	51755A055E0	Underfloor coating center	51755A055E0 Underfloor coating center	-	1	Enquire
2	51717494415	Underbody panelling, side left	51717494415 Underbody panelling, side left	-	1	Enquire
2	51717494416	Underbody panelling, side right	51717494416 Underbody panelling, side right	-	1	Enquire
3	51717494409	Underbody panelling, tank, left	51717494409 Underbody panelling, tank, left	-	1	Enquire
3	51717494410	Underbody panelling, tank, right	51717494410 Underbody panelling, tank, right	-	1	Enquire
4	51757931069	Rear diffuser	51757931069 Rear diffuser	-	1	Enquire
4	51757494412	Rear diffuser	51757494412 Rear diffuser	-	1	Enquire
5	7149213164	Hex Bolt	7149213164 Hex Bolt TS5X20 SW8 D=22; from 01.2021	-	-	Enquire
5	7149481168	Hex Bolt	7149481168 Hex Bolt TS5X20SW10 D=22; to 01.2021	-	-	Enquire
5	7142644722	Hex Bolt	7142644722 Hex Bolt TS5X20SW10 D=22; to 01.2021	-	-	Enquire
6	7147306224	Expanding nut	7147306224 Expanding nut L= 19.9MM	-	-	Enquire
7	7147311312	C-clip plastic nut	7147311312 C-clip plastic nut TS5	-	-	Enquire
8	7147169847	Plastic cap nut with washer	7147169847 Plastic cap nut with washer D=22MM	-	-	Enquire
9	7119907898	Hex Bolt	7119907898 Hex Bolt M6X20-8.8	-	-	Enquire
