Name: Trim panel rear
Rating: 4.1 (1 reviews)

Trim panel rear of Rolls Royce Rolls Royce Ghost Extended RR22(2019-2023)

View All

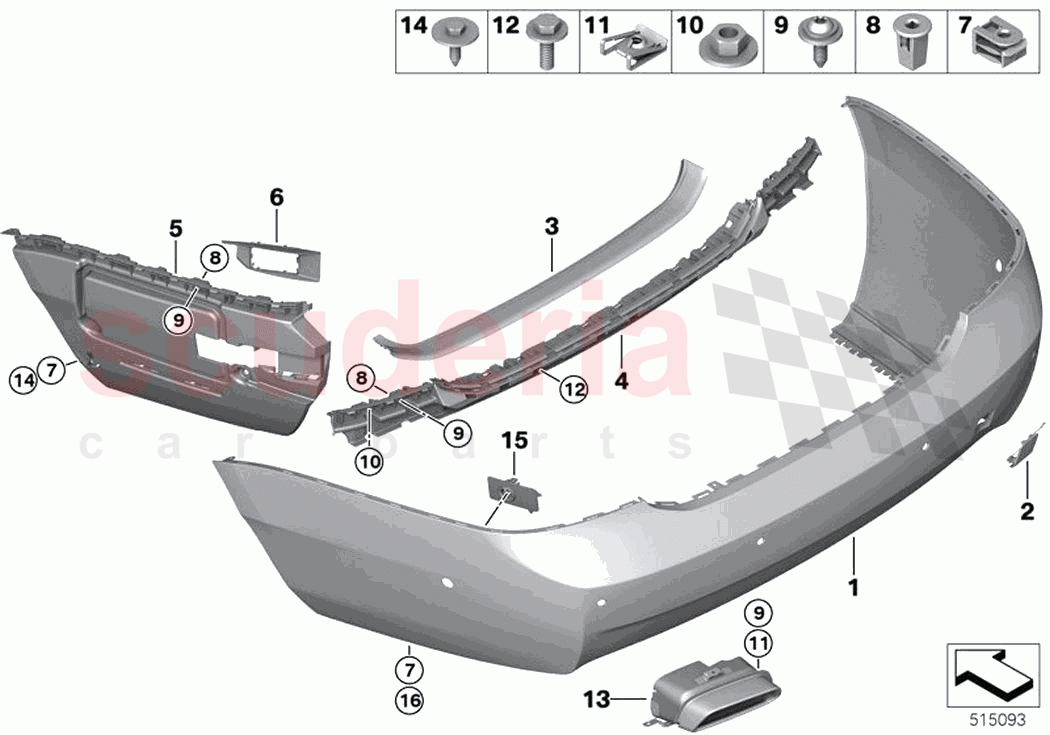

Rolls Royce Ghost Extended RR22(2019-2023) - Trim panel rear (1)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51125A13480	Panel, bumper, primed, rear	$7,812.77	To Order
	51125A13479	Panel, bumper, primed, rear	$7,552.35	To Order

Photo	Part No	Description	Price (each)	Stock
	51127495530	Cover for towing eye primer applied	$207.42	To Order

Photo	Part No	Description	Price (each)	Stock
	51127930997	Bumper trim rear centre	$374.96	To Order

Photo	Part No	Description	Price (each)	Stock
	51127495629	Mount, bumper, rear centre	$258.06	To Order

Photo	Part No	Description	Price (each)	Stock
	51127495627	Guide for bumper, side, left	$215.52	To Order
	51127495628	Guide for bumper, side, right	$215.52	To Order

Photo	Part No	Description	Price (each)	Stock
	51125A04FC5	Absorber funnel left	$138.07	To Order
	51125A04FC6	Absorber funnel right	$138.07	To Order

Photo	Part No	Description	Price (each)	Stock
	7147311312	C-clip plastic nut	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	7146976114	Expanding nut	$0.42	To Order

Photo	Part No	Description	Price (each)	Stock
	7119907237	Screw, self tapping	$0.79	To Order

Photo	Part No	Description	Price (each)	Stock
	7147311066	Hex nut with plate	$2.28	To Order

Photo	Part No	Description	Price (each)	Stock
	18128530958	Plug-in nut	$7.48	To Order

Photo	Part No	Description	Price (each)	Stock
	7119903995	Hex Bolt	$0.66	To Order

Photo	Part No	Description	Price (each)	Stock
	51127495531	Trim, exhaust tailpipe, left	$1,037.34	To Order
	51127495532	Trim, exhaust tailpipe, right	$1,037.34	To Order

Photo	Part No	Description	Price (each)	Stock
	7149213164	Hex Bolt	$1.26	To Order

Photo	Part No	Description	Price (each)	Stock
	51125A7AC50	Set, mounts, PDC sensor, rear	$383.89	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	51125A13480	Panel, bumper, primed, rear	51125A13480 Panel, bumper, primed, rear from 12.2024	$7,812.77	1
1	51125A13479	Panel, bumper, primed, rear	51125A13479 Panel, bumper, primed, rear from 12.2024	$7,552.35	1
2	51127495530	Cover for towing eye primer applied	51127495530 Cover for towing eye primer applied	$207.42	1
3	51127930997	Bumper trim rear centre	51127930997 Bumper trim rear centre	$374.96	1
4	51127495629	Mount, bumper, rear centre	51127495629 Mount, bumper, rear centre	$258.06	1
5	51127495627	Guide for bumper, side, left	51127495627 Guide for bumper, side, left	$215.52	1
5	51127495628	Guide for bumper, side, right	51127495628 Guide for bumper, side, right	$215.52	1
6	51125A04FC5	Absorber funnel left	51125A04FC5 Absorber funnel left	$138.07	1
6	51125A04FC6	Absorber funnel right	51125A04FC6 Absorber funnel right	$138.07	1
7	7147311312	C-clip plastic nut	7147311312 C-clip plastic nut TS5	$0.79	17
8	7146976114	Expanding nut	7146976114 Expanding nut L=15MM, DMAX=12	$0.42	14
9	7119907237	Screw, self tapping	7119907237 Screw, self tapping 4,8X16	$0.79	16
10	7147311066	Hex nut with plate	7147311066 Hex nut with plate M6	$2.28	14
11	18128530958	Plug-in nut	18128530958 Plug-in nut M5	$7.48	8
12	7119903995	Hex Bolt	7119903995 Hex Bolt M6X20-U2-8.8	$0.66	5
13	51127495531	Trim, exhaust tailpipe, left	51127495531 Trim, exhaust tailpipe, left	$1,037.34	1
13	51127495532	Trim, exhaust tailpipe, right	51127495532 Trim, exhaust tailpipe, right	$1,037.34	1
14	7149213164	Hex Bolt	7149213164 Hex Bolt TS5X20 SW8 D=22	$1.26	17
15	51125A7AC50	Set, mounts, PDC sensor, rear	51125A7AC50 Set, mounts, PDC sensor, rear	$383.89	1
