Glazing of Rolls Royce Rolls Royce Ghost Extended RR22(2019-2023)

View All

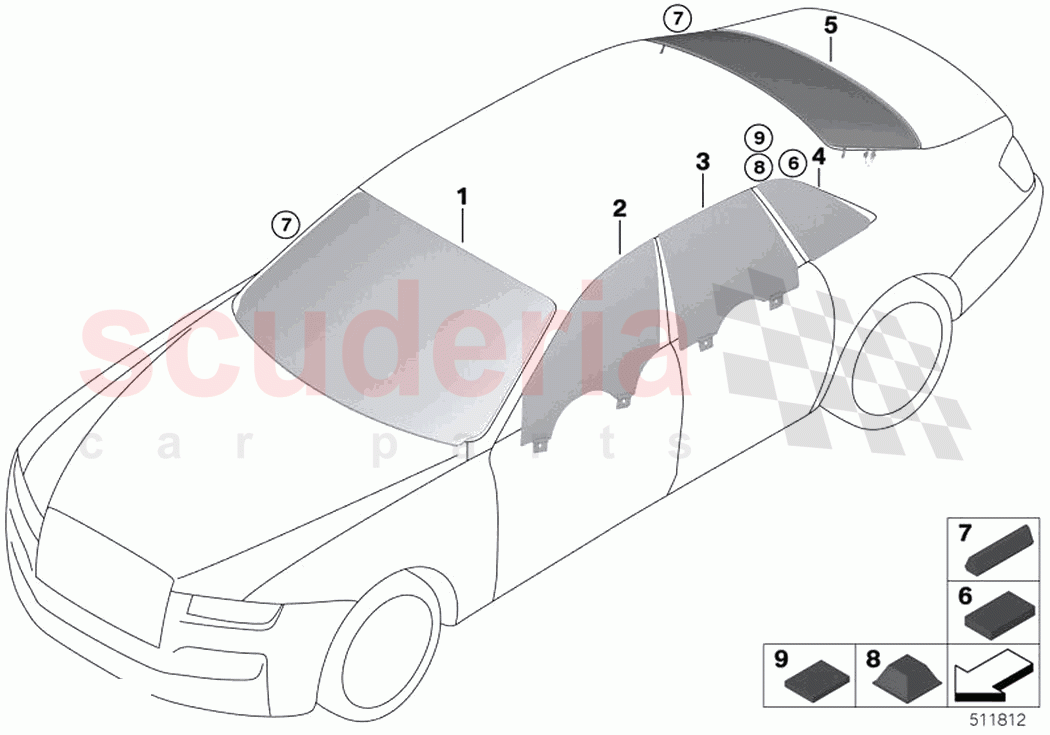

Rolls Royce Ghost Extended RR22(2019-2023) - Glazing (1)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51317495670	Green Windscreen	Enquire	To Order
	51317495677	Green windscreen	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51217493569	Side window door	Enquire	To Order
	51217493570	Side window door	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51227493575	Side window, door, left rear	Enquire	To Order
	51227493576	Side window, door, left rear	Enquire	To Order
	51227493577	Side window, door, left rear	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51377493685	Side window, fixed, rear left	Enquire	To Order
	51377493686	Side window, fixed, rear right	Enquire	To Order
	51377493687	Side window, fixed, rear left	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51317495678	Rear window green	Enquire	To Order
	51317495679	Rear window	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51377164933	Hook and loop fastener	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51317061285	Spacer buffer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147285511	Rubber buffer	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	51317288462	Bump stop	51317288462 Bump stop	-	6	Enquire
-	51317495680	Cover, windshield, top	51317495680 Cover, windshield, top	-	1	Enquire
1	51317495670	Green Windscreen	51317495670 Green Windscreen VSG/AKUSTIK/IR	-	1	Enquire
1	51317495677	Green windscreen	51317495677 Green windscreen VSG/AKUSTIK	-	1	Enquire
2	51217493569	Side window door	51217493569 Side window door	-	1	Enquire
2	51217493570	Side window door	51217493570 Side window door	-	1	Enquire
3	51227493575	Side window, door, left rear	51227493575 Side window, door, left rear	-	1	Enquire
3	51227493576	Side window, door, left rear	51227493576 Side window, door, left rear	-	1	Enquire
3	51227493577	Side window, door, left rear	51227493577 Side window, door, left rear	-	1	Enquire
3	51227493578	Side window, door, rear right	51227493578 Side window, door, rear right	-	1	Enquire
4	51377493685	Side window, fixed, rear left	51377493685 Side window, fixed, rear left INFRAROT	-	1	Enquire
4	51377493686	Side window, fixed, rear right	51377493686 Side window, fixed, rear right INFRAROT	-	1	Enquire
4	51377493687	Side window, fixed, rear left	51377493687 Side window, fixed, rear left	-	1	Enquire
4	51377493688	Side window, fixed, rear right	51377493688 Side window, fixed, rear right	-	1	Enquire
5	51317495678	Rear window green	51317495678 Rear window green VSG/AKUSTIK/IR	-	1	Enquire
5	51317495679	Rear window	51317495679 Rear window AKUSTIK/IR	-	1	Enquire
6	51377164933	Hook and loop fastener	51377164933 Hook and loop fastener	-	2	Enquire
8	51317061285	Spacer buffer	51317061285 Spacer buffer 5,85	-	2	Enquire
9	7147285511	Rubber buffer	7147285511 Rubber buffer	-	2	Enquire
