Carrier Centre Console

Rolls Royce Ghost Extended RR22(2019-2023)

Illustration Number: 1

Find Your Part

Rolls Royce Ghost Extended RR22(2019-2023) - Carrier centre console (1)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
51167944430 Carrier, centre console Enquire To Order
Photo Part No Description Price (each) Stock
51167950134 Centre arm rest lock Enquire To Order
Photo Part No Description Price (each) Stock
7149213384 Clamp Enquire To Order
Photo Part No Description Price (each) Stock
51166825782 Microswitch Enquire To Order
Photo Part No Description Price (each) Stock
7149319414 C-clip sheet metal nut Enquire To Order
Photo Part No Description Price (each) Stock
51169874545 Bush support centre console Enquire To Order
Photo Part No Description Price (each) Stock
51166996694 Function carrier centre console rear Enquire To Order
Photo Part No Description Price (each) Stock
51166996713 Holder, centre console, front Enquire To Order
Photo Part No Description Price (each) Stock
51166996714 Bracket, centre console rear Enquire To Order
Photo Part No Description Price (each) Stock
51167951183 Sound insulation centre console left Enquire To Order
51167951184 Sound insulation centre console right Enquire To Order
Photo Part No Description Price (each) Stock
7149197038 Fillister head screw Enquire To Order
Photo Part No Description Price (each) Stock
34117709137 Fillister head screw Enquire To Order
Photo Part No Description Price (each) Stock
34116868785 Hex Bolt Enquire To Order
Photo Part No Description Price (each) Stock
7147311066 Hex nut with plate Enquire To Order
Photo Part No Description Price (each) Stock
7146959923 Torx bolt Enquire To Order
Photo Part No Description Price (each) Stock
51169490276 Spacer holder Enquire To Order
Photo Part No Description Price (each) Stock
64538391409 Bush Enquire To Order
Photo Part No Description Price (each) Stock
51452353024 Set felt strip adhesive Enquire To Order
View All

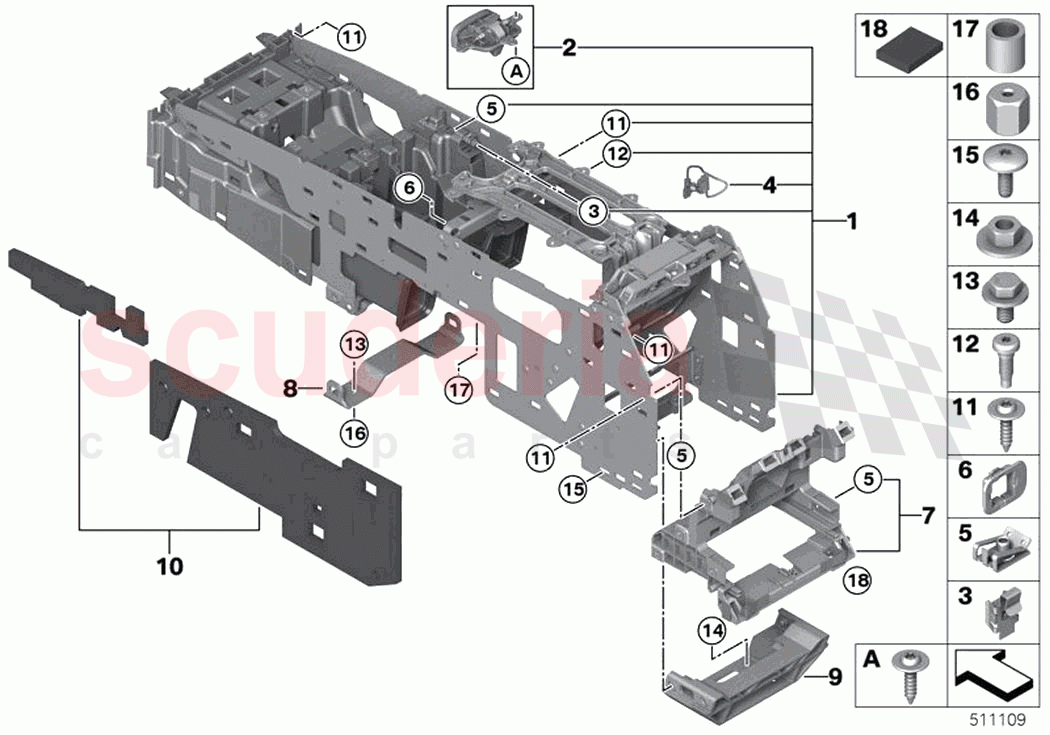

Carrier centre console of Rolls Royce Rolls Royce Ghost Extended RR22(2019-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 51167944430
Carrier, centre console 		- 1 Enquire
2 51167950134
Centre arm rest lock 		- 1 Enquire
3 7149213384
Clamp 		- 4 Enquire
4 51166825782
Microswitch 		- 1 Enquire
5 7149319414
C-clip sheet metal nut 		- 39 Enquire
6 51169874545
Bush support centre console 		- 2 Enquire
7 51166996694
Function carrier centre console rear 		- 1 Enquire
8 51166996713
Holder, centre console, front 		- 1 Enquire
9 51166996714
Bracket, centre console rear 		- 1 Enquire
10 51167951183
Sound insulation centre console left 		- 1 Enquire
10 51167951184
Sound insulation centre console right 		- 1 Enquire
11 7149197038
Fillister head screw
DELTA PT4X16 		- 25 Enquire
12 34117709137
Fillister head screw
M6X18-8.8-MK 		- 7 Enquire
13 34116868785
Hex Bolt
M6X12-10.9-MK- 		- 2 Enquire
14 7147311066
Hex nut with plate
M6 		- 4 Enquire
15 7146959923
Torx bolt
ISA M6X18 SW 		- 6 Enquire
16 51169490276
Spacer holder 		- 2 Enquire
17 64538391409
Bush 		- 2 Enquire
18 51452353024
Set felt strip adhesive 		- 1 Enquire
