Centre console rear cabin of Rolls Royce Rolls Royce Ghost Extended RR22(2019-2023)

View All

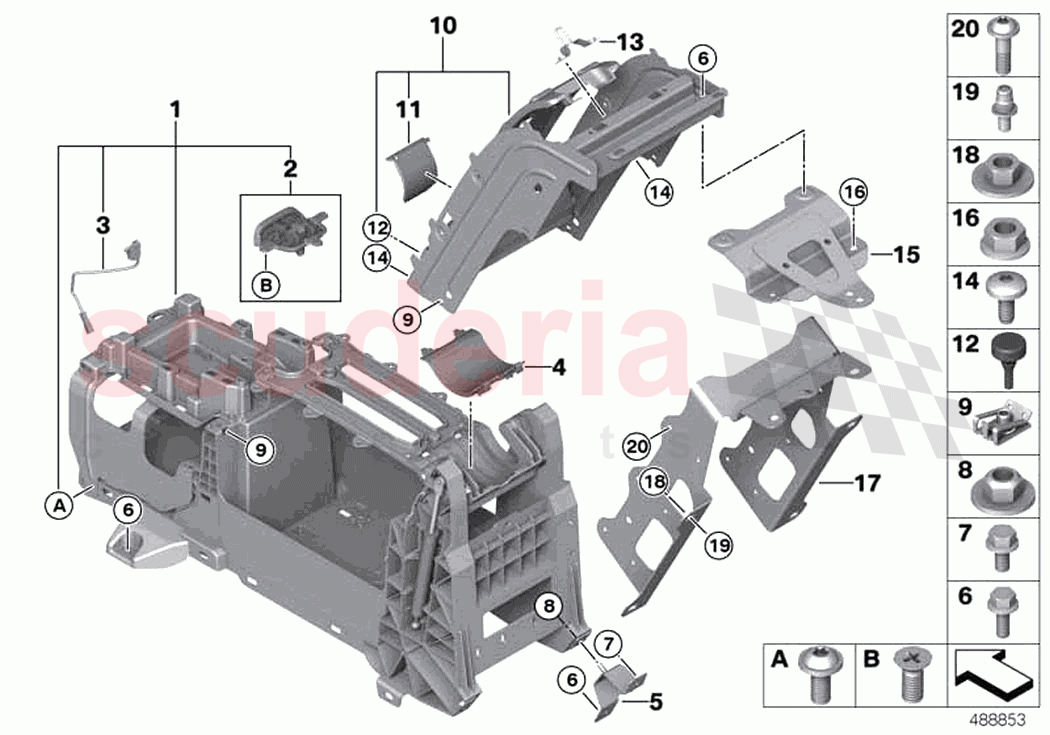

Rolls Royce Ghost Extended RR22(2019-2023) - Centre console rear cabin (1)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51169384334	Rear console support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51167950134	Centre arm rest lock	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51166825782	Microswitch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169384969	Cover armrest rear console rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169384347	Holder rear console rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119907474	Hex Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904124	Hex Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904870	Hex nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149319414	C-clip sheet metal nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169387628	Rear console support top	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51166805359	Cover armrest rear console top	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51211970863	Stop buffer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51166826948	Striker rear console top	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147156542	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51166808987	Holder rear console top	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904024	Hex nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51166826113	Holder, cooler box	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905095	Hex nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13328506195	Rivet pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129907548	Fillister head screw	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	51169384334	Rear console support	51169384334 Rear console support	-	1	Enquire
2	51167950134	Centre arm rest lock	51167950134 Centre arm rest lock	-	1	Enquire
3	51166825782	Microswitch	51166825782 Microswitch	-	1	Enquire
4	51169384969	Cover armrest rear console rear	51169384969 Cover armrest rear console rear	-	1	Enquire
5	51169384347	Holder rear console rear	51169384347 Holder rear console rear	-	2	Enquire
6	7119907474	Hex Bolt	7119907474 Hex Bolt M6X16	-	6	Enquire
7	7119904124	Hex Bolt	7119904124 Hex Bolt M8X16-8.8-ZNS3	-	2	Enquire
8	7129904870	Hex nut	7129904870 Hex nut BM6-8-ZNS3	-	2	Enquire
9	7149319414	C-clip sheet metal nut	7149319414 C-clip sheet metal nut	-	10	Enquire
10	51169387628	Rear console support top	51169387628 Rear console support top	-	1	Enquire
11	51166805359	Cover armrest rear console top	51166805359 Cover armrest rear console top	-	1	Enquire
12	51211970863	Stop buffer	51211970863 Stop buffer BLACK	-	2	Enquire
13	51166826948	Striker rear console top	51166826948 Striker rear console top	-	1	Enquire
14	7147156542	Fillister head screw	7147156542 Fillister head screw ISA M6X14 MK	-	6	Enquire
15	51166808987	Holder rear console top	51166808987 Holder rear console top	-	1	Enquire
16	7119904024	Hex nut	7119904024 Hex nut M8-ZNS3	-	3	Enquire
17	51166826113	Holder, cooler box	51166826113 Holder, cooler box	-	1	Enquire
18	7129905095	Hex nut	7129905095 Hex nut BM8-8-ZNS3	-	4	Enquire
19	13328506195	Rivet pin	13328506195 Rivet pin M8X14,1	-	4	Enquire
20	7129907548	Fillister head screw	7129907548 Fillister head screw M5X18-A2-70	-	12	Enquire
