Front panel of Rolls Royce Rolls Royce Ghost Extended RR22(2019-2023)

View All

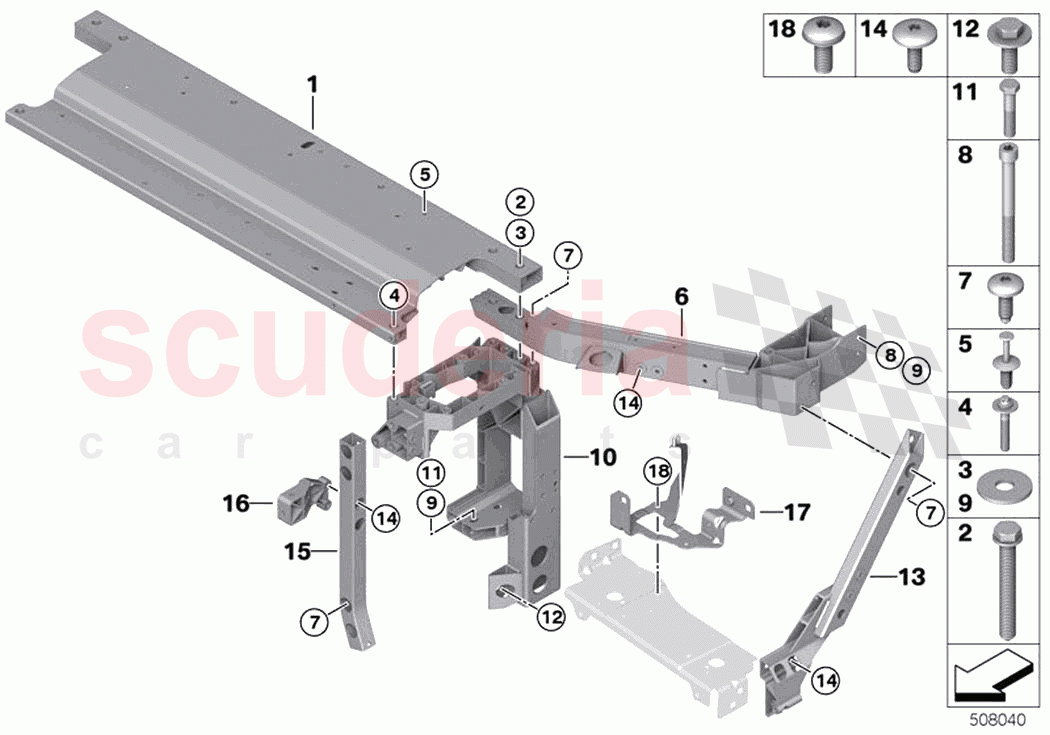

Rolls Royce Ghost Extended RR22(2019-2023) - Front panel (1)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51647495489	Lock bridge	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119908592	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904209	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119908512	Torx-bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51111908077	Expanding rivet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41009627431	Connection carrier support left	Enquire	To Order
	41009627432	Connection carrier support right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147234925	Oval-head screw/washer assembly	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905153	ISA screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905732	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41009627427	Support left	Enquire	To Order
	41009627428	Support right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119908581	Hex Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905398	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41009627435	Supporting strut, side panel, front left	Enquire	To Order
	41009627436	Supporting strut, side panel front right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146959923	Torx bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41009627429	Support headlight support bracket left	Enquire	To Order
	41009627430	Support headlight support bracket right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41009627433	Connection radiator grille left	Enquire	To Order
	41009627434	Connection radiator grille right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51648491925	Mounting, headlight, left	Enquire	To Order
	51648491926	Mounting, headlight, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147197262	Fillister head screw	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	51647495489	Lock bridge	51647495489 Lock bridge	-	1	Enquire
2	7119908592	Hex Bolt with washer	7119908592 Hex Bolt with washer M10X85-U1-10.9	-	2	Enquire
3	7119904209	Washer	7119904209 Washer 10-200 ZNS3	-	2	Enquire
4	7119908512	Torx-bolt with washer	7119908512 Torx-bolt with washer M8X50-U2-10.9	-	2	Enquire
5	51111908077	Expanding rivet	51111908077 Expanding rivet D = 6MM	-	2	Enquire
6	41009627431	Connection carrier support left	41009627431 Connection carrier support left	-	1	Enquire
6	41009627432	Connection carrier support right	41009627432 Connection carrier support right	-	1	Enquire
7	7147234925	Oval-head screw/washer assembly	7147234925 Oval-head screw/washer assembly ISA M8X20	-	16	Enquire
8	7129905153	ISA screw	7129905153 ISA screw M8X85-ZNS3	-	4	Enquire
9	7119905732	Washer	7119905732 Washer	-	8	Enquire
10	41009627427	Support left	41009627427 Support left	-	1	Enquire
10	41009627428	Support right	41009627428 Support right	-	1	Enquire
11	7119908581	Hex Bolt	7119908581 Hex Bolt M8X40-ZNS3	-	4	Enquire
12	7119905398	Hex Bolt with washer	7119905398 Hex Bolt with washer M8X25	-	4	Enquire
13	41009627435	Supporting strut, side panel, front left	41009627435 Supporting strut, side panel, front left	-	1	Enquire
13	41009627436	Supporting strut, side panel front right	41009627436 Supporting strut, side panel front right	-	1	Enquire
14	7146959923	Torx bolt	7146959923 Torx bolt ISA M6X18 SW	-	8	Enquire
15	41009627429	Support headlight support bracket left	41009627429 Support headlight support bracket left	-	1	Enquire
15	41009627430	Support headlight support bracket right	41009627430 Support headlight support bracket right	-	1	Enquire
16	41009627433	Connection radiator grille left	41009627433 Connection radiator grille left	-	1	Enquire
16	41009627434	Connection radiator grille right	41009627434 Connection radiator grille right	-	1	Enquire
17	51648491925	Mounting, headlight, left	51648491925 Mounting, headlight, left	-	1	Enquire
17	51648491926	Mounting, headlight, right	51648491926 Mounting, headlight, right	-	1	Enquire
18	7147197262	Fillister head screw	7147197262 Fillister head screw	-	6	Enquire
