Name: Support front
Rating: 5.0 (1 reviews)

Support front of Rolls Royce Rolls Royce Ghost Extended RR22(2019-2023)

View All

Rolls Royce Ghost Extended RR22(2019-2023) - Support front (1)

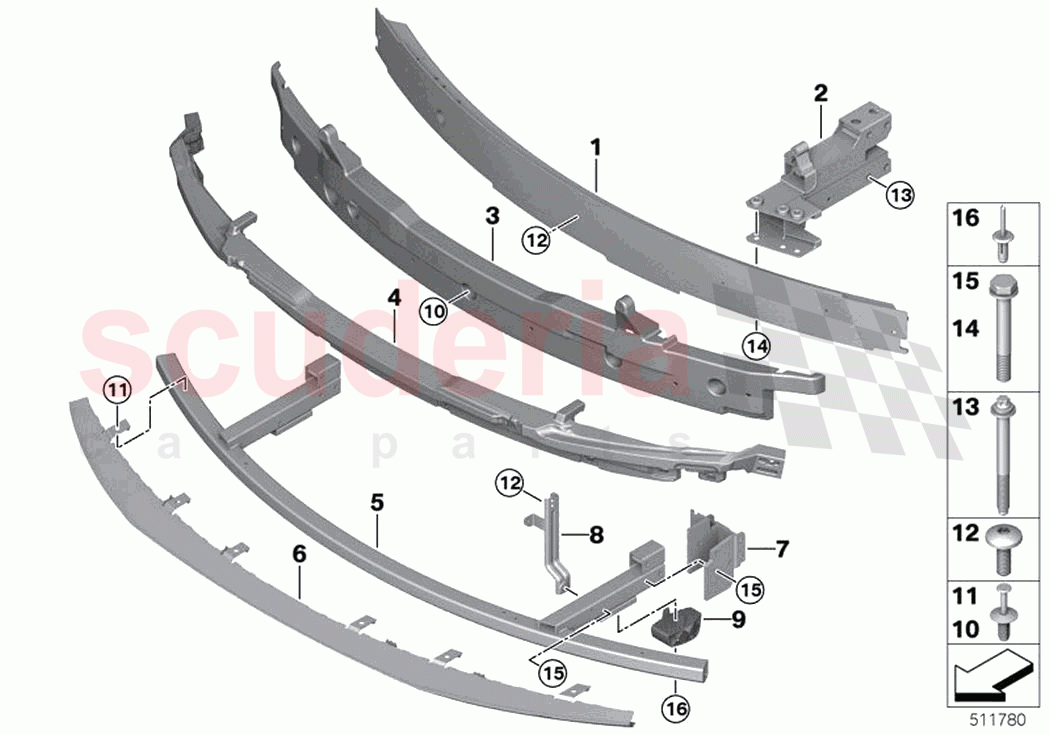

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51117495486	Cross member Bumper, front	$2,655.70	To Order

Photo	Part No	Description	Price (each)	Stock
	41007495425	Crash box, left	$1,240.37	To Order
	41007495426	Crash box, right	$1,240.37	To Order

Photo	Part No	Description	Price (each)	Stock
	51137495525	Supporting strip bumper front	$520.93	To Order

Photo	Part No	Description	Price (each)	Stock
	51117495480	Impact absorber, top	$118.02	To Order

Photo	Part No	Description	Price (each)	Stock
	51117495481	Carrier, bumper front	$2,291.71	To Order

Photo	Part No	Description	Price (each)	Stock
	51117495485	Shock absorber, center	$274.68	To Order

Photo	Part No	Description	Price (each)	Stock
	51117448891	Adapter plate, left	$312.73	To Order
	51117448892	Adapter plate, right	$312.73	To Order

Photo	Part No	Description	Price (each)	Stock
	51117413179	Vertical connection, left	$111.68	To Order
	51117413180	Vertical connection, right	$111.68	To Order

Photo	Part No	Description	Price (each)	Stock
	51117497123	Damper, kerb descent	$71.91	To Order

Photo	Part No	Description	Price (each)	Stock
	51127004445	Expanding rivet	$1.03	To Order

Photo	Part No	Description	Price (each)	Stock
	51111908077	Expanding rivet	$0.48	To Order

Photo	Part No	Description	Price (each)	Stock
	7142994134	Fillister head screw	$2.34	To Order

Photo	Part No	Description	Price (each)	Stock
	7119908677	Torx-bolt with washer	$7.53	To Order

Photo	Part No	Description	Price (each)	Stock
	7119906982	Hex Bolt	$4.93	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905848	Hex Bolt	$1.66	To Order

Photo	Part No	Description	Price (each)	Stock
	7147234212	Blind rivet	$1.11	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	51117495486	Cross member Bumper, front	51117495486 Cross member Bumper, front	$2,655.70	1
2	41007495425	Crash box, left	41007495425 Crash box, left	$1,240.37	1
2	41007495426	Crash box, right	41007495426 Crash box, right	$1,240.37	1
3	51137495525	Supporting strip bumper front	51137495525 Supporting strip bumper front	$520.93	1
4	51117495480	Impact absorber, top	51117495480 Impact absorber, top	$118.02	1
5	51117495481	Carrier, bumper front	51117495481 Carrier, bumper front	$2,291.71	1
6	51117495485	Shock absorber, center	51117495485 Shock absorber, center	$274.68	1
7	51117448891	Adapter plate, left	51117448891 Adapter plate, left	$312.73	1
7	51117448892	Adapter plate, right	51117448892 Adapter plate, right	$312.73	1
8	51117413179	Vertical connection, left	51117413179 Vertical connection, left	$111.68	1
8	51117413180	Vertical connection, right	51117413180 Vertical connection, right	$111.68	1
9	51117497123	Damper, kerb descent	51117497123 Damper, kerb descent	$71.91	2
10	51127004445	Expanding rivet	51127004445 Expanding rivet	$1.03	8
11	51111908077	Expanding rivet	51111908077 Expanding rivet D = 6MM	$0.48	8
12	7142994134	Fillister head screw	7142994134 Fillister head screw	$2.34	8
13	7119908677	Torx-bolt with washer	7119908677 Torx-bolt with washer M12X1,5X115	$7.53	6
14	7119906982	Hex Bolt	7119906982 Hex Bolt M12X1,5X82-10.9	$4.93	8
15	7119905848	Hex Bolt	7119905848 Hex Bolt M8X60	$1.66	12
16	7147234212	Blind rivet	7147234212 Blind rivet	$1.11	2
