Instrument panel upper part of Rolls Royce Rolls Royce Ghost Extended RR22(2019-2023)

View All

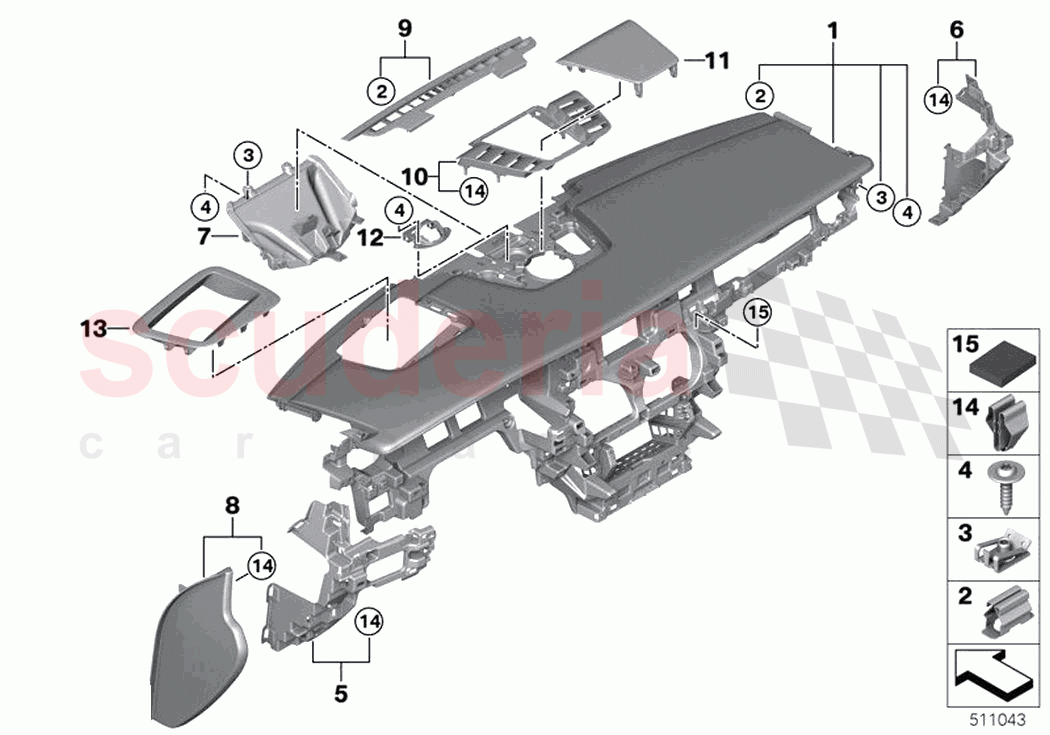

Rolls Royce Ghost Extended RR22(2019-2023) - Instrument panel upper part (1)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51459484051	Instrument panel, upper part	Enquire	To Order
	51459484052	Instrument panel, upper part	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147213397	Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149496754	C-clip sheet metal nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149197038	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51456996681	Support side cover driver's side	Enquire	To Order
	51456996682	Support side cover driver's side	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51456996683	Support side cover passenger's side	Enquire	To Order
	51456996684	Support side cover passenger's side	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51459471958	Holder	Enquire	To Order
	51459471959	Holder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51459484055	Cover, instrument panel, left	Enquire	To Order
	51459484056	Cover, instrument panel, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51459871707	Trim windscreen defroster	Enquire	To Order
	51459871706	Trim windscreen defroster	Enquire	To Order
	51459871708	Trim windscreen defroster	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51459892825	Trim for ventilation outlet centre	Enquire	To Order
	51459458689	Trim for ventilation outlet centre	Enquire	To Order
	51459458691	Trim for ventilation outlet centre	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51459892820	Trim, centre speaker	Enquire	To Order
	51456999709	Trim, centre speaker	Enquire	To Order
	51456999711	Trim, centre speaker	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51459349932	Adapter, centre speaker	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51456996826	Trim piece for head-up display	Enquire	To Order
	51456996827	Trim piece for head-up display	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147321144	Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51452353024	Set felt strip adhesive	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	51459484051	Instrument panel, upper part	51459484051 Instrument panel, upper part COLOUR NEUTRAL	-	1	Enquire
1	51459484052	Instrument panel, upper part	51459484052 Instrument panel, upper part COLOUR NEUTRAL	-	1	Enquire
2	7147213397	Clamp	7147213397 Clamp	-	4	Enquire
3	7149496754	C-clip sheet metal nut	7149496754 C-clip sheet metal nut	-	9	Enquire
4	7149197038	Fillister head screw	7149197038 Fillister head screw DELTA PT4X16	-	37	Enquire
5	51456996681	Support side cover driver's side	51456996681 Support side cover driver's side	-	1	Enquire
5	51456996682	Support side cover driver's side	51456996682 Support side cover driver's side	-	1	Enquire
6	51456996683	Support side cover passenger's side	51456996683 Support side cover passenger's side	-	1	Enquire
6	51456996684	Support side cover passenger's side	51456996684 Support side cover passenger's side	-	1	Enquire
7	51459471958	Holder	51459471958 Holder	-	1	Enquire
7	51459471959	Holder	51459471959 Holder	-	1	Enquire
8	51459484055	Cover, instrument panel, left	51459484055 Cover, instrument panel, left COLOUR NEUTRAL	-	1	Enquire
8	51459484056	Cover, instrument panel, right	51459484056 Cover, instrument panel, right COLOUR NEUTRAL	-	1	Enquire
9	51459871707	Trim windscreen defroster	51459871707 Trim windscreen defroster HAVANNA	-	1	Enquire
9	51459871706	Trim windscreen defroster	51459871706 Trim windscreen defroster NAVY BLUE	-	1	Enquire
9	51459871708	Trim windscreen defroster	51459871708 Trim windscreen defroster ARDENT RED	-	1	Enquire
9	51459871709	Trim windscreen defroster	51459871709 Trim windscreen defroster SCIVARO GREY	-	1	Enquire
9	51456996772	Trim windscreen defroster	51456996772 Trim windscreen defroster BLACK	-	1	Enquire
10	51459892825	Trim for ventilation outlet centre	51459892825 Trim for ventilation outlet centre HAVANNA	-	1	Enquire
10	51459458689	Trim for ventilation outlet centre	51459458689 Trim for ventilation outlet centre NAVY BLUE	-	1	Enquire
10	51459458691	Trim for ventilation outlet centre	51459458691 Trim for ventilation outlet centre ARDENT RED	-	1	Enquire
10	51459458692	Trim for ventilation outlet centre	51459458692 Trim for ventilation outlet centre SCIVARO GREY	-	1	Enquire
10	51459458688	Trim for ventilation outlet centre	51459458688 Trim for ventilation outlet centre BLACK	-	1	Enquire
11	51459892820	Trim, centre speaker	51459892820 Trim, centre speaker HAVANNA	-	1	Enquire
11	51456999709	Trim, centre speaker	51456999709 Trim, centre speaker NAVY BLUE	-	1	Enquire
11	51456999711	Trim, centre speaker	51456999711 Trim, centre speaker ARDENT RED	-	1	Enquire
11	51456999712	Trim, centre speaker	51456999712 Trim, centre speaker SCIVARO GREY	-	1	Enquire
11	51456999708	Trim, centre speaker	51456999708 Trim, centre speaker BLACK	-	1	Enquire
12	51459349932	Adapter, centre speaker	51459349932 Adapter, centre speaker	-	1	Enquire
13	51456996826	Trim piece for head-up display	51456996826 Trim piece for head-up display	-	1	Enquire
13	51456996827	Trim piece for head-up display	51456996827 Trim piece for head-up display	-	1	Enquire
14	7147321144	Clamp	7147321144 Clamp	-	20	Enquire
15	51452353024	Set felt strip adhesive	51452353024 Set felt strip adhesive	-	3	Enquire
