20 - Steering - 20.1 - Steering Fluid System

McLaren Ultimate Series McLaren Speedtail

Find Your Part

McLaren Ultimate Series McLaren Speedtail - 20 - STEERING - 20.1 - STEERING FLUID SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

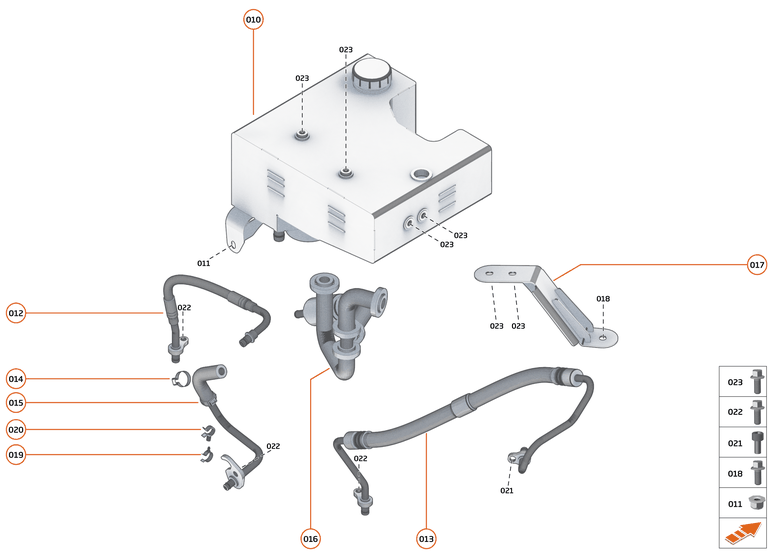

20 - STEERING - 20.1 - STEERING FLUID SYSTEM of McLaren McLaren Ultimate Series McLaren Speedtail Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
010 23DA008CP
RESERVOIR - PAS FLUID
Row ID: ID__23DA008CP_ContPgHS; 		- 1 Enquire
011 00RA055
NUT - M6 - LOCKING - HEX
Row ID: ID__00RA055_ContPgHS; 		- 1 Enquire
012 23DA047CP
ASSY HOSE FEED APMU TO RACK
Row ID: ID__23DA047CP_ContPgHS; 		- 1 Enquire
013 23DA030CP
PIPE FEED PUMP TO MANIFOLD LHD
Row ID: ID__23DA030CP_ContPgHS; 		- 1 Enquire
014 00RB110
OETIKER CLIP - 19.2
Row ID: ID__00RB110_ContPgHS; 		- 1 Enquire
015 23DA017CP
HOSE-FILTER TO RACK
Row ID: ID__23DA017CP_ContPgHS; 		- 1 Enquire
016 23DA019CP
HOSE-RESERVOIR TO FILTER-PUMP
Row ID: ID__23DA019CP_ContPgHS; 		- 1 Enquire
017 23DA032CP
BRKT-PAS RESERVOIR
Row ID: ID__23DA032CP_ContPgHS; 		- 1 Enquire
018 00RA557
BOLT - HEX HEAD - M8X1.25X25
Row ID: ID__00RA557_ContPgHS; 		- 1 Enquire
019 00RB018
CLIP - 11-13MM - MALE
Row ID: ID__00RB018_ContPgHS; 		- 1 Enquire
020 00RB019
CLIP - 90DEG - FEMALE - 10-12MM
Row ID: ID__00RB019_ContPgHS; 		- 1 Enquire
021 00RA540
SCREW - CAP HEAD - M8X1.25X20-10.9-72
Row ID: ID__00RA540_ContPgHS; 		- 1 Enquire
022 00RA002
BOLT - M8X20 - HEX
Row ID: ID__00RA002_ContPgHS; 		- 3 Enquire
023 00RA313
SCREW - M6X16 - HEX - SILVER
Row ID: ID__00RA313_ContPgHS; 		- 6 Enquire
