17 - SUSPENSION - 17.6 - TRANSVERSE LINKS REAR of McLaren McLaren Ultimate Series McLaren Speedtail

View All

McLaren Ultimate Series McLaren Speedtail - 17 - SUSPENSION - 17.6 - TRANSVERSE LINKS REAR

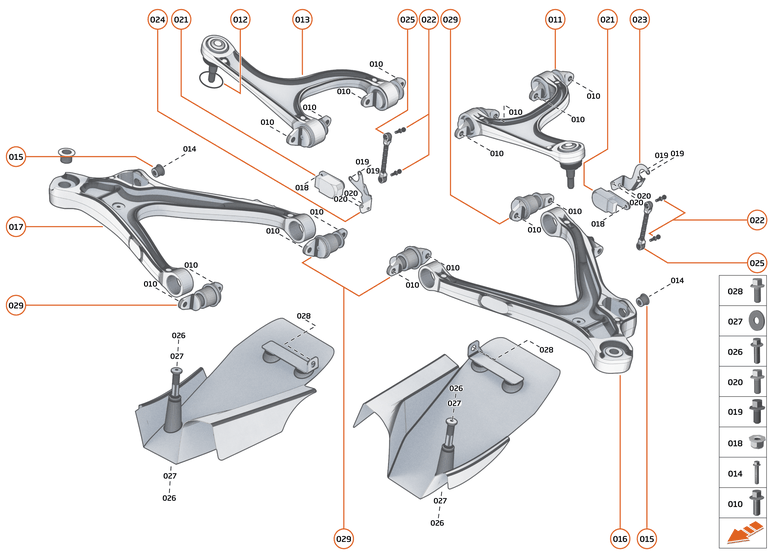

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA457	SCREW - M10X30-10.9 - HEX	00RA457 SCREW - M10X30-10.9 - HEX Row ID: ID__00RA457_ContPgHS;	-	16	Enquire
011	14B0579CP	WISHBONE - UPPER - REAR - LH	14B0579CP WISHBONE - UPPER - REAR - LH Row ID: ID__14B0579CP_ContPgHS;	-	1	Enquire
012	00RA218	RING-PLAIN EXTERNAL-M2400-0400	00RA218 RING-PLAIN EXTERNAL-M2400-0400 Row ID: ID__00RA218_ContPgHS;	-	2	Enquire
013	14B0580CP	WISHBONE - UPPER - REAR - RH	14B0580CP WISHBONE - UPPER - REAR - RH Row ID: ID__14B0580CP_ContPgHS;	-	1	Enquire
014	11B1314CP	BOLT - M10X70 - DAMPER MOUNTING - LOWER	11B1314CP BOLT - M10X70 - DAMPER MOUNTING - LOWER Row ID: ID__11B1314CP_ContPgHS;	-	2	Enquire
015	11B0800CP	Tophat - Spacer - Diameter 20 - 10.2 ID	11B0800CP Tophat - Spacer - Diameter 20 - 10.2 ID Row ID: ID__11B0800CP_ContPgHS;	-	2	Enquire
016	23BA400CP	ASSY WISHBONE LWR RR LH	23BA400CP ASSY WISHBONE LWR RR LH Row ID: ID__23BA400CP_ContPgHS;	-	1	Enquire
017	23BA402CP	ASSY WISHBONE LWR RR RH	23BA402CP ASSY WISHBONE LWR RR RH Row ID: ID__23BA402CP_ContPgHS;	-	1	Enquire
018	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS;	-	2	Enquire
019	00RA087	SCREW - M5X10 - HEX	00RA087 SCREW - M5X10 - HEX Row ID: ID__00RA087_ContPgHS;	-	4	Enquire
020	00RX001	BOLT - M5X16 - HEX	00RX001 BOLT - M5X16 - HEX Row ID: ID__00RX001_ContPgHS;	-	4	Enquire
021	11M0253CP	Sensor - Displacement	11M0253CP Sensor - Displacement Row ID: ID__11M0253CP_ContPgHS;	-	2	Enquire
022	14B0545CP	BALL STUD - DISPLACEMENT SENSOR	14B0545CP BALL STUD - DISPLACEMENT SENSOR Row ID: ID__14B0545CP_ContPgHS;	-	4	Enquire
023	14BA018CP	BRACKET - WISHBONE DISPLACEMENT SENSOR - REAR - LH	14BA018CP BRACKET - WISHBONE DISPLACEMENT SENSOR - REAR - LH Row ID: ID__14BA018CP_ContPgHS;	-	1	Enquire
024	14BA020CP	BRACKET - WISHBONE DISPLACEMENT SENSOR - REAR - RH	14BA020CP BRACKET - WISHBONE DISPLACEMENT SENSOR - REAR - RH Row ID: ID__14BA020CP_ContPgHS;	-	1	Enquire
025	14B0494CP	BALL SCKT SENSOR DISPLACEMENT - GIMBAL	14B0494CP BALL SCKT SENSOR DISPLACEMENT - GIMBAL Row ID: ID__14B0494CP_ContPgHS;	-	2	Enquire
026	00RA120	SCREW - M6X25 - HEX	00RA120 SCREW - M6X25 - HEX Row ID: ID__00RA120_ContPgHS;	-	4	Enquire
027	00RC013	WASHER - M6X18X1.6	00RC013 WASHER - M6X18X1.6 Row ID: ID__00RC013_ContPgHS;	-	4	Enquire
028	00RA616	BOLT - M10X1.5 - HEX	00RA616 BOLT - M10X1.5 - HEX Row ID: ID__00RA616_ContPgHS;	-	1	Enquire
029	15BA217CP	BUSH-SUSP-WBONE-ALU-LUG-STEEL-	15BA217CP BUSH-SUSP-WBONE-ALU-LUG-STEEL- Row ID: ID__15BA217CP_ContPgHS;	-	2	Enquire
