17 - SUSPENSION - 17.8 - SUSPENSION FLUID SYSTEMS-P1 of McLaren McLaren Ultimate Series McLaren Speedtail

View All

McLaren Ultimate Series McLaren Speedtail - 17 - SUSPENSION - 17.8 - SUSPENSION FLUID SYSTEMS-P1

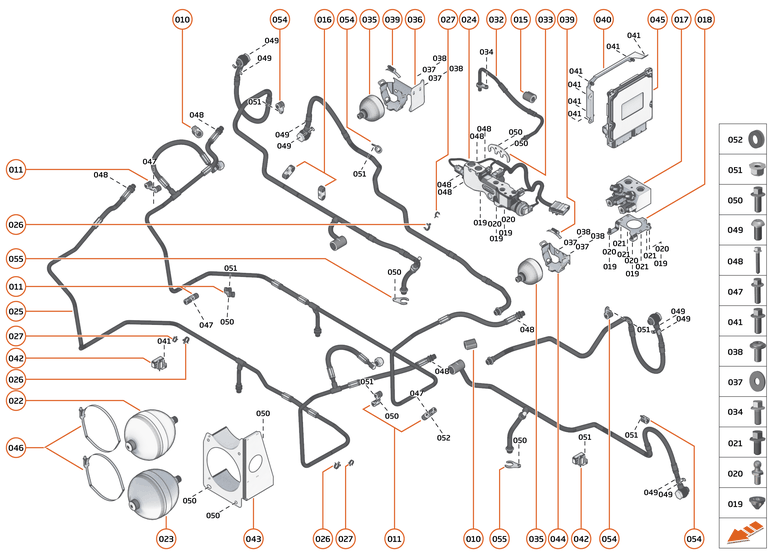

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA357	PIPE PROTECTOR	00RA357 PIPE PROTECTOR Row ID: ID__00RA357_ContPgHS;	-	2	Enquire
011	00RB127	P-CLIP - 12/13 - EPDM	00RB127 P-CLIP - 12/13 - EPDM Row ID: ID__00RB127_ContPgHS;	-	5	Enquire
012	23BA091CP	PIPE-FR-LATERAL-CIRCUIT 2	23BA091CP PIPE-FR-LATERAL-CIRCUIT 2 Row ID: ID__23BA091CP_ContPgHS;	-	1	Enquire
015	00RA366	PIPE PROTECTOR - 13MM ID	00RA366 PIPE PROTECTOR - 13MM ID Row ID: ID__00RA366_ContPgHS;	-	1	Enquire
016	00RB131	HOSE SEPERATOR PHS6	00RB131 HOSE SEPERATOR PHS6 Row ID: ID__00RB131_ContPgHS;	-	2	Enquire
017	15BA022CP	HOUSING - KINETIC DAMPER - MAPMU - FRONT	15BA022CP HOUSING - KINETIC DAMPER - MAPMU - FRONT Row ID: ID__15BA022CP_ContPgHS;	-	1	Enquire
018	23BA138CP	K DAMP APMU BRACKET FRONT	23BA138CP K DAMP APMU BRACKET FRONT Row ID: ID__23BA138CP_ContPgHS;	-	1	Enquire
019	00RB187	CLIP - SNAPLOC - 14X7	00RB187 CLIP - SNAPLOC - 14X7 Row ID: ID__00RB187_ContPgHS;	-	6	Enquire
020	00RA585	STUD BALL - M6X9	00RA585 STUD BALL - M6X9 Row ID: ID__00RA585_ContPgHS;	-	6	Enquire
021	00RA087	SCREW - M5X10 - HEX	00RA087 SCREW - M5X10 - HEX Row ID: ID__00RA087_ContPgHS;	-	4	Enquire
022	23BA075CP	KDAMP CARBON ACCUM BUMP FRONT - LEFT	23BA075CP KDAMP CARBON ACCUM BUMP FRONT - LEFT Row ID: ID__23BA075CP_ContPgHS;	-	1	Enquire
023	23BA061CP	KDAMP CARBON ACCUM REBOUND FRO	23BA061CP KDAMP CARBON ACCUM REBOUND FRO Row ID: ID__23BA061CP_ContPgHS;	-	1	Enquire
024	15BA027CP	AUTOMATIC - PRESSURE MONITORING UNIT	15BA027CP AUTOMATIC - PRESSURE MONITORING UNIT Row ID: ID__15BA027CP_ContPgHS;	-	1	Enquire
025	23BA163CP	PIPE-FR-LATERAL-CIRCUIT 1	23BA163CP PIPE-FR-LATERAL-CIRCUIT 1 Row ID: ID__23BA163CP_ContPgHS;	-	1	Enquire
026	00RB032	CLIP - 13-14MM - FEMALE	00RB032 CLIP - 13-14MM - FEMALE Row ID: ID__00RB032_ContPgHS;	-	3	Enquire
027	00RB018	CLIP - 11-13MM - MALE	00RB018 CLIP - 11-13MM - MALE Row ID: ID__00RB018_ContPgHS;	-	3	Enquire
028	23BA350CP	PIPE KDAMP BUMP FR LH	23BA350CP PIPE KDAMP BUMP FR LH Row ID: ID__23BA350CP_ContPgHS;	-	1	Enquire
029	23BA337CP	PIPE KDAMP REBOUND FR RH	23BA337CP PIPE KDAMP REBOUND FR RH Row ID: ID__23BA337CP_ContPgHS;	-	1	Enquire
030	23BA356CP	PIPE KDAMP REBOUND FR LH	23BA356CP PIPE KDAMP REBOUND FR LH Row ID: ID__23BA356CP_ContPgHS;	-	1	Enquire
031	23BA355CP	PIPE KDAMP BUMP FR RH	23BA355CP PIPE KDAMP BUMP FR RH Row ID: ID__23BA355CP_ContPgHS;	-	1	Enquire
032	23BA116CP	PIPE KDAMP FEED FR	23BA116CP PIPE KDAMP FEED FR Row ID: ID__23BA116CP_ContPgHS;	-	1	Enquire
033	15BA084CP	KEEP PLATE - MICRO APMU - FRONT	15BA084CP KEEP PLATE - MICRO APMU - FRONT Row ID: ID__15BA084CP_ContPgHS;	-	1	Enquire
034	00RA484	BOLT - HEX HEAD - FLANGED - M8X20	00RA484 BOLT - HEX HEAD - FLANGED - M8X20 Row ID: ID__00RA484_ContPgHS;	-	1	Enquire
035	23BA140CP	ROLL ACCUMULATOR	23BA140CP ROLL ACCUMULATOR Row ID: ID__23BA140CP_ContPgHS;	-	2	Enquire
036	23BA328CP	BKT MOUNTING RH ROLL ACCUMULAT	23BA328CP BKT MOUNTING RH ROLL ACCUMULAT Row ID: ID__23BA328CP_ContPgHS;	-	1	Enquire
037	00RC077	WASHER - M6X18X1.6 - STAINLESS STEEL	00RC077 WASHER - M6X18X1.6 - STAINLESS STEEL Row ID: ID__00RC077_ContPgHS;	-	4	Enquire
038	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Row ID: ID__00RA409_ContPgHS;	-	4	Enquire
039	00RB068	Hose Clamp - 80-100 - Norma Torro	00RB068 Hose Clamp - 80-100 - Norma Torro Row ID: ID__00RB068_ContPgHS;	-	2	Enquire
040	23BA278CP	BRACKET CCU MTG	23BA278CP BRACKET CCU MTG Row ID: ID__23BA278CP_ContPgHS;	-	1	Enquire
041	00RA083	SCREW - M6X20 - FLANGE HEX	00RA083 SCREW - M6X20 - FLANGE HEX Row ID: ID__00RA083_ContPgHS;	-	7	Enquire
042	11M0252CP	Sensor - Accelerometer	11M0252CP Sensor - Accelerometer Row ID: ID__11M0252CP_ContPgHS;	-	2	Enquire
043	23BA293CP	BRKT-ACCUM FT LH	23BA293CP BRKT-ACCUM FT LH Row ID: ID__23BA293CP_ContPgHS;	-	1	Enquire
044	23BA141CP	MOUNTING ROLL ACCUMULATOR	23BA141CP MOUNTING ROLL ACCUMULATOR Row ID: ID__23BA141CP_ContPgHS;	-	1	Enquire
045	15BA100CP	CONTROL UNIT - CHASSIS	15BA100CP CONTROL UNIT - CHASSIS Row ID: ID__15BA100CP_ContPgHS;	-	1	Enquire
046	00RB242	CLMP-HOSE-WORM DR-150X9-SS-00	00RB242 CLMP-HOSE-WORM DR-150X9-SS-00 Row ID: ID__00RB242_ContPgHS;	-	2	Enquire
047	00RA120	SCREW - M6X25 - HEX	00RA120 SCREW - M6X25 - HEX Row ID: ID__00RA120_ContPgHS;	-	3	Enquire
048	00RA201	BOLT - M5X0.8X30 - HEX	00RA201 BOLT - M5X0.8X30 - HEX Row ID: ID__00RA201_ContPgHS;	-	8	Enquire
049	00RA099	SCREW - M4X25 - HEX	00RA099 SCREW - M4X25 - HEX Row ID: ID__00RA099_ContPgHS;	-	8	Enquire
050	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID__00RA313_ContPgHS;	-	9	Enquire
051	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS;	-	8	Enquire
052	00RC052	WASHER - M6X6.0MM	00RC052 WASHER - M6X6.0MM Row ID: ID__00RC052_ContPgHS;	-	1	Enquire
054	00RB003	P Clip - DIA 14	00RB003 P Clip - DIA 14 Row ID: ID__00RB003_ContPgHS;	-	4	Enquire
055	15BA151CP	KEEP PLATE - 14MM	15BA151CP KEEP PLATE - 14MM Row ID: ID__15BA151CP_ContPgHS;	-	2	Enquire
