17 - SUSPENSION - 17.5 - UPRIGHTS REAR of McLaren McLaren Ultimate Series McLaren Speedtail

View All

McLaren Ultimate Series McLaren Speedtail - 17 - SUSPENSION - 17.5 - UPRIGHTS REAR

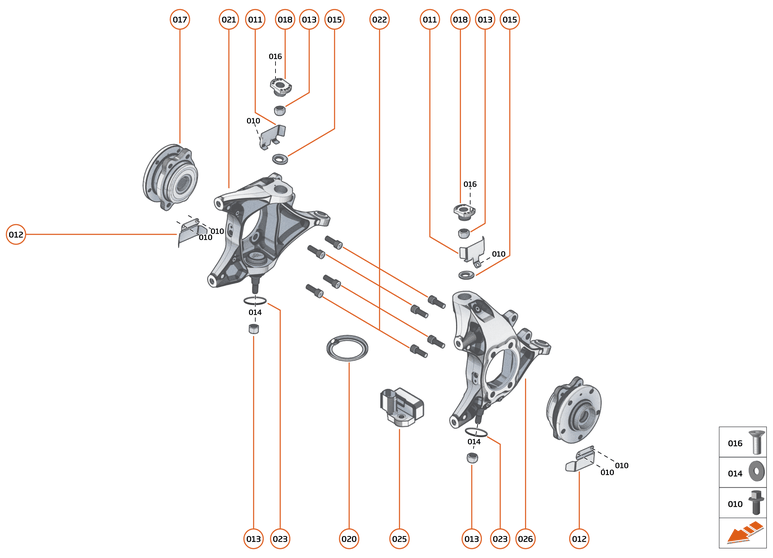

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA165	BOLT - M5X8 - HEX	00RA165 BOLT - M5X8 - HEX Row ID: ID__00RA165_ContPgHS;	-	1	Enquire
011	14B0631CP	HEATSHIELD - BALL JOINT - REAR - UPPER	14B0631CP HEATSHIELD - BALL JOINT - REAR - UPPER Row ID: ID__14B0631CP_ContPgHS;	-	1	Enquire
012	14B0632CP	HEATSHIELD - BALL JOINT - REAR - LOWER	14B0632CP HEATSHIELD - BALL JOINT - REAR - LOWER Row ID: ID__14B0632CP_ContPgHS;	-	1	Enquire
013	00RA229	NUT - M14X1.5 - LOCKED HEX	00RA229 NUT - M14X1.5 - LOCKED HEX Row ID: ID__00RA229_ContPgHS;	-	2	Enquire
014	11B0320CP	WASHER - DIA 35X3.9X14.5	11B0320CP WASHER - DIA 35X3.9X14.5 Row ID: ID__11B0320CP_ContPgHS;	-	1	Enquire
015	11B0739CP	WASHER - CAMBER ADJUSTMENT	11B0739CP WASHER - CAMBER ADJUSTMENT Row ID: ID__11B0739CP_ContPgHS;	-	1	Enquire
016	11B0993CP	SCREW - M3X12 - HEX	11B0993CP SCREW - M3X12 - HEX Row ID: ID__11B0993CP_ContPgHS;	-	1	Enquire
017	11B0322CP	WHEEL HUB ASSY - BEARING	11B0322CP WHEEL HUB ASSY - BEARING Row ID: ID__11B0322CP_ContPgHS;	-	1	Enquire
018	11B0541CP	TOPHAT - CAMBER ADJUSTMENT	11B0541CP TOPHAT - CAMBER ADJUSTMENT Row ID: ID__11B0541CP_ContPgHS;	-	1	Enquire
020	11B0630CP	PROTECTOR CAP - HUB	11B0630CP PROTECTOR CAP - HUB Row ID: ID__11B0630CP_ContPgHS;	-	1	Enquire
021	23BA566CP	ASSY UPRIGHT RR RH	23BA566CP ASSY UPRIGHT RR RH Row ID: ID__23BA566CP_ContPgHS;	-	1	Enquire
022	14BA220CP	HEX SOCKET HD CAP M12X30 8.8	14BA220CP HEX SOCKET HD CAP M12X30 8.8 Row ID: ID__14BA220CP_ContPgHS;	-	4	Enquire
023	00RA218	RING-PLAIN EXTERNAL-M2400-0400	00RA218 RING-PLAIN EXTERNAL-M2400-0400 Row ID: ID__00RA218_ContPgHS;	-	1	Enquire
025	16MB093CP	SENSOR HUB ACCELEROMETER - FR LH OR RR LH OR RR RH	16MB093CP SENSOR HUB ACCELEROMETER - FR LH OR RR LH OR RR RH Row ID: ID__16MB093CP_ContPgHS;	-	2	Enquire
026	23BA565CP	ASSY UPRIGHT RR LH	23BA565CP ASSY UPRIGHT RR LH Row ID: ID__23BA565CP_ContPgHS;	-	1	Enquire
