18 - BRAKES - 18.9 - VACCUM SYSTEM of McLaren McLaren Ultimate Series McLaren Speedtail

View All

McLaren Ultimate Series McLaren Speedtail - 18 - BRAKES - 18.9 - VACCUM SYSTEM

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

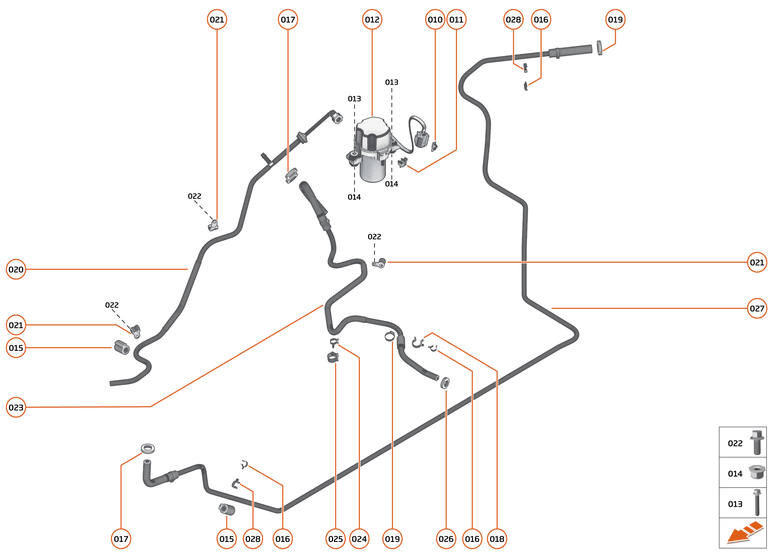

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RB059	CLIP CONNECTOR - TRW	00RB059 CLIP CONNECTOR - TRW Row ID: ID__00RB059_ContPgHS;	-	1	Enquire
011	00RG025	CABLE TIE - PARALLEL - EDGE PANEL	00RG025 CABLE TIE - PARALLEL - EDGE PANEL Row ID: ID__00RG025_ContPgHS;	-	1	Enquire
012	15CA134CP		15CA134CP EVAC PUMP; Row ID: ID__15CA134CP_ContPgHS;	-	1	Enquire
013	00RA631	BLT-HX-FL-PPT-M6X1X45-8.8-72	00RA631 BLT-HX-FL-PPT-M6X1X45-8.8-72 Row ID: ID__00RA631_ContPgHS;	-	2	Enquire
014	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS;	-	2	Enquire
015	00RA366	PIPE PROTECTOR - 13MM ID	00RA366 PIPE PROTECTOR - 13MM ID Row ID: ID__00RA366_ContPgHS;	-	2	Enquire
016	00RB018	CLIP - 11-13MM - MALE	00RB018 CLIP - 11-13MM - MALE Row ID: ID__00RB018_ContPgHS;	-	1	Enquire
017	00RB110	OETIKER CLIP - 19.2	00RB110 OETIKER CLIP - 19.2 Row ID: ID__00RB110_ContPgHS;	-	2	Enquire
018	00RB007	CLIP - 18-20MM - FEMALE	00RB007 CLIP - 18-20MM - FEMALE Row ID: ID__00RB007_ContPgHS;	-	1	Enquire
019	00RB094	OETIKER CLIP - 21.0	00RB094 OETIKER CLIP - 21.0 Row ID: ID__00RB094_ContPgHS;	-	2	Enquire
020	23CA178CP	PIPE-BRAKE-VAC-TEE-EVAC PUMP	23CA178CP PIPE-BRAKE-VAC-TEE-EVAC PUMP Row ID: ID__23CA178CP_ContPgHS;	-	1	Enquire
021	00RB127	P-CLIP - 12/13 - EPDM	00RB127 P-CLIP - 12/13 - EPDM Row ID: ID__00RB127_ContPgHS;	-	3	Enquire
022	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID__00RA313_ContPgHS;	-	3	Enquire
023	23CA180CP	PIPE-BRAKE-VAC-TEE-ENG	23CA180CP PIPE-BRAKE-VAC-TEE-ENG Row ID: ID__23CA180CP_ContPgHS;	-	1	Enquire
024	00RB034	CLIP - 14-15MM - MALE	00RB034 CLIP - 14-15MM - MALE Row ID: ID__00RB034_ContPgHS;	-	1	Enquire
025	00RB120	CLIP - 90 DEGREE - FEMALE - 20-22	00RB120 CLIP - 90 DEGREE - FEMALE - 20-22 Row ID: ID__00RB120_ContPgHS;	-	1	Enquire
026	00RB096	STEPLESS EAR CLAMP - 16.2-706R	00RB096 STEPLESS EAR CLAMP - 16.2-706R Row ID: ID__00RB096_ContPgHS;	-	1	Enquire
027	23CA089CP	PIPE-BRAKE-VAC-TMC-TEE	23CA089CP PIPE-BRAKE-VAC-TMC-TEE Row ID: ID__23CA089CP_ContPgHS;	-	1	Enquire
028	00RB032	CLIP - 13-14MM - FEMALE	00RB032 CLIP - 13-14MM - FEMALE Row ID: ID__00RB032_ContPgHS;	-	2	Enquire
