17 - SUSPENSION - 17.3 - TRANSVERSE LINKS FRONT of McLaren McLaren Ultimate Series McLaren Speedtail

View All

McLaren Ultimate Series McLaren Speedtail - 17 - SUSPENSION - 17.3 - TRANSVERSE LINKS FRONT

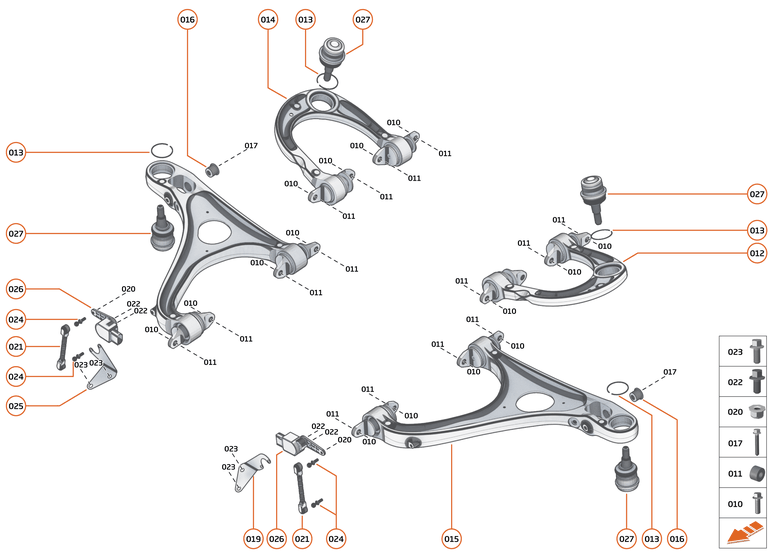

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA699	BLT-HX HD-FL-M10X1.5X45-10.9-7	00RA699 BLT-HX HD-FL-M10X1.5X45-10.9-7 Row ID: ID__00RA699_ContPgHS;	-	16	Enquire
011	23BA015CP	WISHBONE MOUNT SPACER - DIA 20	23BA015CP WISHBONE MOUNT SPACER - DIA 20 Row ID: ID__23BA015CP_ContPgHS;	-	16	Enquire
012	23BA540CP	ASSY WISHBONE UPR FR LH	23BA540CP ASSY WISHBONE UPR FR LH Row ID: ID__23BA540CP_ContPgHS;	-	1	Enquire
013	00RA218	RING-PLAIN EXTERNAL-M2400-0400	00RA218 RING-PLAIN EXTERNAL-M2400-0400 Row ID: ID__00RA218_ContPgHS;	-	4	Enquire
014	23BA541CP	ASSY WISHBONE UPR FR RH	23BA541CP ASSY WISHBONE UPR FR RH Row ID: ID__23BA541CP_ContPgHS;	-	1	Enquire
015	23BA022CP	ASSY STEERING RACK	23BA022CP ASSY STEERING RACK Row ID: ID__23BA022CP_ContPgHS;	-	1	Enquire
016	11B0800CP	Tophat - Spacer - Diameter 20 - 10.2 ID	11B0800CP Tophat - Spacer - Diameter 20 - 10.2 ID Row ID: ID__11B0800CP_ContPgHS;	-	1	Enquire
017	12B0761CP	BOLT - M10X72 - HEX - FLANGE	12B0761CP BOLT - M10X72 - HEX - FLANGE Row ID: ID__12B0761CP_ContPgHS;	-	2	Enquire
018	23BA024CP	ASSY-WISHBONE-LWR-FR-RH	23BA024CP ASSY-WISHBONE-LWR-FR-RH Row ID: ID__23BA024CP_ContPgHS;	-	1	Enquire
019	14BA004CP	BRACKET - DISPLACEMENT SENSOR - FRONT - LH	14BA004CP BRACKET - DISPLACEMENT SENSOR - FRONT - LH Row ID: ID__14BA004CP_ContPgHS;	-	1	Enquire
020	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS;	-	1	Enquire
021	14B0494CP	BALL SCKT SENSOR DISPLACEMENT - GIMBAL	14B0494CP BALL SCKT SENSOR DISPLACEMENT - GIMBAL Row ID: ID__14B0494CP_ContPgHS;	-	2	Enquire
022	00RA087	SCREW - M5X10 - HEX	00RA087 SCREW - M5X10 - HEX Row ID: ID__00RA087_ContPgHS;	-	2	Enquire
023	00RA083	SCREW - M6X20 - FLANGE HEX	00RA083 SCREW - M6X20 - FLANGE HEX Row ID: ID__00RA083_ContPgHS;	-	2	Enquire
024	14B0545CP	BALL STUD - DISPLACEMENT SENSOR	14B0545CP BALL STUD - DISPLACEMENT SENSOR Row ID: ID__14B0545CP_ContPgHS;	-	2	Enquire
025	14BA006CP	BRACKET - DISPLACEMENT SENSOR - FRONT - RH	14BA006CP BRACKET - DISPLACEMENT SENSOR - FRONT - RH Row ID: ID__14BA006CP_ContPgHS;	-	1	Enquire
026	13B0681CP	SENSOR - DISPLACEMENT	13B0681CP SENSOR - DISPLACEMENT Row ID: ID__13B0681CP_ContPgHS;	-	2	Enquire
027	14BA039CP	BALL JOINT - GAITER - LOWER - KIT	14BA039CP BALL JOINT - GAITER - LOWER - KIT Row ID: ID__14BA039CP_ContPgHS;	-	1	Enquire
