17 - SUSPENSION - 17.9 - SUSPENSION FLUID SYSTEMS-P2 of McLaren McLaren Ultimate Series McLaren Speedtail

View All

McLaren Ultimate Series McLaren Speedtail - 17 - SUSPENSION - 17.9 - SUSPENSION FLUID SYSTEMS-P2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

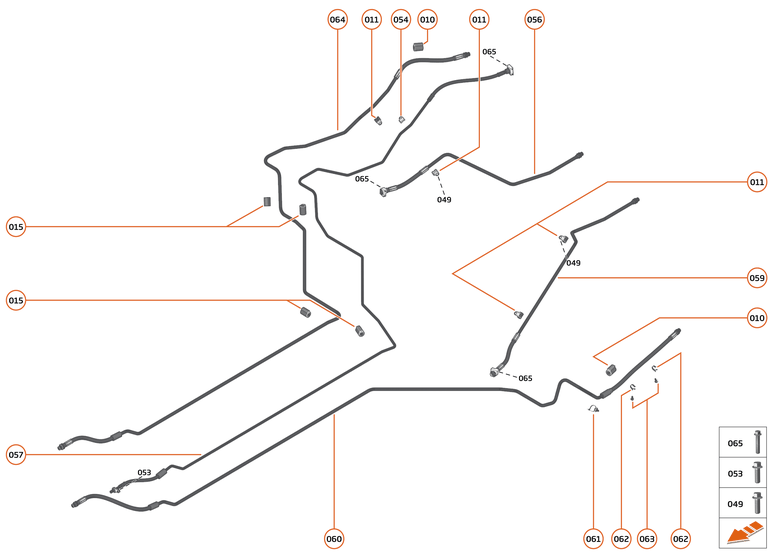

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	00RA357	PIPE PROTECTOR	00RA357 PIPE PROTECTOR Row ID: ID__00RA357_ContPgHS;	-	2	Enquire
011	00RB127	P-CLIP - 12/13 - EPDM	00RB127 P-CLIP - 12/13 - EPDM Row ID: ID__00RB127_ContPgHS;	-	4	Enquire
015	00RA366	PIPE PROTECTOR - 13MM ID	00RA366 PIPE PROTECTOR - 13MM ID Row ID: ID__00RA366_ContPgHS;	-	4	Enquire
049	00RA099	SCREW - M4X25 - HEX	00RA099 SCREW - M4X25 - HEX Row ID: ID__00RA099_ContPgHS;	-	2	Enquire
053	00RA002	BOLT - M8X20 - HEX	00RA002 BOLT - M8X20 - HEX Row ID: ID__00RA002_ContPgHS;	-	1	Enquire
056	23BA165CP	PIPE PUMP TO LTR UNDERFLOOR	23BA165CP PIPE PUMP TO LTR UNDERFLOOR Row ID: ID__23BA165CP_ContPgHS;	-	1	Enquire
057	23BA100CP	PIPE KDAMP FEED RR FRONT SECTI	23BA100CP PIPE KDAMP FEED RR FRONT SECTI Row ID: ID__23BA100CP_ContPgHS;	-	1	Enquire
058	00RB098	P-CLIP - DIA 10 - SILICONE	00RB098 P-CLIP - DIA 10 - SILICONE Row ID: ID__00RB098_ContPgHS;	-	2	Enquire
059	23BA164CP	PIPE-RR-LONGI-CIRCUIT 1	23BA164CP PIPE-RR-LONGI-CIRCUIT 1 Row ID: ID__23BA164CP_ContPgHS;	-	1	Enquire
060	23BA063CP	PIPE-LONGI-TUNNEL-CIRCUIT 1	23BA063CP PIPE-LONGI-TUNNEL-CIRCUIT 1 Row ID: ID__23BA063CP_ContPgHS;	-	1	Enquire
061	00RL031	CAB TIE-FTREE-200X5-44-NYL-BLK	00RL031 CAB TIE-FTREE-200X5-44-NYL-BLK Row ID: ID__00RL031_ContPgHS;	-	1	Enquire
062	00RB168	SWIVEL CLIP - 4.3-5.2 - FEMALE	00RB168 SWIVEL CLIP - 4.3-5.2 - FEMALE Row ID: ID__00RB168_ContPgHS;	-	2	Enquire
063	00RB044	SWIVEL PIPE CLIP - 16MM	00RB044 SWIVEL PIPE CLIP - 16MM Row ID: ID__00RB044_ContPgHS;	-	2	Enquire
064	23BA065CP	PIPE-LONGI-TUNNEL-CIRCUIT2	23BA065CP PIPE-LONGI-TUNNEL-CIRCUIT2 Row ID: ID__23BA065CP_ContPgHS;	-	1	Enquire
065	00RA235	BOLT - M5X35 - FLANGED - 8.8	00RA235 BOLT - M5X35 - FLANGED - 8.8 Row ID: ID__00RA235_ContPgHS;	-	3	Enquire
