17 - SUSPENSION - 17.2 - UPRIGHTS FRONT of McLaren McLaren Ultimate Series McLaren Speedtail

View All

McLaren Ultimate Series McLaren Speedtail - 17 - SUSPENSION - 17.2 - UPRIGHTS FRONT

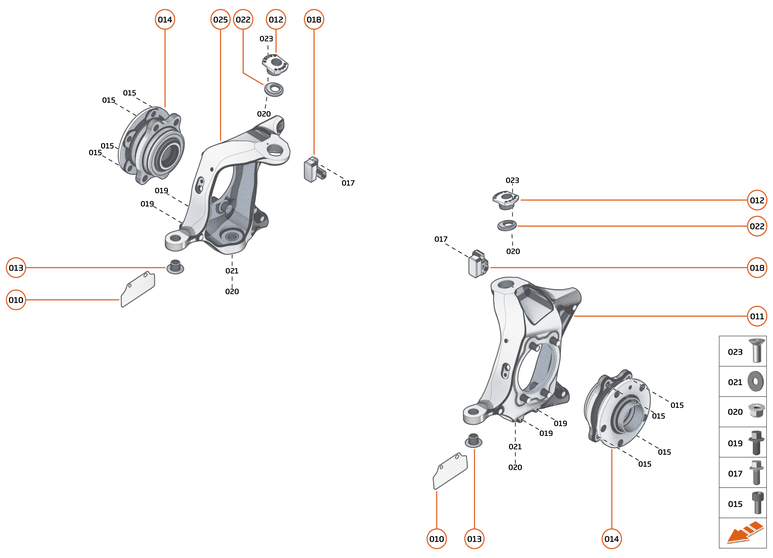

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RC048	WASHER - FORM C - 21X1.6 - M8	00RC048 WASHER - FORM C - 21X1.6 - M8 Row ID: ID__00RC048_ContPgHS;	-	1	Enquire
000	00RA093	BOLT-HEX HEAD-FLAN12-M8X45-8.8	00RA093 BOLT-HEX HEAD-FLAN12-M8X45-8.8 Row ID: ID__00RA093_ContPgHS;	-	1	Enquire
010	14B0431CP	HEATSHIELD - SUSPENSION UPRIGHT - LOWER	14B0431CP HEATSHIELD - SUSPENSION UPRIGHT - LOWER Row ID: ID__14B0431CP_ContPgHS;	-	1	Enquire
011	23BA564CP	ASSY-UPRIGHT-FR-LH	23BA564CP ASSY-UPRIGHT-FR-LH Row ID: ID__23BA564CP_ContPgHS;	-	1	Enquire
012	11B0541CP	TOPHAT - CAMBER ADJUSTMENT	11B0541CP TOPHAT - CAMBER ADJUSTMENT Row ID: ID__11B0541CP_ContPgHS;	-	1	Enquire
013	13B0750CP	TOPHAT - TRACKROD - 1.6 TAPER	13B0750CP TOPHAT - TRACKROD - 1.6 TAPER Row ID: ID__13B0750CP_ContPgHS;	-	1	Enquire
014	13BA350RP	WHEEL HUB ASSY - BEARING	13BA350RP WHEEL HUB ASSY - BEARING Row ID: ID__13BA350RP_ContPgHS;	-	1	Enquire
015	14BA220CP	HEX SOCKET HD CAP M12X30 8.8	14BA220CP HEX SOCKET HD CAP M12X30 8.8 Row ID: ID__14BA220CP_ContPgHS;	-	8	Enquire
017	00RA083	SCREW - M6X20 - FLANGE HEX	00RA083 SCREW - M6X20 - FLANGE HEX Row ID: ID__00RA083_ContPgHS;	-	2	Enquire
018	16MB358CP	SENSOR HUB ACCELEROMETER FR RH - ONLY	16MB358CP SENSOR HUB ACCELEROMETER FR RH - ONLY Row ID: ID__16MB358CP_ContPgHS;	-	2	Enquire
018	16MB093CP	SENSOR HUB ACCELEROMETER - FR LH OR RR LH OR RR RH	16MB093CP SENSOR HUB ACCELEROMETER - FR LH OR RR LH OR RR RH Row ID: ID__16MB093CP_ContPgHS;	-	2	Enquire
019	00RA165	BOLT - M5X8 - HEX	00RA165 BOLT - M5X8 - HEX Row ID: ID__00RA165_ContPgHS;	-	4	Enquire
020	00RA229	NUT - M14X1.5 - LOCKED HEX	00RA229 NUT - M14X1.5 - LOCKED HEX Row ID: ID__00RA229_ContPgHS;	-	2	Enquire
021	11B0320CP	WASHER - DIA 35X3.9X14.5	11B0320CP WASHER - DIA 35X3.9X14.5 Row ID: ID__11B0320CP_ContPgHS;	-	1	Enquire
022	11B0739CP	WASHER - CAMBER ADJUSTMENT	11B0739CP WASHER - CAMBER ADJUSTMENT Row ID: ID__11B0739CP_ContPgHS;	-	1	Enquire
023	11B0993CP	SCREW - M3X12 - HEX	11B0993CP SCREW - M3X12 - HEX Row ID: ID__11B0993CP_ContPgHS;	-	1	Enquire
025	23BA563CP	ASSY-UPRIGHT-FR-RH	23BA563CP ASSY-UPRIGHT-FR-RH Row ID: ID__23BA563CP_ContPgHS;	-	1	Enquire
