18 - BRAKES - 18.8 - BRAKE BOOST SYSTEM of McLaren McLaren Ultimate Series McLaren Speedtail

View All

McLaren Ultimate Series McLaren Speedtail - 18 - BRAKES - 18.8 - BRAKE BOOST SYSTEM

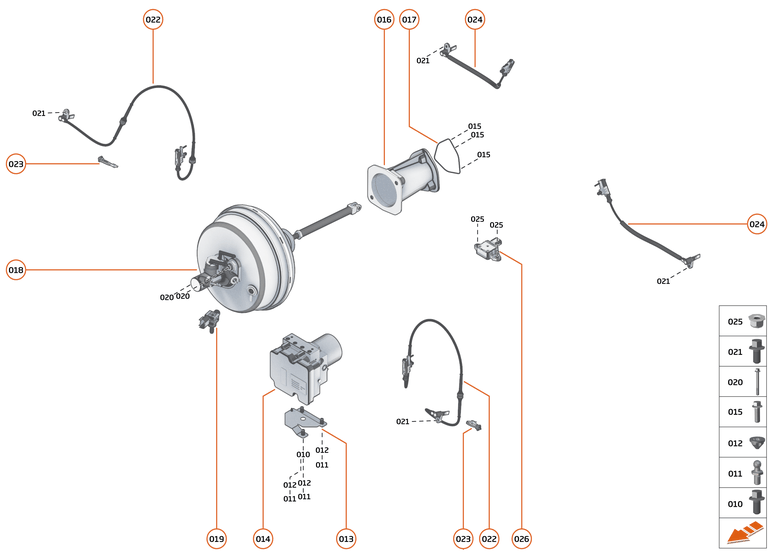

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RA486	BOLT - HEX HEAD - FLANGED - M8X30	00RA486 BOLT - HEX HEAD - FLANGED - M8X30 Row ID: ID__00RA486_ContPgHS;	-	3	Enquire
010	00RA573	BOLT - M10X1 - HEX	00RA573 BOLT - M10X1 - HEX Row ID: ID__00RA573_ContPgHS;	-	1	Enquire
011	00RA585	STUD BALL - M6X9	00RA585 STUD BALL - M6X9 Row ID: ID__00RA585_ContPgHS;	-	3	Enquire
012	00RB187	CLIP - SNAPLOC - 14X7	00RB187 CLIP - SNAPLOC - 14X7 Row ID: ID__00RB187_ContPgHS;	-	3	Enquire
013	23CA091CP	BRKT-ABS-MODULATOR	23CA091CP BRKT-ABS-MODULATOR Row ID: ID__23CA091CP_ContPgHS;	-	1	Enquire
014	13C0205CP	ABS MODULATOR 46 PIN EUCON - PRE-FILLED	13C0205CP ABS MODULATOR 46 PIN EUCON - PRE-FILLED Row ID: ID__13C0205CP_ContPgHS;	-	1	Enquire
015	00RA557	BOLT - HEX HEAD - M8X1.25X25	00RA557 BOLT - HEX HEAD - M8X1.25X25 Row ID: ID__00RA557_ContPgHS;	-	3	Enquire
016	23CA093CP	MNTG BRAKE BOOSTER	23CA093CP MNTG BRAKE BOOSTER Row ID: ID__23CA093CP_ContPgHS;	-	1	Enquire
017	00RE012	O-RING - BRACKET - BRAKE BOOSTER	00RE012 O-RING - BRACKET - BRAKE BOOSTER Row ID: ID__00RE012_ContPgHS;	-	1	Enquire
018	23CA148CP	ASSY-BRAKE BOOSTER 25.4	23CA148CP ASSY-BRAKE BOOSTER 25.4 Row ID: ID__23CA148CP_ContPgHS;	-	1	Enquire
018	14CA150CP	ASSY-BRAKE BOOSTER	14CA150CP ASSY-BRAKE BOOSTER Row ID: ID__14CA150CP_ContPgHS;	-	1	Enquire
019	13M0801CP	VACUUM SENSOR WITH CHECK VALVE	13M0801CP VACUUM SENSOR WITH CHECK VALVE Row ID: ID__13M0801CP_ContPgHS;	-	1	Enquire
020	14CA030CP	BOLT - BRAKE BOOSTER - M8X184	14CA030CP BOLT - BRAKE BOOSTER - M8X184 Row ID: ID__14CA030CP_ContPgHS;	-	2	Enquire
021	00RX003	BOLT - M6X1X12 - HEX	00RX003 BOLT - M6X1X12 - HEX Row ID: ID__00RX003_ContPgHS;	-	4	Enquire
022	12M0735CP	SENSOR - WHEEL SPEED	12M0735CP SENSOR - WHEEL SPEED Row ID: ID__12M0735CP_ContPgHS;	-	2	Enquire
022	11E0022CP	HEATSHIELD-WHEEL S24SOR	11E0022CP HEATSHIELD-WHEEL S24SOR Row ID: ID__11E0022CP_ContPgHS;	$45.68	2
023	00RL001	CABLE TIE - FIRTREE BASE	00RL001 CABLE TIE - FIRTREE BASE Row ID: ID__00RL001_ContPgHS;	-	2	Enquire
024	11M0432CP	SENSOR - WHEEL SPEED - REAR	11M0432CP SENSOR - WHEEL SPEED - REAR Row ID: ID__11M0432CP_ContPgHS;	-	2	Enquire
026	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS;	-	2	Enquire
026	15MA186CP	SENSOR - YAW RATE	15MA186CP SENSOR - YAW RATE Row ID: ID__15MA186CP_ContPgHS;	-	1	Enquire
