18 - BRAKES - 18.10 - BRAKE PIPES of McLaren McLaren Ultimate Series McLaren Speedtail

View All

McLaren Ultimate Series McLaren Speedtail - 18 - BRAKES - 18.10 - BRAKE PIPES

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

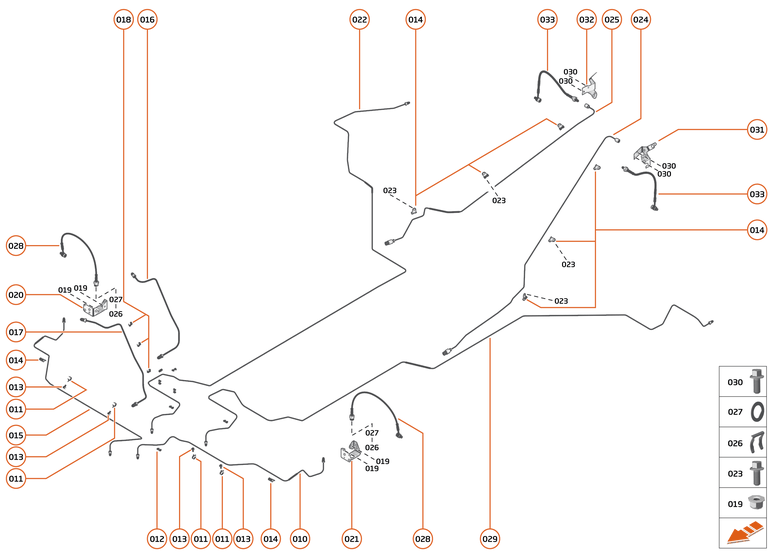

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	23CA011CP	PIPE-BRAKE-ABS MOD-HOSE-FR-LH	23CA011CP PIPE-BRAKE-ABS MOD-HOSE-FR-LH Row ID: ID__23CA011CP_ContPgHS;	-	1	Enquire
011	00RB018	CLIP - 11-13MM - MALE	00RB018 CLIP - 11-13MM - MALE Row ID: ID__00RB018_ContPgHS;	-	4	Enquire
012	00RB134	DOUBLE PIPE CLIP IAC27	00RB134 DOUBLE PIPE CLIP IAC27 Row ID: ID__00RB134_ContPgHS;	-	7	Enquire
013	00RB168	SWIVEL CLIP - 4.3-5.2 - FEMALE	00RB168 SWIVEL CLIP - 4.3-5.2 - FEMALE Row ID: ID__00RB168_ContPgHS;	-	4	Enquire
014	00RB063	P CLIP - DIA 6 (M6)	00RB063 P CLIP - DIA 6 (M6) Row ID: ID__00RB063_ContPgHS;	-	8	Enquire
015	23CA012CP	PIPE-BRAKE-ABS MOD-HOSE-FR-RH - ABS MODULATOR TO BRAKE HOSE - FRONT - RH	23CA012CP PIPE-BRAKE-ABS MOD-HOSE-FR-RH - ABS MODULATOR TO BRAKE HOSE - FRONT - RH Row ID: ID__23CA012CP_ContPgHS;	-	1	Enquire
016	23CA013CP	PIPE-BRAKE-TMC-ABS MOD-PRIMARY - ABS MODULATOR - MASTER CYLINDER PRIMARY - LHD	23CA013CP PIPE-BRAKE-TMC-ABS MOD-PRIMARY - ABS MODULATOR - MASTER CYLINDER PRIMARY - LHD Row ID: ID__23CA013CP_ContPgHS;	-	1	Enquire
017	23CA026CP	PIPE-BRAKE-TMC-ABS MOD-SECONDR	23CA026CP PIPE-BRAKE-TMC-ABS MOD-SECONDR Row ID: ID__23CA026CP_ContPgHS;	-	1	Enquire
018	00RB043	CLIP-DOUBLE-DIA 6 24	00RB043 CLIP-DOUBLE-DIA 6 24 Row ID: ID__00RB043_ContPgHS;	-	3	Enquire
019	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS;	-	4	Enquire
020	15CA148CP	BRACKET - BRAKE HOSE TO BODY - FRONT - RH	15CA148CP BRACKET - BRAKE HOSE TO BODY - FRONT - RH Row ID: ID__15CA148CP_ContPgHS;	-	1	Enquire
021	15CA146CP	BRACKET - BRAKE HOSE TO BODY - FRONT - LH	15CA146CP BRACKET - BRAKE HOSE TO BODY - FRONT - LH Row ID: ID__15CA146CP_ContPgHS;	-	1	Enquire
022	23CA047CP	PIPE BRAKE ABS MOD HOSE RR-RH-	23CA047CP PIPE BRAKE ABS MOD HOSE RR-RH- Row ID: ID__23CA047CP_ContPgHS;	-	1	Enquire
023	00RA313	SCREW - M6X16 - HEX - SILVER	00RA313 SCREW - M6X16 - HEX - SILVER Row ID: ID__00RA313_ContPgHS;	-	4	Enquire
024	23CA103CP	PIPE-BRAKE-ABS MOD-HOSE-RR-LH-	23CA103CP PIPE-BRAKE-ABS MOD-HOSE-RR-LH- Row ID: ID__23CA103CP_ContPgHS;	-	1	Enquire
025	23CA102CP	PIPE-BRAKE-ABS MOD-HOSE-RR-RH-	23CA102CP PIPE-BRAKE-ABS MOD-HOSE-RR-RH- Row ID: ID__23CA102CP_ContPgHS;	-	1	Enquire
026	12C0294CP	CLIP - SPRING - HOSE BRACKET	12C0294CP CLIP - SPRING - HOSE BRACKET Row ID: ID__12C0294CP_ContPgHS;	-	2	Enquire
027	12C0296CP	WASHER - SPRING CLIP	12C0296CP WASHER - SPRING CLIP Row ID: ID__12C0296CP_ContPgHS;	-	2	Enquire
028	15CA167CP	BRAKE HOSE - FRONT	15CA167CP BRAKE HOSE - FRONT Row ID: ID__15CA167CP_ContPgHS;	-	2	Enquire
029	23CA045CP	PIPE-BRAKE-ABS MOD-HOSE-RR-LH-	23CA045CP PIPE-BRAKE-ABS MOD-HOSE-RR-LH- Row ID: ID__23CA045CP_ContPgHS;	-	1	Enquire
030	00RX001	BOLT - M5X16 - HEX	00RX001 BOLT - M5X16 - HEX Row ID: ID__00RX001_ContPgHS;	-	4	Enquire
031	14CA078CP	BRACKET - BRAKE PIPE - REAR - LH	14CA078CP BRACKET - BRAKE PIPE - REAR - LH Row ID: ID__14CA078CP_ContPgHS;	-	1	Enquire
032	14CA077CP	BRACKET - BRAKE PIPE - REAR - RH	14CA077CP BRACKET - BRAKE PIPE - REAR - RH Row ID: ID__14CA077CP_ContPgHS;	-	1	Enquire
033	13C0188CP	BRAKE HOSE - CARBON - REAR	13C0188CP BRAKE HOSE - CARBON - REAR Row ID: ID__13C0188CP_ContPgHS;	-	1	Enquire
