Soft-top 2

Find Your Part

Lamborghini Murcielago Roadster - Soft-top 2

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

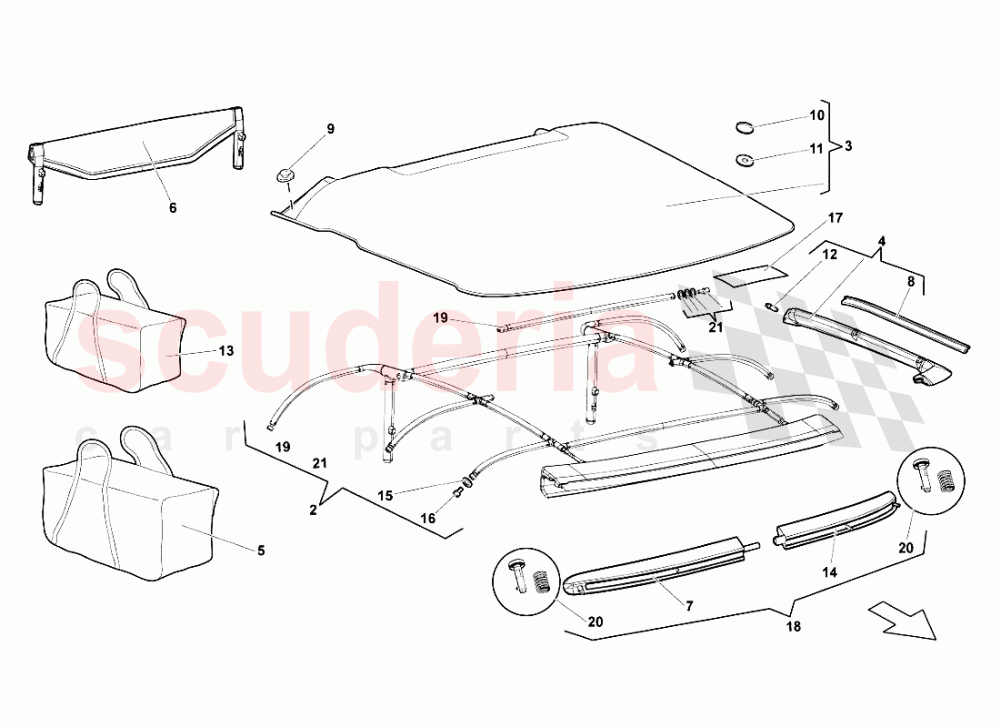

Soft-top 2 of Lamborghini Lamborghini Murcielago Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
002 417871423
SOFT-TOP FRAME ASSEMBLY 		$15,033.56 1
003 417871036005
SOFT-TOP FABRIC ASSEMBLY (BLACK) 		$4,254.03 1
004 417872300
SOFT-TOP RIGHT SIDE BAR ASSEMBLY 		$2,909.92 1
004 417872299
SOFT-TOP LEFT SIDE BAR ASSEMBLY 		$2,909.92 1
005 417871721
SOFT-TOP BAG 		$671.35 1
006 417862951A
WINDGUARD 		$1,868.29 1
008 417871416
RH GASKET 		$3,474.48 1
008 417871415
LH GASKET 		$3,474.48 1
009 417871873A
TENAX BUTTON 		$62.12 2
010 417872495
BUTTON CAP 		$2.23 (68.3% off) 6
011 417872496
BUTTON BASE 		$3.30 6
012 417872459
JOURNAL 		$438.19 2
013 417862965
SPOILER AND WINDGUARD BAG 		$671.35 1
015 417871279A
WASHER 		$11.83 6
016 410837549
RUBBER SUPPORT 		$244.64 6
017 417010534
SOFT TOP PLATE 		$90.20 1
018 417805571E
SPOILER 		$7,513.41 1
019 417871323
TIE ROD 		$2,372.29 1
020 417898447
JOURNALS KIT 		$841.39 1
021 417871330
BUSHING 		$324.59 1
