Lamborghini Murcielago Roadster - Windshield Wiper

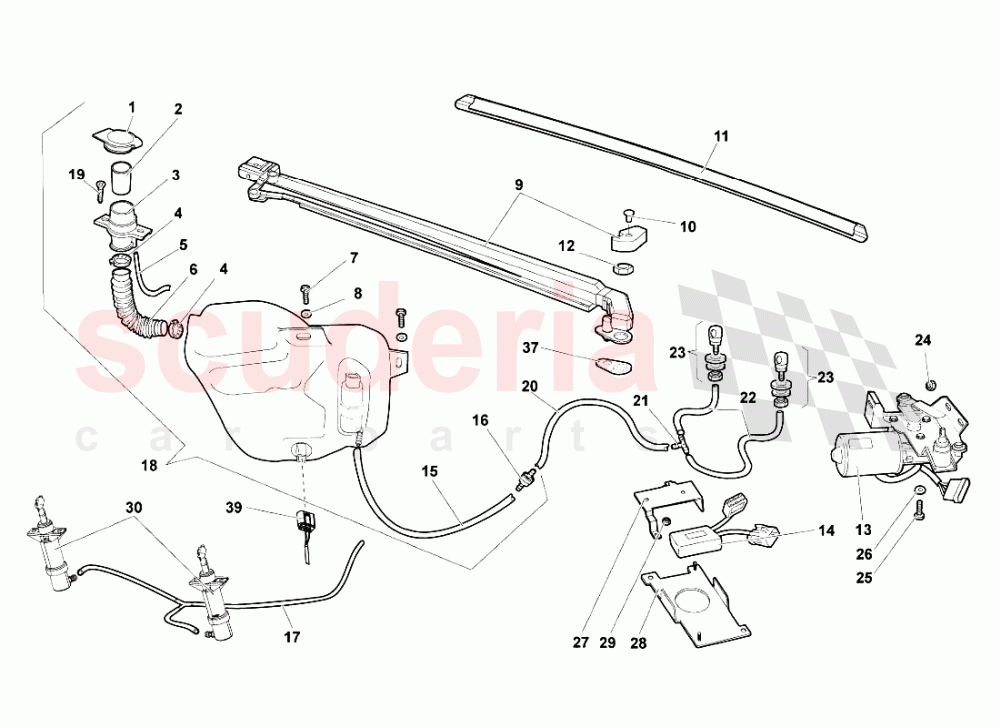

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	400955277	END CAP	400955277 END CAP	-	1	Enquire
002	71009515	FILTER	71009515 FILTER	-	1	Enquire
003	71009421	HEADLIGHT WIPER/WASHER RESERVOIR PLUG HOLDER	71009421 HEADLIGHT WIPER/WASHER RESERVOIR PLUG HOLDER	-	1	Enquire
004	400955973	HOSE CLAMP	400955973 HOSE CLAMP	-	1	Enquire
005	71009602	BREATHER PIPE	71009602 BREATHER PIPE	-	1	Enquire
006	400955944	PIPE	400955944 PIPE	-	1	Enquire
007	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT	-	1	Enquire
008	WHT002961	WASHER	WHT002961 WASHER	-	1	Enquire
009	417955703	WIPER ARM ASSEMBLY	417955703 WIPER ARM ASSEMBLY	-	1	Enquire
010	WHT003302	SCREW M4X6	WHT003302 SCREW M4X6	-	1	Enquire
012	WHT003571	NUT M8	WHT003571 NUT M8	-	1	Enquire
013	417955023B	LINKAGE GEARMOTOR ASSEMBLY	417955023B LINKAGE GEARMOTOR ASSEMBLY	-	1	Enquire
014	410906015	WINDSCREEN WIPER TIMER	410906015 WINDSCREEN WIPER TIMER	-	1	Enquire
015	71009603	PIPE	71009603 PIPE	-	1	Enquire
016	113955975C	VALVE	113955975C VALVE	-	1	Enquire
017	410955175	PIPES/CONNECTORS SET FOR HEADLIGHT WASHERS	410955175 PIPES/CONNECTORS SET FOR HEADLIGHT WASHERS	-	1	Enquire
018	400955448	WASHER RESERVOIR ASSEMBLY	400955448 WASHER RESERVOIR ASSEMBLY	-	1	Enquire
019	WHT003563	SCREW M6X14	WHT003563 SCREW M6X14	-	1	Enquire
020	410955972	PIPE	410955972 PIPE	-	1	Enquire
021	7L133579	T-PIECE	7L133579 T-PIECE	-	1	Enquire
022	410955963	PIPE	410955963 PIPE	-	2	Enquire
023	400955985	NOZZLE	400955985 NOZZLE	-	2	Enquire
024	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	2	Enquire
025	N90319404	SCREW	N90319404 SCREW	-	3	Enquire
026	WHT002961	WASHER	WHT002961 WASHER	-	3	Enquire
027	410955932	BRACKET	410955932 BRACKET	-	1	Enquire
028	410955931	BRACKET	410955931 BRACKET	-	1	Enquire
029	N90847903	Screw M6X15	N90847903 Screw M6X15	-	2	Enquire
037	413819687	COVER	413819687 COVER	-	1	Enquire
039	7M0973202	CONNECTOR (SEE TABLE 61.01.00 - SEE REF. 1)	7M0973202 CONNECTOR (SEE TABLE 61.01.00 - SEE REF. 1)	-	1	Enquire
