Rear Wheel And Hub Carrier of Lamborghini Lamborghini Murcielago Roadster

View All

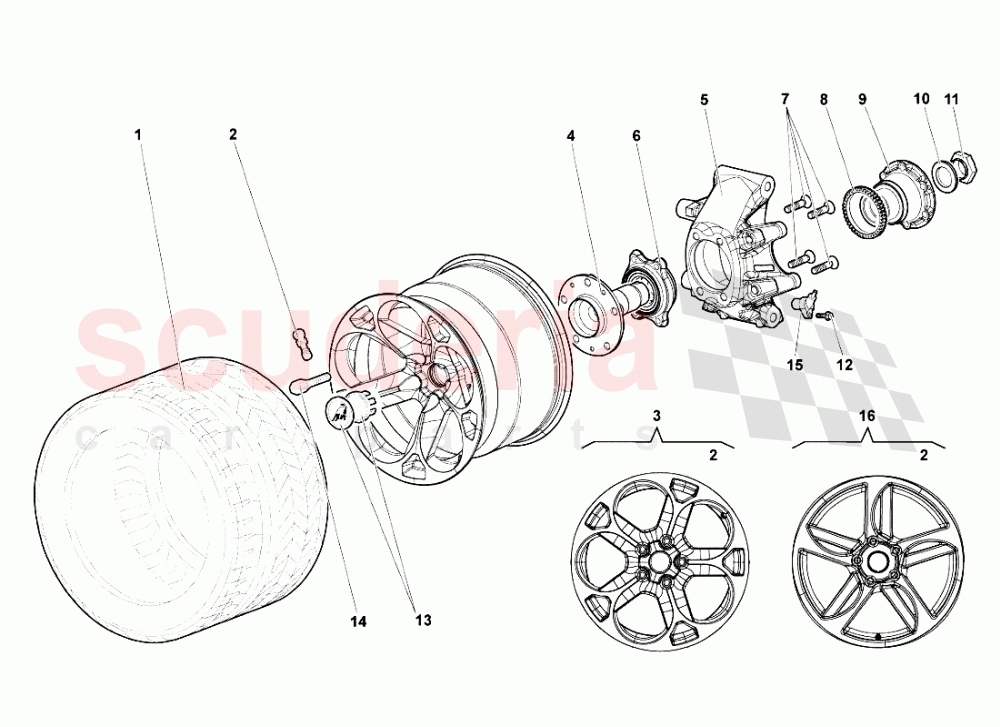

Lamborghini Murcielago Roadster - Rear Wheel And Hub Carrier

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	R1470014	SPORT TYRES (INCLUDES 2 FRONT TYRES + 1 LH REAR TYRE + 1 RH REAR TYRE)	R1470014 SPORT TYRES (INCLUDES 2 FRONT TYRES + 1 LH REAR TYRE + 1 RH REAR TYRE)	-	1	Enquire
001	R1470205	STANDARD TYRES (INCLUDES 2 REAR TYRE)	R1470205 STANDARD TYRES (INCLUDES 2 REAR TYRE)	-	1	Enquire
001	R1470207	SPORT TYRES (INCLUDES 1 LH REAR TYRE + 1 RH REAR TYRE)	R1470207 SPORT TYRES (INCLUDES 1 LH REAR TYRE + 1 RH REAR TYRE)	-	1	Enquire
001	R1470004	STANDARD TYRES (INCLUDES 2 FRONT TYRES + 2 REAR TYRE)	R1470004 STANDARD TYRES (INCLUDES 2 FRONT TYRES + 2 REAR TYRE)	-	1	Enquire
001	R1470209	WINTER TYRES (INCLUDES 2 REAR TYRE)	R1470209 WINTER TYRES (INCLUDES 2 REAR TYRE)	-	1	Enquire
001	R1470016	WINTER TYRES (INCLUDES 2 FRONT TYRES + 2 REAR TYRE)	R1470016 WINTER TYRES (INCLUDES 2 FRONT TYRES + 2 REAR TYRE)	-	1	Enquire
002	410601361	VALVE	410601361 VALVE	-	2	Enquire
003	410601017E	REAR WHEEL	410601017E REAR WHEEL	-	2	Enquire
003	410601017A	RIM (HERCULES STANDARD)	410601017A RIM (HERCULES STANDARD)	-	2	Enquire
004	410501653	HUB	410501653 HUB	-	2	Enquire
005	410505436	REAR RIGHT HUB CARRIER	410505436 REAR RIGHT HUB CARRIER	-	1	Enquire
005	410505436B	REAR RIGHT HUB CARRIER (CERAMIC BRAKE)	410505436B REAR RIGHT HUB CARRIER (CERAMIC BRAKE)	-	1	Enquire
005	410505435B	LEFT RIGHT HUB CARRIER (CERAMIC BRAKE)	410505435B LEFT RIGHT HUB CARRIER (CERAMIC BRAKE)	-	1	Enquire
005	410505435	REAR LEFT HUB CARRIER	410505435 REAR LEFT HUB CARRIER	-	1	Enquire
006	4E0407625F	DOUBLE (ANGLED) BALL BEARING WITH FLANGE	4E0407625F DOUBLE (ANGLED) BALL BEARING WITH FLANGE	-	2	Enquire
007	WHT000237	BALL SCREW	WHT000237 BALL SCREW	-	8	Enquire
008	410614150A	CROWN GEAR	410614150A CROWN GEAR	-	2	Enquire
009	410501655	FLANGE	410501655 FLANGE	-	2	Enquire
010	410501279	WASHER	410501279 WASHER	-	2	Enquire
011	410501226	RING NUT	410501226 RING NUT	-	2	Enquire
012	N10285602	SCREW	N10285602 SCREW	-	2	Enquire
013	400601147	Moulded Hub Cap Silver Print	400601147 Moulded Hub Cap Silver Print	-	2	Enquire
013	470601147B	WHEEL CENTRE CAP ARRIVING SOON	470601147B WHEEL CENTRE CAP ARRIVING SOON	-	2	Enquire
013	410601147	MOLDING AND HUP-CAP - COLORED (HERMERA)	410601147 MOLDING AND HUP-CAP - COLORED (HERMERA)	-	2	Enquire
014	WHT001161	STUD	WHT001161 STUD	-	10	Enquire
015	410927801A	ABS SENSOR	410927801A ABS SENSOR	-	2	Enquire
016	410601017P	REAR WHEEL (HERMERA SILVER)	410601017P REAR WHEEL (HERMERA SILVER)	-	2	Enquire
