Bumpers of Lamborghini Lamborghini Murcielago Roadster

View All

Lamborghini Murcielago Roadster - Bumpers

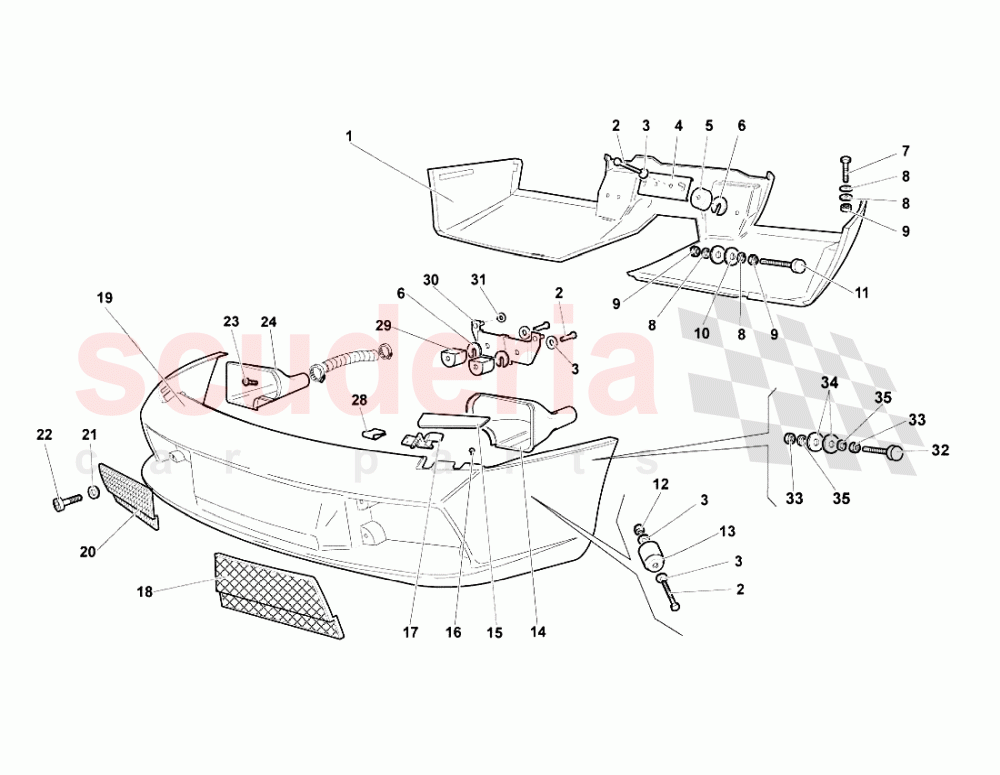

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	410807301	REAR BUMPER ASSEMBLY	410807301 REAR BUMPER ASSEMBLY	$27,096.70	1
002	8100861	SCREW M8X90 IN STOCK	8100861 SCREW M8X90 IN STOCK	$2.91	2
003	N90179103	WASHER 18X8,4X2,5 IN STOCK	N90179103 WASHER 18X8,4X2,5 IN STOCK	$1.55	4
004	410807331	REAR BUMPER FIXING BRACKET ASSEMBLY IN STOCK	410807331 REAR BUMPER FIXING BRACKET ASSEMBLY IN STOCK	$67.08	2
005	410807869	REAR BUMPER CENTRAL RUBBER	410807869 REAR BUMPER CENTRAL RUBBER	$257.40	4
006	410807567	5.0 MM SHIM	410807567 5.0 MM SHIM	$153.25	4
006	410807255	5.0 MM SHIM	410807255 5.0 MM SHIM	$153.25	4
007	N10430103	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N10430103 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$0.80 MSRP: ~~7.30~~ (89% off)	4
008	N0152785	WASHER IN STOCK	N0152785 WASHER IN STOCK	$0.40	4
009	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT IN STOCK	$1.89	6
010	WHT001942	WASHER IN STOCK	WHT001942 WASHER IN STOCK	$3.30	4
011	410807699	JOURNAL	410807699 JOURNAL	$90.87	2
012	8200804	NUT M8 IN STOCK	8200804 NUT M8 IN STOCK	$1.16 MSRP: ~~7.28~~ (84.1% off)	4
013	410807263A	FRONT BUMPER SIDE RUBBER	410807263A FRONT BUMPER SIDE RUBBER	$257.40	2
014	410807605	LEFT FRONT BRAKE AIR BUMPER CONVEYOR	410807605 LEFT FRONT BRAKE AIR BUMPER CONVEYOR	$1,260.75	1
015	410955275C	LEFT HEADLIGHT WASHER COVER LID	410955275C LEFT HEADLIGHT WASHER COVER LID	$2,634.41	1
015	410955276C	RIGHT HEADLIGHT WASHER COVER LID	410955276C RIGHT HEADLIGHT WASHER COVER LID	$2,634.41	1
016	410807895	PLUG	410807895 PLUG	$31.93	1
017	410955260	RIGHT HEADLIGHT WASHER LID HINGE ASSEMBLY	410955260 RIGHT HEADLIGHT WASHER LID HINGE ASSEMBLY	$1,017.48	1
017	410955259	LEFT HEADLIGHT WASHER LID HINGE ASSEMBLY	410955259 LEFT HEADLIGHT WASHER LID HINGE ASSEMBLY	$372.33	1
018	410807681	LEFT GRID	410807681 LEFT GRID	$662.62	1
019	410807103	FRONT BUMPER ASSEMBLY	410807103 FRONT BUMPER ASSEMBLY	$31,102.05	1
020	410807682	RIGHT GRID	410807682 RIGHT GRID	$662.62	1
021	N10663401	WASHER IN STOCK	N10663401 WASHER IN STOCK	$0.13 MSRP: ~~7.38~~ (98.2% off)	8
022	8700430	SCREW M4X16	8700430 SCREW M4X16	$0.16	8
023	WHT000766	SCREW 2,9X9,5	WHT000766 SCREW 2,9X9,5	$0.09	6
024	410807606	RIGHT FRONT BRAKE AIR BUMPER CONVEYOR	410807606 RIGHT FRONT BRAKE AIR BUMPER CONVEYOR	$1,208.35	1
028	410807794	SPRING	410807794 SPRING	$20.95	10
029	410807263	RUBBER BUFFER	410807263 RUBBER BUFFER	$272.19	4
030	410807133A	FRONT BUMPER FIXING BRACKET ASSEMBLY	410807133A FRONT BUMPER FIXING BRACKET ASSEMBLY	$1,223.13	2
031	410807047	WASHER IN STOCK	410807047 WASHER IN STOCK	$19.69	6
032	410807699	JOURNAL	410807699 JOURNAL	$90.87	2
033	N01100840	NUT M8 IN STOCK	N01100840 NUT M8 IN STOCK	$1.89 MSRP: ~~7.22~~ (73.8% off)	4
034	WHT001942	WASHER IN STOCK	WHT001942 WASHER IN STOCK	$3.30	4
035	N0152785	WASHER IN STOCK	N0152785 WASHER IN STOCK	$0.40	4
