Front Hood

Lamborghini Murcielago Roadster

Find Your Part

Lamborghini Murcielago Roadster - Front Hood

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

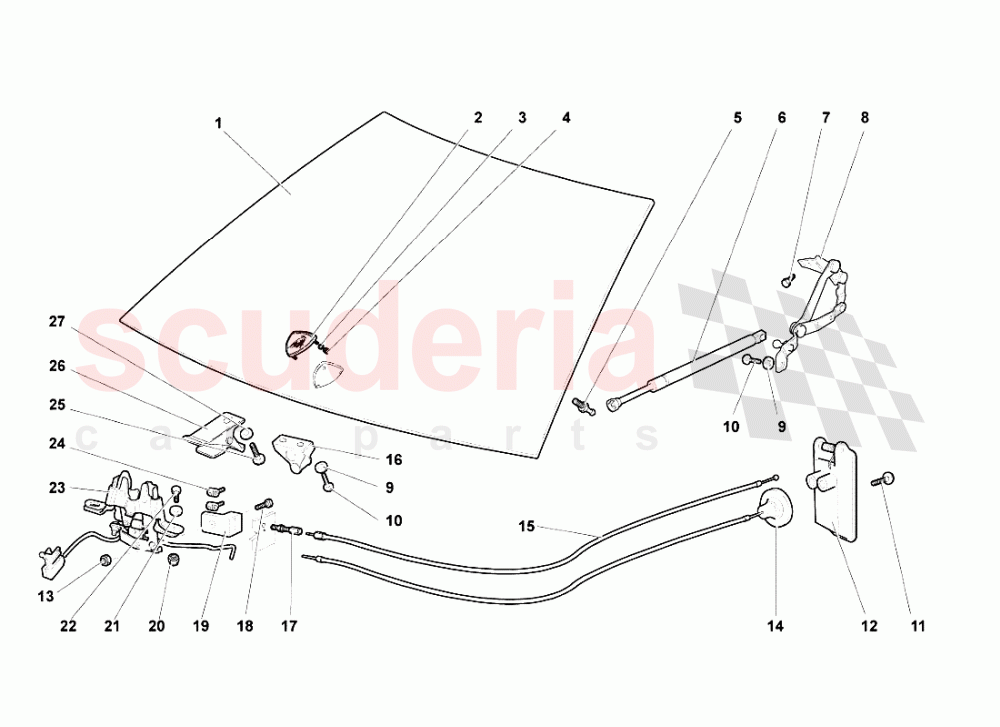

Front Hood of Lamborghini Lamborghini Murcielago Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 410823021
FRONT HOOD ASSEMBLY 		- 1 Enquire
002 400853745D
Lamborghini Badge 		- 1 Enquire
003 8410311
WASHER 		- 2 Enquire
004 8200301
NUT 		- 2 Enquire
005 895827439D
BALL STUD 		- 2 Enquire
006 400823359A
FRONT HOOD STRUT 		- 2 Enquire
007 N90319404
SCREW 		- 2 Enquire
008 410805384A
FRONT HOOD RIGHT HINGE ASSEMBLY 		- 1 Enquire
008 410805383A
FRONT HOOD LEFT HINGE ASSEMBLY 		- 1 Enquire
009 8400627
WASHER 		- 2 Enquire
010 8740685
SCREW 		- 2 Enquire
011 WHT001190
ROUND HD. SCREW 		- 1 Enquire
012 410823537
DOOR OPENING INTERIOR HANDLE ASSEMBLY 		- 1 Enquire
013 N0211963
NUT 		- 1 Enquire
014 410823535
EMERGENCY CABLE 		- 1 Enquire
015 410823530
FRONT HOOD OPENING CABLE ASSEMBLY 		- 1 Enquire
016 410823186
STRIKER PLATE ASSY 		- 1 Enquire
017 410827421
ADJUSTER SCREW 		- 1 Enquire
018 N01020717
SCREW M5X12 		- 1 Enquire
019 410814333
DOUBLE CLAMP 		- 1 Enquire
021 WHT002961
WASHER 		- 2 Enquire
022 8100623
SCREW 		- 2 Enquire
023 410827501B
LOCK 		- 1 Enquire
024 410805717A
CLAMP 		- 2 Enquire
025 N90319404
SCREW 		- 2 Enquire
026 410823183
REAR HOOD SAFETY CATCH BRACKET ASSEMBLY 		- 1 Enquire
027 WHT003407
WASHER 		- 1 Enquire
