Frame Elements

Lamborghini Murcielago Roadster

Find Your Part

Lamborghini Murcielago Roadster - Frame Elements

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

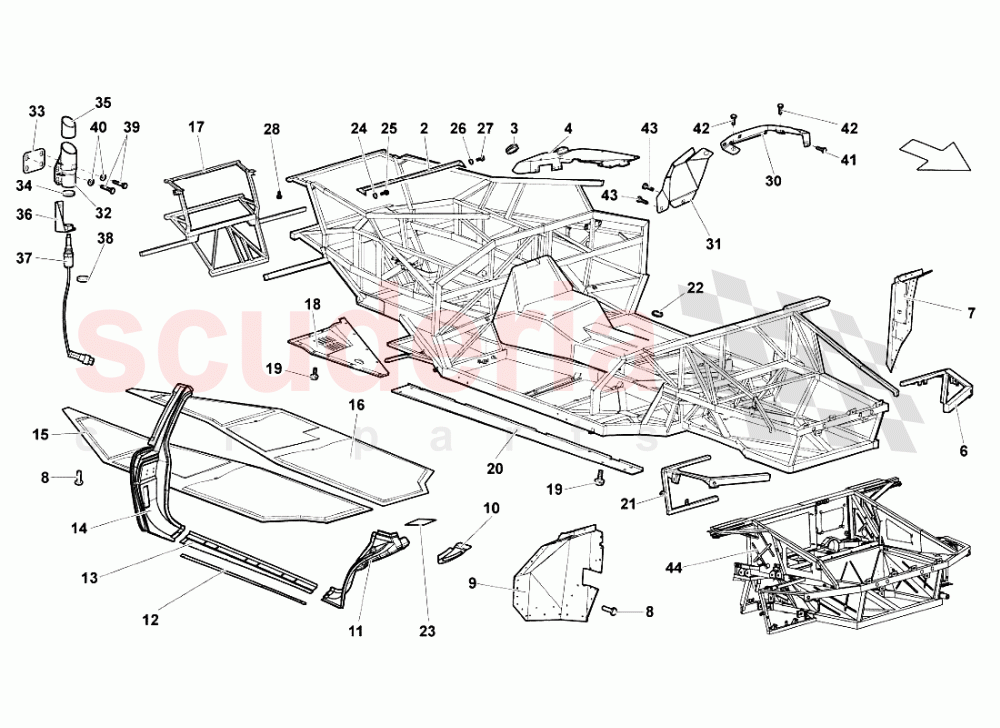

Frame Elements of Lamborghini Lamborghini Murcielago Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
002 410813528
CROSS MEMBER 		$752.69 1
003 8931810
PLUG 		$2.50 4
004 41009138
LH SHEET 		$309.15 1
004 41009139
RH SHEET 		$309.15 1
006 41013497
LEFT FRONT FRAME 		$1,134.41 1
007 417809153
LEFT FRONT WHEELARCH, REAR PART 		$12,896.47 1
008 410821316
RIVET 		$6.52 202
008 410821316
RIVET 		$6.52 66
009 417809154
RIGHT FRONT WHEELARCH, REAR PART 		$12,896.47 1
010 410809440
RIGID UPPER CONNECTION 		$106.07 1
010 410809439
RIGID UPPER CONNECTION 		$106.07 1
011 410805047
FRONT LEFT COVERING 		$2,768.84 1
011 410805048
FRONT RIGHT COVERING 		$2,768.84 1
012 410831166
OUTER LOWER RIGHT PROFILE 		$96.53 1
012 410831165
OUTER LOWER LEFT PROFILE 		$84.81 1
013 410801256
CENTER RIGHT COVERING 		$752.69 1
013 410801255
CENTER LEFT COVERING 		$752.69 1
014 417809225
REAR LEFT COVERING 		$732.53 1
014 417809226
REAR RIGHT COVERING 		$732.53 1
015 410825219
BOARD 		$7,486.55 1
016 410825220
BOARD 		$7,486.55 1
017 41013499
REAR FRAME 		$3,790.30 1
018 410825215
LEFT REAR SIDE MEMBER BOTTOM 		$1,145.15 1
018 410825216
RIGHT REAR SIDE MEMBER BOTTOM 		$1,720.43 1
019 WHT003069
SCREW M6X1X20 		$44.78 11
020 410825210
RIGHT FRONT SIDE MEMBER BOTTOM 		$1,377.68 1
020 410825211
LEFT FRONT SIDE MEMBER BOTTOM 		$1,377.68 1
021 41013498
RIGHT FRONT FRAME 		$1,134.41 1
022 410821801
PLUG 		$37.19 1
023 410837267
LID 		$567.23 2
024 N90840802
WASHER
IN STOCK 		$0.40 (94.5% off) 4
025 N01034518
SCREW M8X45
IN STOCK 		$6.00 4
026 N90179103
WASHER 18X8,4X2,5
IN STOCK 		$1.55 2
027 N0147519
SCREW M8X50 		$12.84 2
028 N01034512
SCREW M8X45 		$2.29 (67.3% off) 2
030 410810609
LH SHEET 		$108.35 1
030 410810610
RH SHEET 		$108.35 1
031 417803830
RH SHEET 		$112.52 1
031 417803829
LH SHEET 		$112.52 1
032 417871459
SUPPORT 		$431.44 2
033 417871279
SPACER 		$19.91 2
034 417813395
RUBBER BUFFER 		$1.74 (75.5% off) 1
035 417871180
BUSHING 		$82.80 1
036 417813763
SUPPORT 		$68.43 1
037 417959727
SWITCH 		$57.38 1
038 417813395A
RUBBER BUFFER 		$1.11 (84.6% off) 1
039 WHT001194
SCREW
IN STOCK 		$0.37 (95% off) 8
040 WHT001187
WASHER
IN STOCK 		$0.82 (88.7% off) 8
041 N90807405
HEX SOCKET OVAL HEAD COLLARED
IN STOCK 		$0.64 2
042 N90847903
Screw M6X15
IN STOCK 		$1.16 4
043 N90807405
HEX SOCKET OVAL HEAD COLLARED
IN STOCK 		$0.64 4
044 410898045
FRONT FRAME (SEE IDENTITY PLATE PROCEDURE) 		$23,514.73 1
