Lights of Lamborghini Lamborghini Murcielago Roadster

View All

Lamborghini Murcielago Roadster - Lights

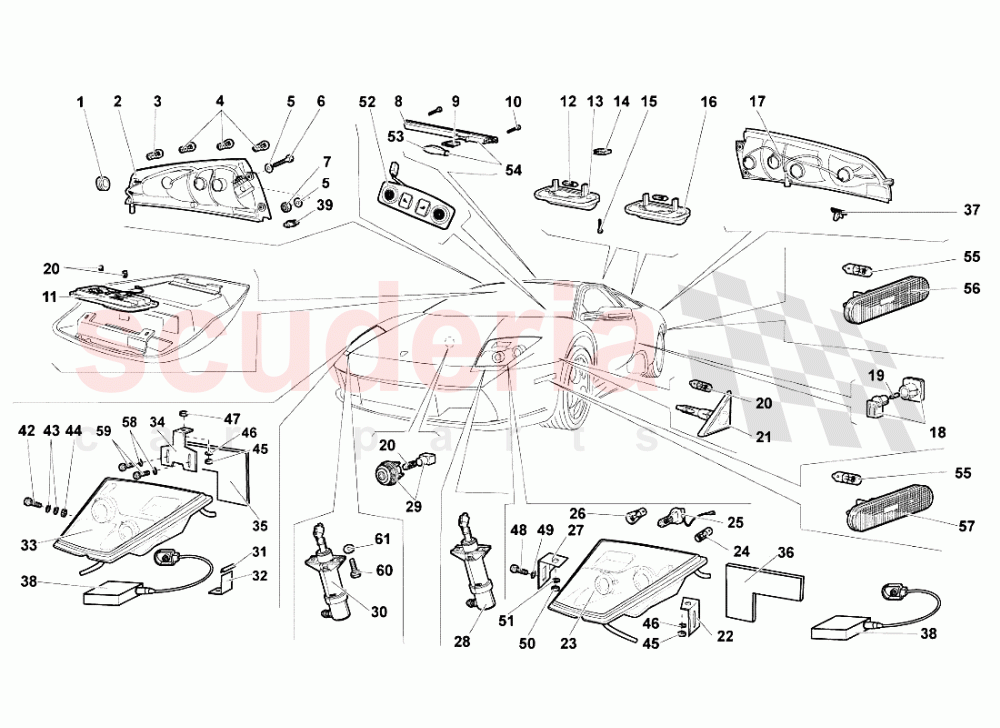

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400821190	GROMMET IN STOCK	400821190 GROMMET IN STOCK	$2.50	2
002	410945096A	RH REAR LAMP ASSEMBLY	410945096A RH REAR LAMP ASSEMBLY	$3,400.53	1
003	6617091	LAMP 15D 32220 5/21W	6617091 LAMP 15D 32220 5/21W	$11.66	2
004	6617094	LAMP BA 15S 21W	6617094 LAMP BA 15S 21W	$8.50	6
005	8400629	WASHER	8400629 WASHER	$1.44 MSRP: ~~7.11~~ (79.7% off)	8
006	WHT000757	SCREW IN STOCK	WHT000757 SCREW IN STOCK	$5.19	4
007	N02214812	HEXAGON NUT, SELF-LOCKING	N02214812 HEXAGON NUT, SELF-LOCKING	$1.96 MSRP: ~~7.29~~ (73.1% off)	4
008	4B9945097	HIGH-MOUNT BRAKE LIGHT	4B9945097 HIGH-MOUNT BRAKE LIGHT	$121.90	1
011	410947103	ROOF LAMP	410947103 ROOF LAMP	$155.26	1
012	6617095	LAMP SV8,5-8 5W	6617095 LAMP SV8,5-8 5W	$9.55	4
013	8N0943022A	RH License Plate Lamp IN STOCK	8N0943022A RH License Plate Lamp IN STOCK	$18.88	1
014	WHT003424	CLIP IN STOCK	WHT003424 CLIP IN STOCK	$0.89 MSRP: ~~7.25~~ (87.7% off)	4
015	WHT003065	SCREW (2,9X16) IN STOCK	WHT003065 SCREW (2,9X16) IN STOCK	$1.32 MSRP: ~~7.18~~ (81.6% off)	4
016	8N0943021A	LH License Plate Lamp IN STOCK	8N0943021A LH License Plate Lamp IN STOCK	$19.11	1
017	410945095A	LH REAR LAMP ASSEMBLY	410945095A LH REAR LAMP ASSEMBLY	$3,400.53	1
018	410947413	DOOR LAMP	410947413 DOOR LAMP	$86.44 MSRP: ~~126.50~~ (31.7% off)	2
020	N0177532	BULB	N0177532 BULB	$1.17 MSRP: ~~7.09~~ (83.5% off)	3
021	410953081	SIDE TURN INDICATOR LIGHT	410953081 SIDE TURN INDICATOR LIGHT	$317.21	2
022	410941058	RH BRACKET	410941058 RH BRACKET	$61.91	1
022	410941057	LH BRACKET IN STOCK	410941057 LH BRACKET IN STOCK	$61.91	1
023	413941031A	LH FRONT HEADLIGHT ASSEMBLY	413941031A LH FRONT HEADLIGHT ASSEMBLY	$19,368.23	1
024	N0177522	LAMP 12V/3W IN STOCK	N0177522 LAMP 12V/3W IN STOCK	$1.96 MSRP: ~~7.09~~ (72.4% off)	2
025	N10445703	LAMP 12V 35W P32D-2 IN STOCK	N10445703 LAMP 12V 35W P32D-2 IN STOCK	$172.46	2
026	N10445601	LAMP 12V 21W BAY9S IN STOCK	N10445601 LAMP 12V 21W BAY9S IN STOCK	$26.74	2
027	410941155	BRACKET	410941155 BRACKET	$114.52	2
028	410955985	LH HEADLIGHT WASHER ASSEMBLY	410955985 LH HEADLIGHT WASHER ASSEMBLY	$210.35	1
029	3B0947415B	LUGGAGE COMPARTMENT LAMP	3B0947415B LUGGAGE COMPARTMENT LAMP	$21.50	1
030	410955984	RH HEADLIGHT WASHER ASSEMBLY	410955984 RH HEADLIGHT WASHER ASSEMBLY	$208.35	1
031	410941119	GASKET	410941119 GASKET	$25.00	2
032	410941452	RH BRACKET	410941452 RH BRACKET	$32.20	2
032	410941451	LH BRACKET	410941451 LH BRACKET	$50.22	2
033	413941032A	RH FRONT HEADLIGHT ASSEMBLY	413941032A RH FRONT HEADLIGHT ASSEMBLY	$13,602.12	1
034	410941355	BRACKET	410941355 BRACKET	$88.86	2
035	410941982	RH PROTECTION	410941982 RH PROTECTION	$153.25	1
036	410941981	LH PROTECTION	410941981 LH PROTECTION	$39.33	1
037	410972672	SUPPORT	410972672 SUPPORT	$0.95 MSRP: ~~7.24~~ (86.9% off)	4
038	3B0941641	FRONT HEADLIGHT CONTROL UNIT	3B0941641 FRONT HEADLIGHT CONTROL UNIT	$1,592.73	2
039	410945247	PLUG	410945247 PLUG	$13.04	2
042	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT	$0.95	2
043	WHT002961	WASHER IN STOCK	WHT002961 WASHER IN STOCK	$0.42	4
044	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.21	2
045	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING IN STOCK	$2.04	4
046	WHT002961	WASHER IN STOCK	WHT002961 WASHER IN STOCK	$0.42	4
047	WHT003044	WASHER IN STOCK	WHT003044 WASHER IN STOCK	$8.62	4
048	N90319404	SCREW IN STOCK	N90319404 SCREW IN STOCK	$1.89	6
049	WHT002961	WASHER IN STOCK	WHT002961 WASHER IN STOCK	$0.42	2
050	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING IN STOCK	$2.04	4
051	WHT003044	WASHER IN STOCK	WHT003044 WASHER IN STOCK	$8.62	4
052	410947103	ROOF LAMP	410947103 ROOF LAMP	$155.26	1
053	410945090	PROTECTION	410945090 PROTECTION	$10.49	1
058	WHT002961	WASHER IN STOCK	WHT002961 WASHER IN STOCK	$0.42	4
060	WHT003069	SCREW M6X1X20	WHT003069 SCREW M6X1X20	$44.78	4
061	WHT002961	WASHER IN STOCK	WHT002961 WASHER IN STOCK	$0.42	4
