Front Body Elements

Lamborghini Murcielago Roadster

Find Your Part

Lamborghini Murcielago Roadster - Front Body Elements

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

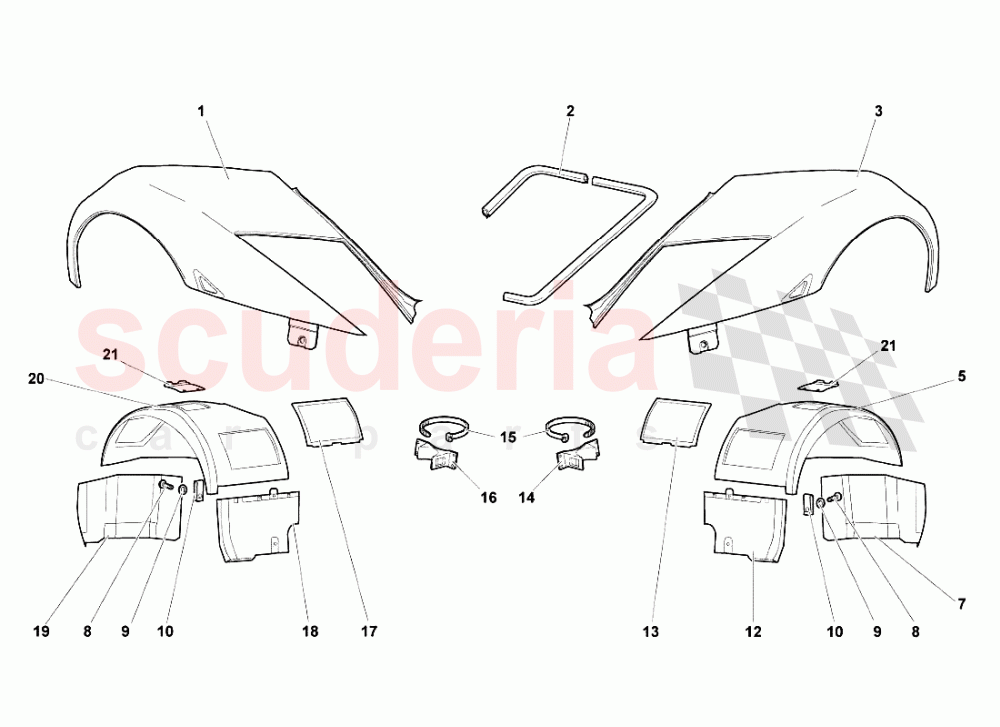

Front Body Elements of Lamborghini Lamborghini Murcielago Roadster Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 410821106A
RIGHT FRONT SIDE FENDER 		- 1 Enquire
002 410823723
GASKET 		- 1 Enquire
003 410821105A
LEFT FRONT SIDE FENDER 		- 1 Enquire
005 410821177
LEFT FRONT WHEEL ARCH, UPPER SIDE 		- 1 Enquire
007 410821171
LEFT FRONT WHEEL ARCH, REAR SIDE 		- 1 Enquire
008 WHT003066
SCREW 		- 4 Enquire
009 WHT003093
Washer 		- 32 Enquire
010 N90834301
CLIP NUT 		- 4 Enquire
012 410821191
LEFT FRONT WHEEL ARCH, FRONT SIDE 		- 1 Enquire
013 410821107
LEFT FRONT WHEELARCH CHECKING LID 		- 1 Enquire
014 410805889
LEFT SUPPORT 		- 1 Enquire
015 8830306
CLAMP 		- 1 Enquire
016 410805890
RIGHT SUPPORT 		- 1 Enquire
017 410821108
RIGHT FRONT WHEELARCH CHECKING LID 		- 1 Enquire
018 410821192
RIGHT FRONT WHEEL ARCH, FRONT SIDE 		- 1 Enquire
019 410821172
RIGHT FRONT WHEEL ARCH, REAR SIDE 		- 1 Enquire
020 410821178
RIGHT FRONT WHEELARCH, UPPER SIDE 		- 1 Enquire
021 410821111
FRONT WHEELARCH CHECKING LID 		- 2 Enquire
