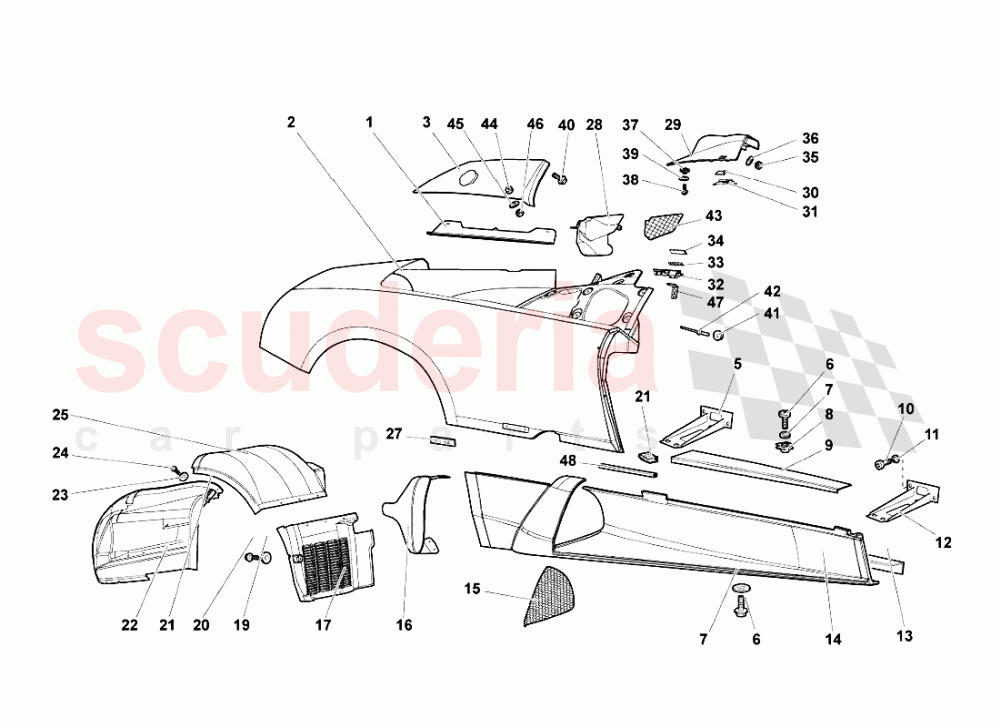

Lamborghini Murcielago Roadster - Body Elements - Right Side

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	417813920	CHANNEL	417813920 CHANNEL	$160.61	1
002	417821018A	RIGHT REAR FENDER ASSEMBLY	417821018A RIGHT REAR FENDER ASSEMBLY	$19,872.24	1
003	417809922	FENDER RH COVER AND FUEL LID	417809922 FENDER RH COVER AND FUEL LID	$13,447.54	1
005	410813549	BRACKET	410813549 BRACKET	$388.45	1
006	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT	$0.95	18
007	WHT002961	WASHER	WHT002961 WASHER	$0.42	18
008	WHT003673	CLIP	WHT003673 CLIP	$0.98 MSRP: ~~7.24~~ (86.5% off)	6
009	410853492A	SCUFF PLATE (CARBON INTERIOR - SUPPLY VIN)	410853492A SCUFF PLATE (CARBON INTERIOR - SUPPLY VIN)	$5,349.46	1
009	410853492	SCUFF PLATE	410853492 SCUFF PLATE	$1,478.49	1
010	WHT003101	SCREW	WHT003101 SCREW	$1.47 MSRP: ~~7.26~~ (79.8% off)	4
011	N01152427	WASHER	N01152427 WASHER	$0.28	4
012	410813550	Bracket	410813550 Bracket	$127.24	1
013	410857470	AERODYNAMIC RIGHT STRAP IRON	410857470 AERODYNAMIC RIGHT STRAP IRON	$231.85	1
014	410809036	RIGHT SIDE MEMBER ASSEMBLY	410809036 RIGHT SIDE MEMBER ASSEMBLY	$13,198.88	1
015	410864444	NET	410864444 NET	$2,056.46	1
016	410119017	ALTERNATOR AIR CONVEYOR	410119017 ALTERNATOR AIR CONVEYOR	$1,666.66	1
017	410810172	RIGHT REAR WHEELARCH, FRONT PART	410810172 RIGHT REAR WHEELARCH, FRONT PART	$1,043.00	1
019	WHT003093	Washer	WHT003093 Washer	$0.48 MSRP: ~~7.33~~ (93.5% off)	32
020	N90319404	SCREW	N90319404 SCREW	$1.89	19
021	N90834301	CLIP NUT	N90834301 CLIP NUT	$1.16	4
022	410810986	RIGHT REAR WHEELARCH, REAR PART	410810986 RIGHT REAR WHEELARCH, REAR PART	$602.16	1
023	N91109201	WASHER	N91109201 WASHER	$1.55 MSRP: ~~5.85~~ (73.5% off)	18
024	WHT003066	SCREW	WHT003066 SCREW	$13.97	4
025	410810982	RIGHT REAR WHEELARCH, CENTRAL PART	410810982 RIGHT REAR WHEELARCH, CENTRAL PART	$1,928.77	1
027	94013594	V12 6.2L PLATE	94013594 V12 6.2L PLATE	$428.77	1
028	417809964	RIGHT ENGINE AIR INTAKE DUCT	417809964 RIGHT ENGINE AIR INTAKE DUCT	$2,237.89	1
029	417813162	REAR RIGHT ENGINE COMPARTMENT UPHOLSTERY ASSEMBLY	417813162 REAR RIGHT ENGINE COMPARTMENT UPHOLSTERY ASSEMBLY	$8,158.58	1
030	66016807	ENGINE COMPARTMENT SLIDING FLAP	66016807 ENGINE COMPARTMENT SLIDING FLAP	$52.43	1
031	66016487	BRACKET	66016487 BRACKET	$41.02	1
032	417805968	CENTRAL ORNAMENT ON REAR SIDE OF SOFT-TOP	417805968 CENTRAL ORNAMENT ON REAR SIDE OF SOFT-TOP	$65.73	1
033	417809117	ORNAMENT FOR FENDER SLIDING FLAP	417809117 ORNAMENT FOR FENDER SLIDING FLAP	$63.77	1
034	417809967	FENDER SLIDING FLAP	417809967 FENDER SLIDING FLAP	$52.43	1
035	WHT000760	NUT M5	WHT000760 NUT M5	$0.13	3
036	N91109201	WASHER	N91109201 WASHER	$1.55 MSRP: ~~5.85~~ (73.5% off)	3
037	N90777701	CLIP	N90777701 CLIP	$0.42 MSRP: ~~7.33~~ (94.3% off)	1
038	WHT001190	ROUND HD. SCREW	WHT001190 ROUND HD. SCREW	$0.53	1
039	N10612001	WASHER	N10612001 WASHER	$0.48	1
040	N10430103	HEXAGON SOCKET FLAT HEAD BOLT	N10430103 HEXAGON SOCKET FLAT HEAD BOLT	$0.80 MSRP: ~~7.30~~ (89% off)	6
041	417863999	SNAP BUTTON	417863999 SNAP BUTTON	$1.19 MSRP: ~~7.20~~ (83.5% off)	2
042	N91094501	RIVET	N91094501 RIVET	$0.88 MSRP: ~~7.27~~ (87.9% off)	2
043	417853676	RIGHT GRID	417853676 RIGHT GRID	$146.51	1
044	418805416	SOFT-TOP CLIP	418805416 SOFT-TOP CLIP	$24.87	1
045	8400401	WASHER	8400401 WASHER	$0.13	1
046	N01100411	NUT	N01100411 NUT	$0.13 MSRP: ~~7.38~~ (98.2% off)	1
047	417809166A	BRACKET	417809166A BRACKET	$25.35	1
048	400853893	GASKET	400853893 GASKET	$8.62	1
