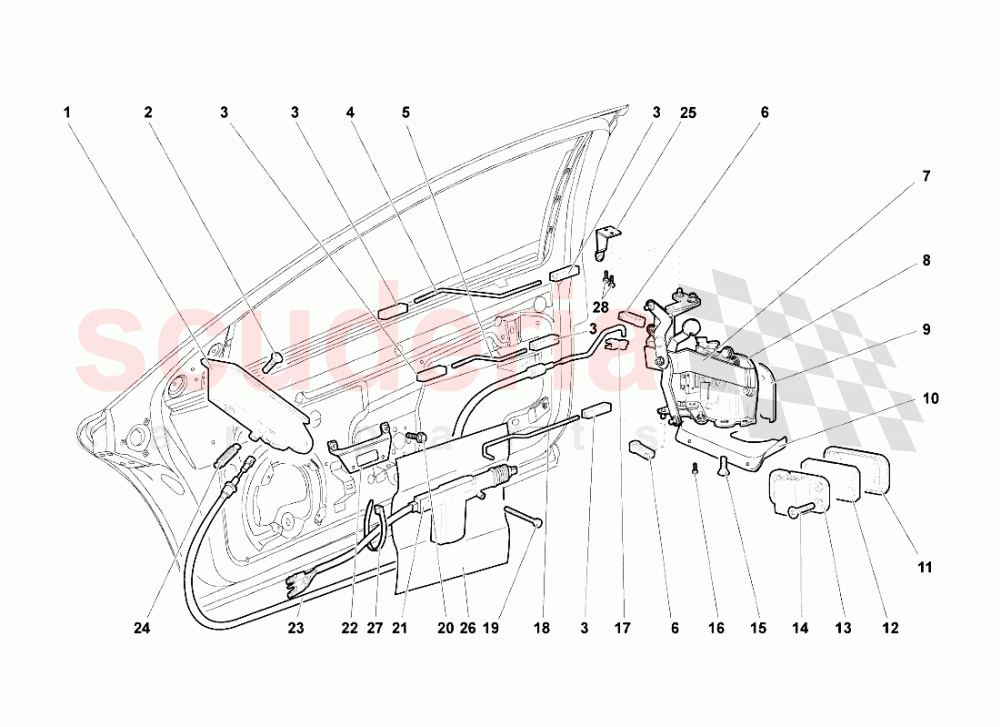

Lamborghini Murcielago Roadster - Doors 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	417837293	HANDLE	417837293 HANDLE	$2,446.24	2
002	WHT003091	SCREW	WHT003091 SCREW	$0.89 MSRP: ~~7.29~~ (87.8% off)	1
003	410837261	PAWL	410837261 PAWL	$3.37	5
004	410837238	TIE ROD	410837238 TIE ROD	$59.76	1
004	410837237	TIE ROD	410837237 TIE ROD	$59.76	1
005	410837511	TIE ROD	410837511 TIE ROD	$59.76	1
006	410837299	PAWL	410837299 PAWL	$16.95	2
007	410837162A	RIGHT LEVER SUPPORTING BRACKET ASSEMBLY	410837162A RIGHT LEVER SUPPORTING BRACKET ASSEMBLY	$387.11	1
007	410837161	LEFT LOCK LEVER SUPPORTING BRACKET ASSEMBLY	410837161 LEFT LOCK LEVER SUPPORTING BRACKET ASSEMBLY	$1,579.30	1
008	417837011A	LH LOCK	417837011A LH LOCK	$1,814.52	1
008	417837012A	RH LOCK	417837012A RH LOCK	$1,814.52	1
009	600940141	GASKET KIT (LH - RH)	600940141 GASKET KIT (LH - RH)	$192.52	1
010	410837901	LH ORNAMENT	410837901 LH ORNAMENT	$442.22	1
010	410837902	RH ORNAMENT	410837902 RH ORNAMENT	$442.22	1
011	410837899	ORNAMENT	410837899 ORNAMENT	$15.91	1
012	410837963	SPACER	410837963 SPACER	$16.19	2
012	410837964	SPACER	410837964 SPACER	$15.73	2
013	410831408A	Hinge Half Right hand	410831408A Hinge Half Right hand	$862.90	1
013	410831407A	Hinge Half Left Hand	410831407A Hinge Half Left Hand	$489.25	1
014	8700610	SCREW	8700610 SCREW	$0.67 MSRP: ~~7.29~~ (90.8% off)	4
015	WHT003068	COUNTERSUNK BOLT	WHT003068 COUNTERSUNK BOLT	$1.43 MSRP: ~~7.17~~ (80.1% off)	4
016	WHT003065	SCREW (2,9X16)	WHT003065 SCREW (2,9X16)	$1.32 MSRP: ~~7.18~~ (81.6% off)	4
017	410837230	SECURING ELEMENT	410837230 SECURING ELEMENT	$1.10 MSRP: ~~7.27~~ (84.9% off)	2
018	410837653	LEFT TIE ROD	410837653 LEFT TIE ROD	$59.76	1
018	410837654	RIGHT TIE ROD	410837654 RIGHT TIE ROD	$59.76	1
019	8700473	SCREW	8700473 SCREW	$0.16 MSRP: ~~7.37~~ (97.8% off)	2
020	N90319404	SCREW	N90319404 SCREW	$1.89	2
021	410837122	ACTUATOR	410837122 ACTUATOR	$1,024.19	2
022	410837467	BRACKET	410837467 BRACKET	$57.54	1
023	410837018	DOOR OPENING CABLE ASSEMBLY	410837018 DOOR OPENING CABLE ASSEMBLY	$126.20	1
024	410837724	RH SPRING	410837724 RH SPRING	$60.96	1
024	410837723	LH SPRING	410837723 LH SPRING	$60.96	1
025	410837226A	LEVER	410837226A LEVER	$680.13	2
026	410837909	PROTECTION	410837909 PROTECTION	$533.60	2
027	893971850C	CABLE TIES	893971850C CABLE TIES	$0.28 MSRP: ~~7.37~~ (96.2% off)	2
028	8700401	SCREW	8700401 SCREW	$0.28 MSRP: ~~7.34~~ (96.2% off)	4
